Product Details:
|
| Modulation: | FDD-COFDM 2K | RF Frequency: | 555MHz (can Be Customized 300-3300MHz) |
|---|---|---|---|
| RF Bandwidth: | 1/2/4/8MHz | RF Power: | 5W (37dBm) |
| Encryption: | AES | Weight: | 3kg |
| High Light: | 100km Digital Transmitter Receiver,80km Digital Transmitter Receiver,AES Data Link Drone |
||
80-100km LOS UAV Video Transmitter 5W Long Range Ethernet Radio Uplink Downlink
Description:

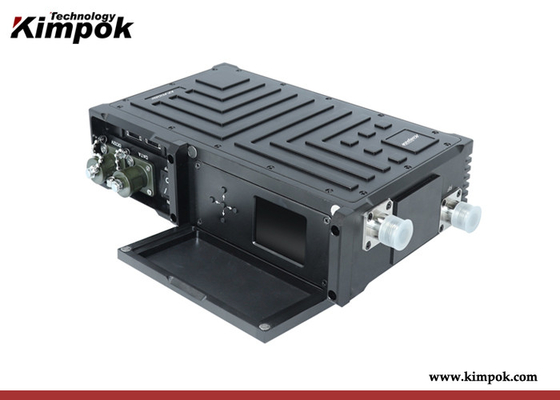

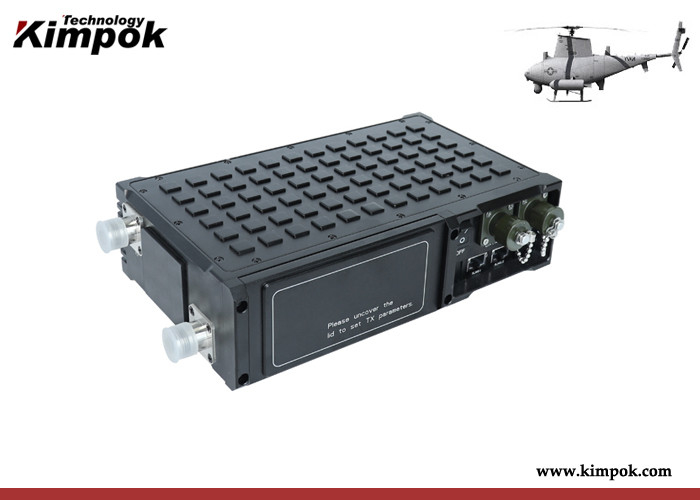

KP-FDD5W is a new COFDM modulation digital transmitter receiver integrated with using Frequency-division duplexing(FDD) technology,designed with dual -mode rf transceiver architecture and system
which operate at different carrier frequencies ideal for long range communication in network solution.
Implement of super narrowband (1MHz), low-latency and high-sensitivity capacity that is ideal for long-distance transmission and non-line-of-sight (NLOS) applications .With highly integrated embedded design, super-linear digital predistortion RF design and network,modulation and demodulation, full-band RF output All-in-One which help you complete the design of long-distance wireless links more conveniently and quickly.
It is mainly used for multi channel video transmission RS232 signals, unmanned control systems
with high standards, and intelligent control equipment wireless telecommunication.
◆ 5W RF power output
◆ Low latency and great data send from end to end
◆ Provides great transfer rate for uplink and downlink
◆ Transparent IP ethernet and serial data telecommunication in sync
◆ Dual frequency is ideal for IP solution long-distance required
◆ Dynamic AES encryption 128bits
◆ Narrowband 1M/2M/4M/8MHz available
◆ Work well in NLOS fast moving condition
◆ Bi-directional video/data wireless communication
◆ Small in size, lightweight and low consumption
◆ Easy operation and deployment
Specification:
|
Modulation
|
COFDM 2K
|
||
|
Working voltage
|
DC 11-14V
|
||
|
Working current
|
2.7A_12V
|
||
|
TX output frequency
|
555MHz (300-2500MHz selection)
|
||
|
RX input frequency
|
595MHz (300-2500MHz selection)
|
||
|
RF bandwidth
|
1/2/4/8MHz
|
||
|
Output power
|
5W
|
||
|
Encryption/decryption mode
|
AES128 bits
|
||
|
Transfer rate
|
2x30 Mbit/s uplink and downlink
|
||
|
RF connector
|
N-type *2
|
||
|
Ethernet
|
Standard RJ45 port *2
|
||
|
Serial port
|
RS232/RS485 serial port,115200bps maximum
|
||
|
LCD panel with keypad
|
Easy to set the related parameters
|
||
| Transmit distance |
80-100km from air to ground 2-5km NLOS / 5-10km LOS on ground station |
||
|
Dimension
|
200*130*60mm (Estimated value)
|
||
|
Weight
|
3kg
|
||
