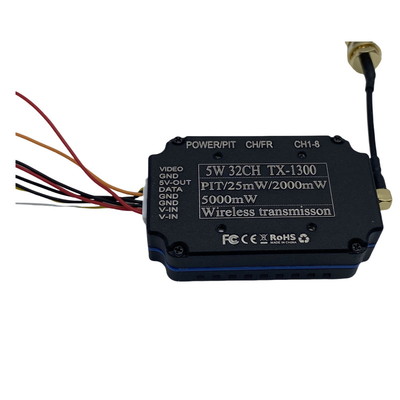

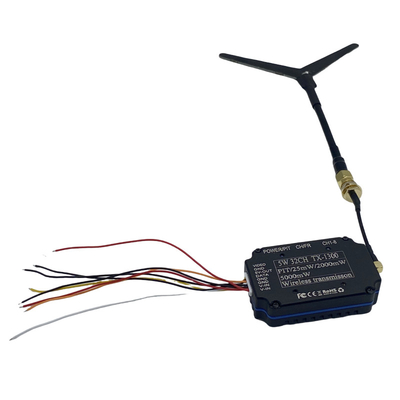

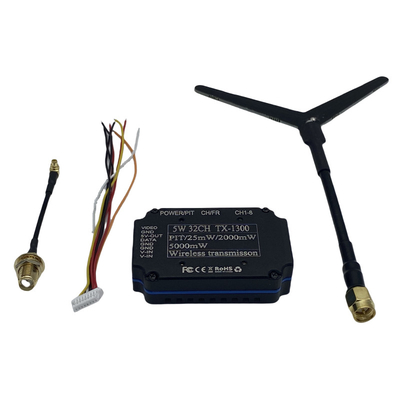

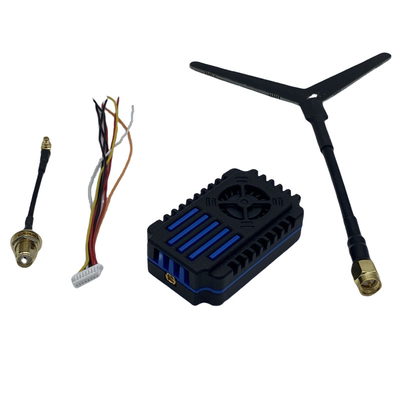

1.2G 1.3G 5W Wireless Video Transmitter 32CH FPV VTX 25mW 2000mW 5000mW Video Link

Compact Analog Video Transmitter 20~40km Drone Video Transmitter 4W

Parameter:

Input voltage: 7 - 36V DC (2 - 8S)
Frequency range: 1080 MHz - 1420 MHz

Output voltage: 5V / 0.6A
Power rating: Pit / 25mW / 1000 mW / 5000 mW
Control protocol: VTX (IRC Tramp)
Weight: 24.5g (without antenna)
Installation hole spacing: 20mm * 20mm (M2)
Size (length x width x height): 53.5mm * 32.5mm * 15.5mm
Video format: PAL/NTSC
Channel number: 32CH
Channel selection: Frequency band / frequency point adjustment buttons; long press for 2 seconds to switch frequency band, short press for 1 second to switch frequency point
Transmitting frequency: 32CH, see frequency point table
Power adjustment: Power adjustment button, short press for 1 second to switch
Antenna interface: MMCX
Modulation type: FM

I. 32 Channel frequency table

II. Press the CH/FR switch button for 1 second to switch the frequency band. The frequency band will cycle between CH1 - CH8. Press the CH/FR switch button for 2 seconds to switch the frequency group.

III. Use one button to adjust the power. Short press the switch button for 1 second to change the power. The power levels cycle between PIT, 25mW, 1000mW, and 5000mW. The LED status is as shown in the table below. Press the power button twice in succession to turn on or exit the Pit Mode; Press the power button for 5 seconds to enter the power lock state, and the power indicator light will go out.

Applications:

Support and Services:

Our Analog Video Transmitter product comes with comprehensive technical support and services to ensure seamless operation and maximum performance. Our team of experienced technicians is available to provide assistance and guidance with installation, configuration, and troubleshooting. We also offer regular software updates and maintenance services to keep your Analog Video Transmitter up to date and functioning optimally. Additionally, we provide training sessions to help you get the most out of your product and to ensure that you have the necessary knowledge and skills to operate it effectively. Our commitment to customer satisfaction means that we are always available to answer any questions or concerns that you may have regarding our Analog Video Transmitter product.

FAQ:

Here are some frequently asked questions and answers about the Analog Video Transmitter:

Q: What is the brand name of this Analog Video Transmitter?

A: The brand name of this Analog Video Transmitter is Kimpok Technology/OEM.

Q: What is the model number of this Analog Video Transmitter?

A: The model number of this Analog Video Transmitter is KP-T1350.

Q: What certifications does this Analog Video Transmitter have?

A: This Analog Video Transmitter has CE/ROHS/FCC/SGS certifications.

Q: Where is this Analog Video Transmitter manufactured?

A: This Analog Video Transmitter is manufactured in China.

Q: What is the minimum order quantity for this Analog Video Transmitter?

A: The minimum order quantity for this Analog Video Transmitter is 1 Piece.

Q: What is the price of this Analog Video Transmitter?

A: The price of this Analog Video Transmitter is negotiable.

Q: What are the payment terms for this Analog Video Transmitter?

A: The payment terms for this Analog Video Transmitter are T/T, PayPal or western Union.

Q: What is the supply ability of this Analog Video Transmitter?

A: The supply ability of this Analog Video Transmitter is 3,000pcs per month.

Q: What is the delivery time for this Analog Video Transmitter?

A: The delivery time for this Analog Video Transmitter is 3-7 days.

Q: What are the packaging details for this Analog Video Transmitter?

A: The packaging details for this Analog Video Transmitter are export standard packing.
