Product Details:
|
| Product Name: | COFDM Video Transmitter Mainboard | Modulation: | COFDM 2K |
|---|---|---|---|
| Bandwidth: | 6M/8MHz (adjustable) | Video Compression: | AES 128/256 Bits |
| Video Encoding:: | H.264/H.265 | Latency: | 60-100ms |
| Highlight: | Video Transmitter COFDM Module,CVBS Inputs COFDM Module,COFDM Transmitter Receiver Module |
||

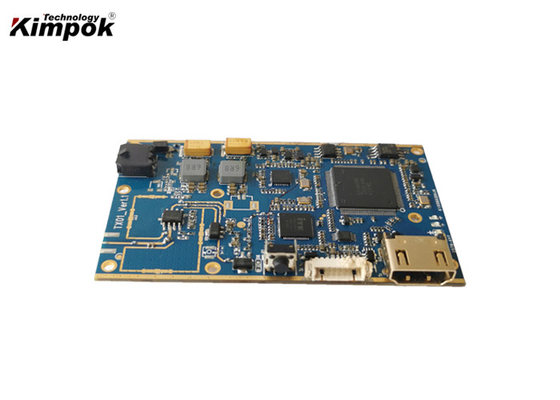

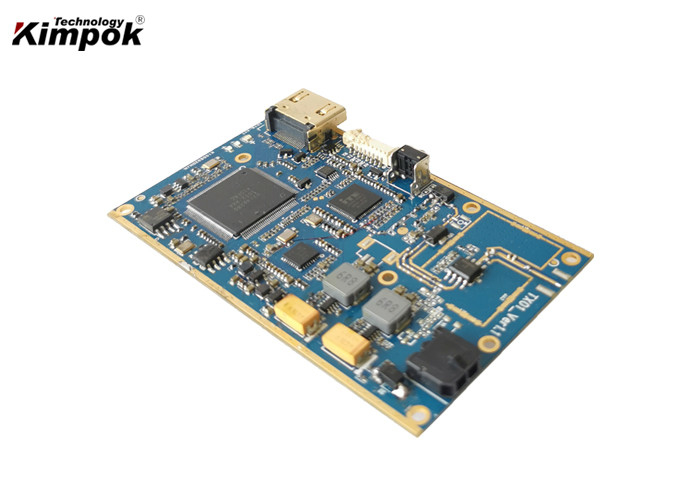

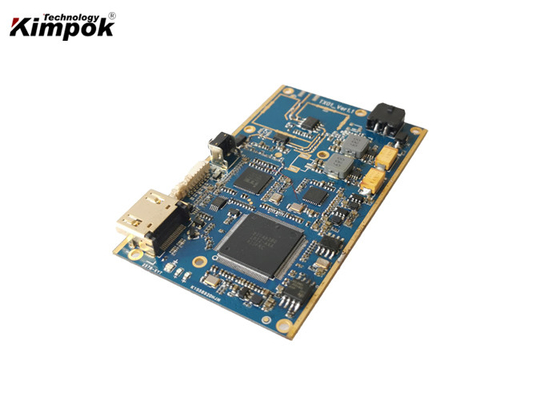

HD Wireless Video Transmitter OEM Mainboard HDMI & CVBS Inputs 8MHz Bandwidth
Features HDMI video transmitter mainboard:
■ HDMI and CVBS dual video inputs
■ 1080p@30fps
■ 200MHz~2.7GHz wide range frequency
■ 60-100ms low system latency
■ H.265/H.264 encoding
■ AES 128/256 encryption
■ Mini size and light weight
Specification:
| Transmission Characteristics | |
| Modulation Type | QPSK(4QAM), 16QAM, 64QAM |
| Frequency | 200MHz-2.7GHz |
| Output Power | -15dBm (adjustable) |
| RF Bandwidth | 2/4/6/8MHz |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
| Data Characteristics | |
| Video Input |
HDMI: 1080p/1080i/720p/720i @60/50/30/25/24fps (self-adaption) AV: 720x480/60i (NTSC), 720x576/50i (PAL) (self-adaption) |
| Encoding | H.265/H.264 |
| RF Interface | IPEX Female |
| Parameter Control | Using the USB programmer |
| Encryption | AES256 (User defined password) |
| Electrical Characteristics | |
| Working Voltage | DC 7V-24V |
| Working Current | ≤0.19A (@12V) |
| Power Consumption | 2.28W |
| Physical Characteristics | |
| Weight | 31g |
| Dimensions | 70x45x1.2mm |
| Working Temp. | -20℃ ~ +70℃ |
