Product Details:
|
| Product Name: | FPV Video Transmitter | Number Of Channels: | 8 Channels |
|---|---|---|---|
| Transmit Power: | 8 Watt | Frequency: | 1.2GHz; 1.3Ghz |
| System: | PAL/NTSC | Transmit Distance: | 40km LOS From Air To Ground |
| High Light: | CCTV Wireless Video Transmitter And Receiver,FCC Analog Video Transmitter,700mA Analog Video Transmitter |
||

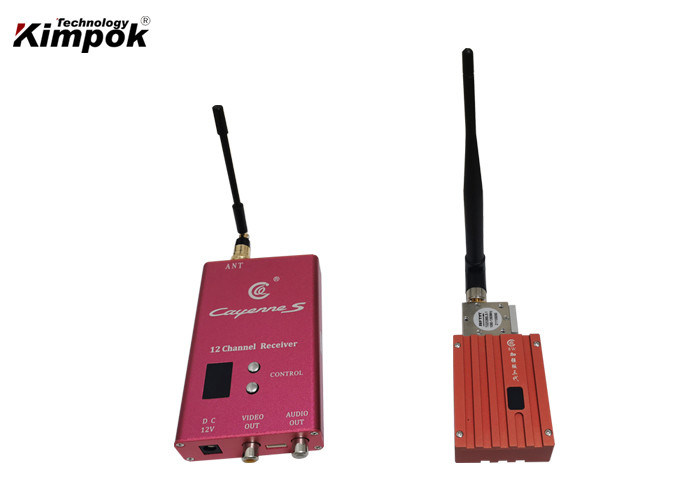

1.2GHz Wireless Video Transmitter and Receiver with 8 Watt Power Amplifier
Drones Wireless Video Transmitter Description:
KP-A8H is an excellent performance long range wireless video transmission equipment, its large power margin, more suitable for complex physical environment. The use of 2dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 20~30km LOS or so, if the raising of the high gain directional antenna, increased to 40km away (if the working environment is Non-line-of-sight, transmission distance is case by case). And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.
It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.
Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.
Specification:
|
Voltage |
DC 12V |
|
Current |
700mA |
|
Frequency |
1.2GHz, 1.3GHz |
|
Number of channels |
8 channels |
| Frequency Bands | 1.080Ghz; 1.120Ghz; 1.160Ghz; 1.200Ghz; 1.240Ghz; 1.280Ghz; 1.340Mhz; 1.380Mhz |
|
Transmit Power |
8000mW |
|
Video Output |
1 Vp-p(FM) |
|
Audio Output |
1 Vp-p(FM) |
|
Audio Carrier Ware |
5.5M 6.0M |
|
Distance |
10~15km LOS, 3km NLOS on ground |
|
Overall Configuration |
Transmitter, receiver, AV cable, antenna |
|
Temperature |
-10℃ ~ +50℃ |
|
Transmitter Weight |
200g |
|
Receiver Weight |
120g |
|
Dimensions (L * W * H) |
Transmitter:95*50*20mm. Receiver:116*80*21mm |
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
