Product Details:
|
| Product Name: | Long Range UAV Video Transmitter | RF Power: | 5~20 Watt (adjustable) |
|---|---|---|---|
| Power: | 12V DC | Encryption: | AES 128/256 Bits |
| Frequency: | 300MHz~900MHz (adjustable) | Video Input: | HD-MI/SDI/CVBS |
| High Light: | HD COFDM UAV Video Transmitter,AES Encryption UAV Video Transmitter,150km UAV Long Range Video Transmitter |
||

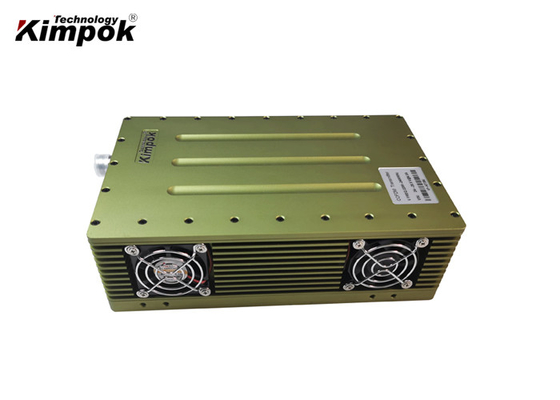

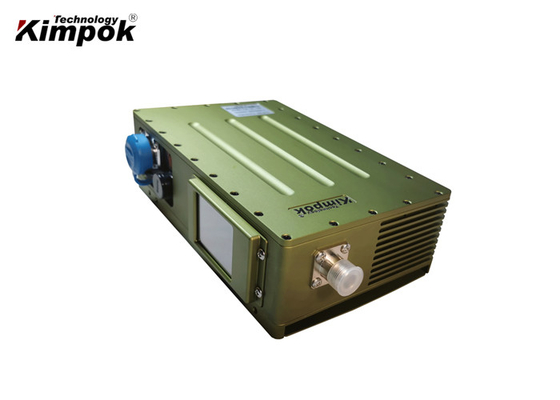

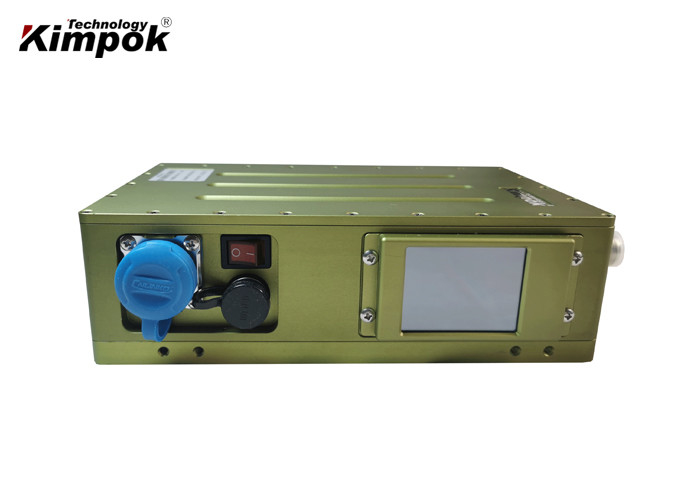

150km LOS HD COFDM UAV Video Transmitter with AES Encryption H.265
Description:
KP-HDT20WG is a long range COFDM wireless drone transmitter designed from Kimpok Technology, it's adopts the latest COFDM modulation and narrow bandwidth at its core, which is enable to transmit full HD video quality in fast moving and NLOS (non-line-of-sight) environment.
With 15~20 Watt adjustable high RF power, KP-HDT20WG can easily to transmit 10~15km NLOS long distance wireless video and 1920*1080P high definition broadcast quality image in urban area; and 100km~150km LOS from air to ground.
The RF power, frequency, video input, and the housing of the KP-HDT20WG COFDM video transmitter all can be designed and customized based on user's application and requirement.
Feature:
Parameters:
| Modulation | CODFM |
| DC input | DC12V-DC14V |
| Working Current | ≤4.7A@DC12V |
| Constellation | QPSK,16QAM,64QAM (optional) |
| FEC | 1/2,2/3,3/4,5/6,7/8 (optional) |
| Carrier | 2K |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Frequency | 300MHz-900MHz; 1GHz-2.7GHz customized (50Mhz per interval as a frequency band) |
| RF power output | 5~20W (adjustable) |
| A/V interface | RCA |
| RF interface | N type |
| Flatness | ≤2dB(within full frequency range), ≤0.5dB(within 8MHz) |
| Video Harmonic | 1Vp-p @ 75Ω, NTSC/PAL adaptive |
| CBER | <2.0E-4 |
| Video Compression | H.265/H.264/MPEG-4 |
| Resolution | 1080P/720P |
| Video Rate | 6Mbps |
| Work environment | -30~70° |
| Dimension | 220*140*80mm |
| Weight | 2.3kg |
Application:
The product is widely used in vehicle, racing, police patrol, maritime, ect. Transmitting full HD mobile video audio long range wireless communication.
About Kimpok Technology:
Kimpok technology found 1998, specialized in high quality of COFDM mobile video wireless communication, for application of Law enforcement and military, Public Security Bureaus, R/C helicopter, UAV, UGV, Automobiles, Forest Fire Prevention Departments, Maritime Bureaus, Oil Field, Construction Sites, Tunnels, and so on.
The transmitter and receiver are with Anti-jamming, high quality image, long range transmission distance, and have a highly appraise in this area. Company’s developing and long-term programming is the key way for leading us to be the leader at this area, we always believe we can do it. We will continually concentrate on researching and innovating in the wireless microwave transmission industry.
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
