Product Details:
|
| Type: | Digital Transmitter | Voltage: | DC 12V |
|---|---|---|---|
| RF Output Power: | 5 Watt | Modulation: | COFDM 2K |
| Transmit Distance: | 3km Max NLOS (manpack); 100km Max LOS (on Helicopter) | Weight: | 1362g |
| High Light: | 100km COFDM UAV Video Transmitter,UAV Video Transmitter With 5W Amplifier,100km COFDM Video Transmitter |
||

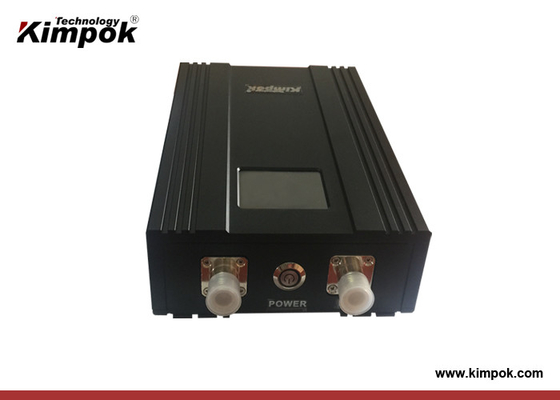

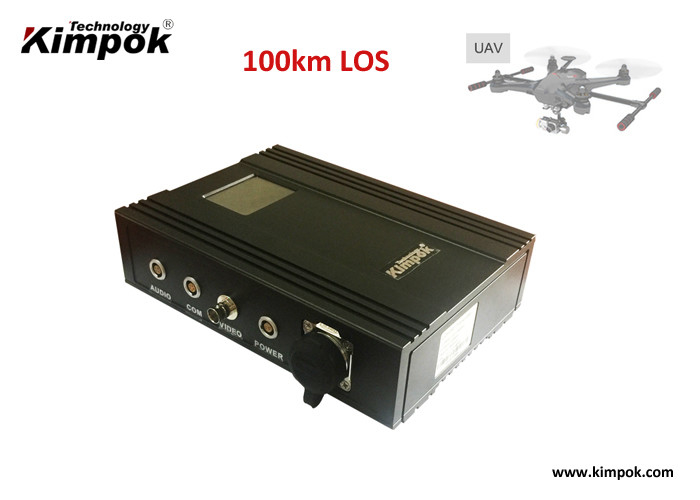

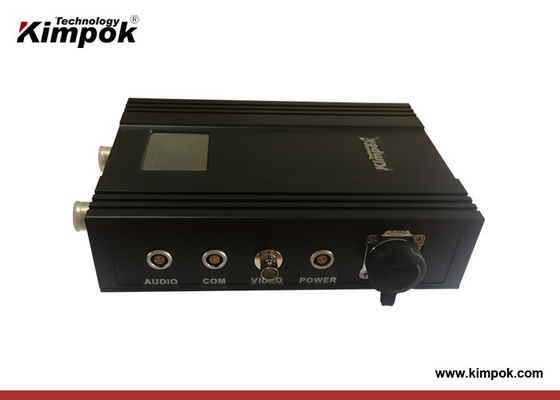

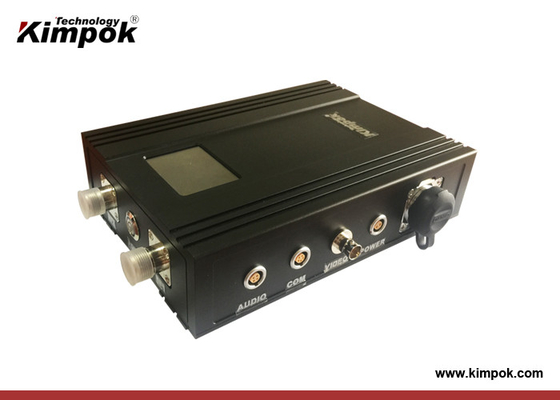

100km COFDM UAV Video Transmitter with 5 Watt Power Amplifiter AES Wireless Sender
Description:
Such new design 1080P HD transmitter is a powerful HD transmit system,using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment.Support full HD 1080P H.264 encoding format and HDMI/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.
This special designed system is for UAV long range distance transmission , it is also popular to use in other fields for live broadcast video audio transmission.
Features:
● COFDM modulation technology ensure the stability of signal
● Low latency
● Built-in with HD and BNC ports;
● Provide AES128 encryption for video safety.
● 2-5W rf power adjustable
● Support FULL HD quality,1080i/P@30fps;
● It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz.;
● With four holes at the bottom of the transmitter for fixed installation
● Widely used in helicopter shooting, Live broadcast and etc…
Transmitter parameter:
| Modulate | COFDM |
| Working voltage | DC12V |
| Working current | ≤6A@DC12V |
| RF bandwidth | 2/4/6/8MHz (adjustable) |
| Frequency | 300-900Mhz or other frequency customized |
| Output power | 2-5W adjustable |
| Video input | HDMI/SDI; CVBS |
| Data input (option) | RS232/TTL, up to 115200bps |
| Video resolution | 1920*1080P/I@60fps; 1280*720P/I@60fps |
| Video coding | MPEG-2/H.264/H265 |
| Video rate | 512Kbps-16Mbps (adjustable) |
| Encryption | AES 128 bits |
| AV input | 1Vp-p, 75Ω. Left and right channel |
| Video system | PAL/NTSC |
| Power flatness | Full band ≤1.5dB |
| CNR | ≥25dBc@48dBm |
| Second harmonic | ≥60dBc |
| CBER | <2.0E-4 |
| VBER | <1.0E-7 |
| MER | 32dB |
| Carrier | 2k 4k 8k |
| Constellation | QPSK,16QAM,64QAM (option) |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 (option) |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 (option) |
| Working Temperature | -25°C~55°C |
| Dimension | 220*150*60mm |
| Weight | 1362g |
Rack-mounted COFDM Wireless Receiver:
Receiver parameter:
| Frequency | 300-900Mhz (option) or other frequency customized |
| Bandwidth | 2/3/4/5/6/7/8MHz (option) |
| RF input level | -94dBm~0dBm(8M)/-98dBm~0dBm(2M) |
| RF input impedance | 50Ω |
| RF input type | N type |
| Modulation | COFDM |
| Constellation | QPSK,16QAM,64QAM(adjustable) |
| FEC | 1/2,2/3,3/4,5/6,7/8(adjustable) |
| Carrier | 2k |
| Guard Interval | 1/32,1/16,1/8,1/4(adjustable) |
| Video coding | MPEG-2/H.265 |
| Screen | 4:3 16:9 |
| Video resolution | 1920*1080P/I@4Mhz |
| Audio output | Stereo unbalance 300/ 200mv |
| AV output | 2 Audio output + 2 Video output; SDI |
| Working voltage | AC220V/DC12V ＜1A |
| working temperature | -20℃～+50℃ |
| Dimension | 483*300*44mm |
| Weight | 2kg |
Application:
The product widely used in UAV, vehicle, racing, police patrol, boat and ect.. full hd video image long range video audio wireless communication.
