UAV COFDM Video Transmitter Wireless With 2W Lower Latency 50km Transmit distance

UAV COFDM Video Transmitter Wireless With 2W Lower Latency 50km Transmit distance
UAV COFDM Video Transmitter Wireless With 2W Lower Latency 50km Transmit distance UAV COFDM Video Transmitter Wireless With 2W Lower Latency 50km Transmit distance UAV COFDM Video Transmitter Wireless With 2W Lower Latency 50km Transmit distance UAV COFDM Video Transmitter Wireless With 2W Lower Latency 50km Transmit distance

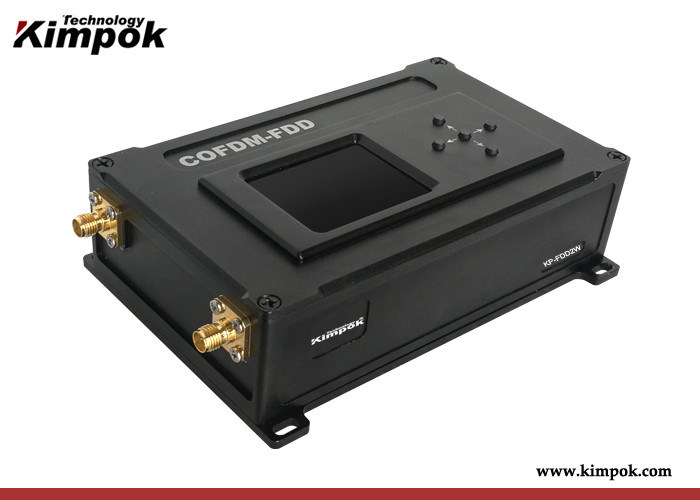

Large Image :  UAV COFDM Video Transmitter Wireless With 2W Lower Latency 50km Transmit distance

Product Details:
Place of Origin: China
Brand Name: Kimpok Technology
Certification: CE, FCC
Model Number: KP-FDD2W
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: International standard package
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 1000 sets per month

UAV COFDM Video Transmitter Wireless With 2W Lower Latency 50km Transmit distance

Description
Modulation: COFDM-FDD RF Power: 2 Watt
Video Output: RJ45 Data Output: RS232/RS485
Baud Rate: 115200bps Maximum Weight: 527g
Highlight:

2W COFDM Video Transmitter

,

Wireless COFDM Video Transmitter

,

50km COFDM Wireless Transmitter

50km Wireless UAV Video Transmitter with 2W COFDM Ethernet Transceiver Lower Latency

Description:
KP-FDD2W model is a lightweight COFDM modulation Network IP radios with 2W RF power output.
FDD is a new type of full duplx communication technology used in mobile communication systems, uses two separate channels for uplink and downlink transmission. As its lightweight and small size that meets various drones and robotic required for robust long range video and data control over IP camcorder or Computer connection.
Feature:


  • Great transfer rate for uplink and downlink
  • COFDM modulation, FDD technology
  • Transparent IP Ethernet and serial data sync telecommunication
  • Dual frequency is ideal for IP solution need long-distance communication
  • Dynamic AES encryption 128bits
  • RF Narrowband 1/2/4/8MHz available
  • Work well in NLOS fast moving condition
  • Integrated design, super linear
  • Small in size, lightweight and low consumption
  • Easy deployment, Simple operation


Specifications:


Power supplyDC12V/1.5A
TX output frequency555MHz (can be customized 300-3300MHz),step in 1MHz
RX output frequency595MHz (can be customized 300-3300MHz),step in 1MHz
RF bandwidth1/2/4/8MHz
RF power output33dBm / 2W
Encryption/decryption modeAES128 bits(user-defined password)
ModulationCOFDM 2K
Transfer rate2x30 Mbit/s uplink and downlink
RF connectorSMA type *2
EthernetStandard RJ45 port *2
Serial portRS232 serial port
Baud rate115200bps maximum
Two way audioAviation plug
LCD panel with keypadEasy to set the related parameters
Dimension131x92x39mm
Weight527g
Transmit distanceup to 50km from Drones to ground station
2km NLOS for ground level communication























up to 50km Wireless COFDM Video Transmitter with 2W RF Ethernet Transceiver Lower Latency
up to 50km Wireless COFDM Video Transmitter with 2W RF Ethernet Transceiver Lower Latency
up to 50km Wireless COFDM Video Transmitter with 2W RF Ethernet Transceiver Lower Latency
up to 50km Wireless COFDM Video Transmitter with 2W RF Ethernet Transceiver Lower Latency
up to 50km Wireless COFDM Video Transmitter with 2W RF Ethernet Transceiver Lower Latency


Kimpok Technology is specializing in the provision of advance wireless microwave communication system to the broadcast, UAV, public surverillance and defense industries. By continuously investing in innovation and combining exceptional products and services, Kimpok Technology offers superior solutions that enable our customers to do their jobs even more effectively.

Our Service:

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;

5. 5 engineers provide professional system design and construction;
6. Good prices and Military grade quality with 17 years experience in COFDM field.
