300Mhz Wireless Video Transmitter And Receiver Analog FPV Video Link 1500mW

300Mhz Wireless Video Transmitter And Receiver Analog FPV Video Link 1500mW
300Mhz Wireless Video Transmitter And Receiver Analog FPV Video Link 1500mW 300Mhz Wireless Video Transmitter And Receiver Analog FPV Video Link 1500mW 300Mhz Wireless Video Transmitter And Receiver Analog FPV Video Link 1500mW

Large Image :  300Mhz Wireless Video Transmitter And Receiver Analog FPV Video Link 1500mW

Product Details:
Place of Origin: China
Brand Name: Kimpok Technology / OEM
Certification: CE
Model Number: KP-C15
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: export standard packing
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union,PayPal

300Mhz Wireless Video Transmitter And Receiver Analog FPV Video Link 1500mW

Description
Product Name: Analog Video Wireless Transmitter And Receiver Transmit Power: 1.5W
Voltage: DC 12V Weight: 82g
Frequency: 300Mhz~2400Mhz Number Of Channels: 12 Channels
Highlight:

300Mhz Analog Video Transmitter

,

1500mW Analog Video Transmitter

,

FPV Analog Video Transmitter

300Mhz Wireless Video Transmitter And Receiver Analog FPV Video Link 1500mW


Kimpok is the wireless security provider of choice for police departments, private investigators, UAV hobbyist, and federal agencies nationwide, in large part due to our range of wireless video transmission devices. Our selection of state-of-the-art wireless video transmitters and receivers, wireless video links, antennas, and wireless sensors, are designed so you can place your cameras where you need them, without the concern of running video cable.

Our wireless video receiver and transmitter options are used for a variety of demanding applications, including long range wireless video transmission and remote video surveillance. Our 300Mhz~2400Mhz wireless links offer a cost-effective and scalable wireless solution; these wireless access points let you send multiple camera signals to a single receiver, reducing overall system cost.

Whatever your wireless surveillance application or budget, we can find the right solution for you. Contact us! We can customize any solution to fit your requirements.



Specification of 300Mhz fpv video transmitter:


Voltage DC 12V
Current 600mA
Frequency 300Mhz~2400Mhz (option)
Number of channels 12 channels
Transmit Power 1500mW
Video Output 1 Vp-p(FM)
Audio Output 1 Vp-p(FM)
Audio Carrier Ware 5.5M 6.0M
Distance (Open environment) 1000m-3000m

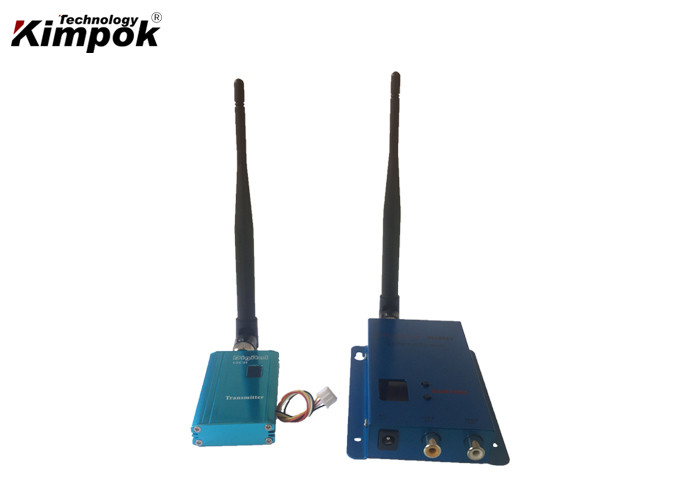

Overall Configuration Transmitter, receiver, AV cable, antenna
Temperature -10℃ ~ +50℃
Transmitter Weight 82g
Receiver Weight 120g
Dimensions (L * W * H) Transmitter: 73*41*14mm. Receiver:116*80*21mm


300Mhz Wireless Video Transmitter And Receiver Analog FPV Video Link 1500mW 0



300Mhz Wireless Video Transmitter And Receiver Analog FPV Video Link 1500mW 1



300Mhz Wireless Video Transmitter And Receiver Analog FPV Video Link 1500mW 2


Features:



Wireless transmission: no need to set up communications cable
Image, audio sync, color black and white compatible
Small size, light weight, easy to carry, good installation
Responsive, timely, send and receive real-time transmission
Using FM mode, anti-interference ability, good image quality
Highly integrated, stable and reliable transmission distance
DC power supply, easy to use.
Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

Installing:

A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack

B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation

C. Set the same channel with transmitter and receiver





FAQ:



Q1: What can I buy from you?

COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.

Q2: Why should I choose you?

Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.

Q3: Do you have a minimum order quantity?

No MOQ limit, 1pc is acceptable.

Q4: What kind of product service can I have?

OEM & ODM service.

Q5: What is the product warranty?

We offer two-year-warranty and lifelong maintenance.

Q6: What is the average lead time?

5-7 working days for regular model, and 20-30 working days for customized model.

Q7: What kinds of payment methods do you accept?

We accept bank transfer, Western Union, PayPal, or cash payment.

Q8: Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.



Our Service:



  • One-stop ODM/OEM solution;
  • 24-hour technical support;
  • Lifelong maintenance (Replacement parts will be charged after a year);
  • Provide professional system design and construction;
  • You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
