500Mhz Drones FPV VTX 20km Wireless Video Transmitter 8 Channels 2W

500Mhz Drones FPV VTX 20km Wireless Video Transmitter 8 Channels 2W
500Mhz Drones FPV VTX 20km Wireless Video Transmitter 8 Channels 2W 500Mhz Drones FPV VTX 20km Wireless Video Transmitter 8 Channels 2W

Large Image :  500Mhz Drones FPV VTX 20km Wireless Video Transmitter 8 Channels 2W

Product Details:
Place of Origin: China
Brand Name: Kimpok Technology / OEM
Certification: CE/ROHS/FCC/SGS
Model Number: KP-5000TX2W
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard packing
Delivery Time: 3-7 days
Payment Terms: T/T, PayPal or western Union
Supply Ability: 3,000pcs per month

500Mhz Drones FPV VTX 20km Wireless Video Transmitter 8 Channels 2W

Description
Product Name: 500Mhz Fpv Video Link Number Of Channels: 8 Channels
Transmit Power: 2W Distance: 20-30km LOS
Frequency: 460-880Mhz Option Weight: 60g

500Mhz Drones FPV VTX 20km Wireless Video Transmitter 8 Channels 2W​



Features:



1. Wireless transmission: no need to set up communications cable

2. Image, audio sync, color black and white compatible

3. Small size, light weight, easy to carry, good installation

4. Responsive, timely, send and receive real-time transmission

5. Using FM mode, anti-interference ability, good image quality

6. Highly integrated, stable and reliable transmission distance

7. DC power supply, easy to use.

8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.



500Mhz drone FPV Video link Specification:



Voltage DC 12V
Current 600mA
Frequency 460-880Mhz optional
Frequency band 500Mhz: (460Mhz, 480Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz)
600~700Mhz: (600Mhz, 620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz)
700-800Mhz: (740Mhz, 760Mhz, 780Mhz, 800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz)
Number of channels 8 channels
Transmit Power 2 watt
Video Output 1 Vp-p(FM)
Audio Output 1 Vp-p(FM)
Audio Carrier Ware 5.5M 6.0M
Distance  20km from air to ground; 1km NLOS on ground

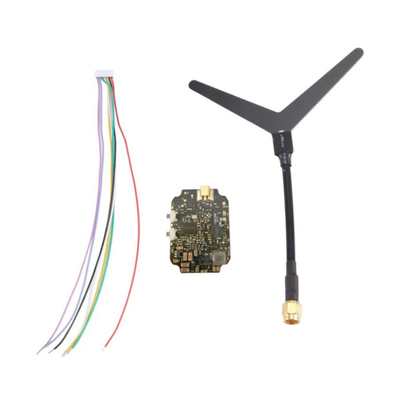

Overall Configuration Transmitter, receiver, video cable, antenna
Temperature -10℃~+50℃
Transmitter Weight 60g
Dimensions (L * W * H) 66*45*15mm



Installing:


A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack



B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation


C. Set the same channel with transmitter and receiver
