Product Details:
|
Product Name: | 5.8Ghz FPV VRX | Number Of Channels: | 80 Channels |
---|---|---|---|
Frequency: | 5.8Ghz(4990MHz-5945MHz) | Weight: | 14.2g |
Power Supply: | DC 12V | Dimension: | 44*27*27mm |
Highlight: | 500Mhz FPV UAV Video Transmitter,VRX FPV UAV Video Transmitter |

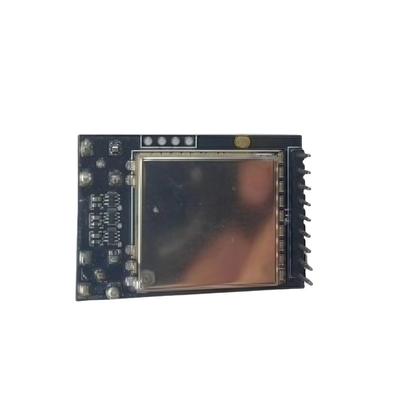

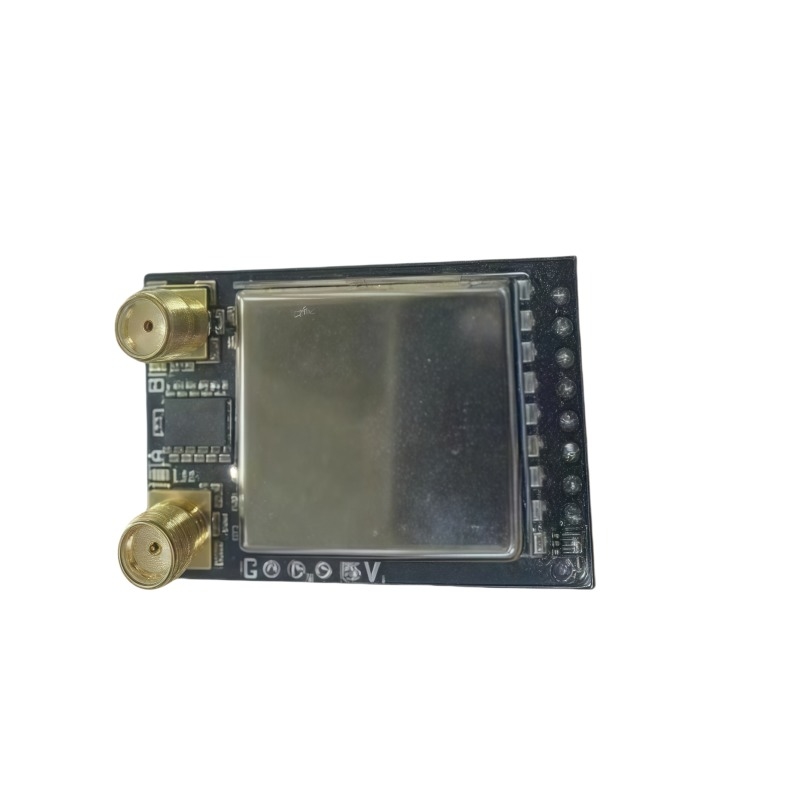

5.8G FPV VRX Wireless Drone Video Receiver 4990MHz-5945MHz 8CH Video Receiving
Specification:
DC Characteristics | |
POWER SUPPLY | 7-36V |
Current Consumption | (280 ±40)mA |
Environmental Specification | |
Operating Temperature | -10~+65 ºC |
Storing Temperature | -30~+85 ºC |
Operating humidity | 85%RH |
RF | |
Receiving frequency range | 4990~5945MHz (80CH) |
Voltage Standing Wave Ratio | 2:1 |
Demodulation system | FM/PLL |
IF | 480MHz |
ANT. input impedance | 50Ω, Typ. |
LO Frequency stabilization | ±200kHz |
LO Frequency Precision | ±200kHz |
LO Control | PLL |
Input LO Leak | -65dBm |
Receiving Sensitivity | -95dBm |
Input Level Range | -95 dBm ~+5 dBm |
Video Characteristics | |
Video Output impedance | 75Ω, Typ. |
Video Output Level | 1Vp-p, Typ. |
Video Polarity | NEGATIVE |
Video Frequency Respone | ±5 dB, Max. 50Hz ~ 6MHz |
Differential Gain | ±5 %, Max |
Differential Phase | ±5 Deg., Max |
3Db IF WIDEBAND | 16.5MHz |
S/N | 38dB, Min |
RSSI Output Voltage(-30dBm~-90dBm) | 1.3~0.7V |
Profile dimension | 44mm(L)*27mm(W)*27mm(H) |
net weight | 14.2g |
Frequency:
Frequency Table | ||||||||
Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Band L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
Band X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
Band H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
Band U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
Band O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
