Product Details:
|
| Product Name: | 3.3Ghz 2W Fpv Vtx Vrx | Frequency: | 3.3Ghz |
|---|---|---|---|
| Transmit Power: | 2W | Distance: | 10-20km LOS |
| Channel: | 8 Channels | VTX Weight: | 60g |
| High Light: | Long Range Analog Video Transmitter,FPV Transmission Analog Video Transmitter,3.3Ghz Analog Video Transmitter |
||

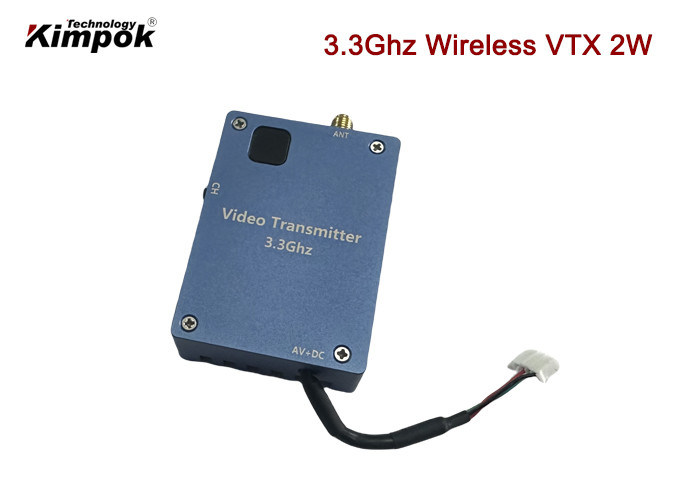

Kimpok 3.3Ghz Analog Video Transmitter VTX for Long Range FPV Transmission
3.3Ghz 2W UAV VTX Specification:
| Model | KP-3300TX2W |
| Voltage | DC 12V |
| Current | 700mA |
| Modulation | FM |
| Frequency | 3.3Ghz |
| Channels | 8 channels |
| Frequency band | 3300Mhz, 3320Mhz, 3340Mhz, 3360Mhz, 3380Mhz, 3400Mhz, 3420Mhz, 3460Mhz |
| Transmit Power | 2 watt |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA |
| Transmitter Weight | 60g |
| Dimensions | 60*42*19mm |
| Model | KP-RX3300 |
| Voltage | DC 12V |
| Receiving sensitivity | -77DB |
| Modulation | FM |
| Frequency | 3.3Ghz |
| Channels | 8 channels |
| Frequency band | 3300Mhz, 3320Mhz, 3340Mhz, 3360Mhz, 3380Mhz, 3400Mhz, 3420Mhz, 3460Mhz |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA |
| Transmitter Weight | 19g |
| Dimensions (L * W * H) | 75*45*20mm |
A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack
B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation
C. Set the same channel with transmitter and receiver
