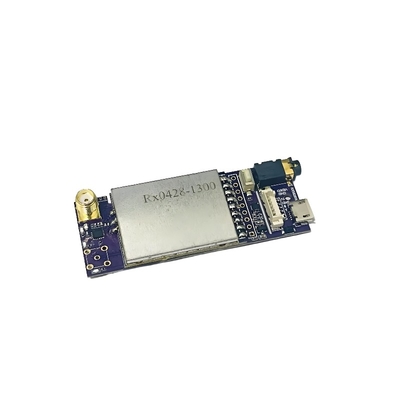

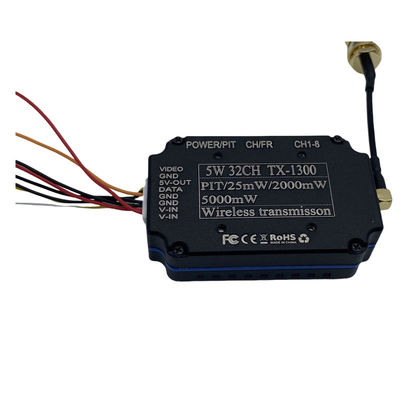

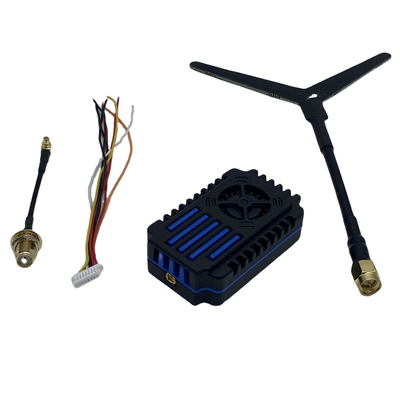

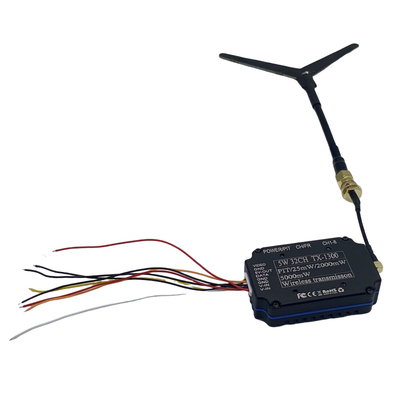

1.2G 1.3Ghz 5W Wireless Drone VTX VRX 32CH 7-36V DC FPV Video Transmitter Receiver

Parameter:

Input voltage: 7 - 36V DC (2 - 8S)
Frequency range: 1080 MHz - 1420 MHz

Output voltage: 5V / 0.6A
Power rating: Pit / 25mW / 1000 mW / 5000 mW
Control protocol: VTX (IRC Tramp)
Weight: 24.5g (without antenna)
Installation hole spacing: 20mm * 20mm (M2)
Size (length x width x height): 53.5mm * 32.5mm * 15.5mm
Video format: PAL/NTSC
Channel number: 32CH
Channel selection: Frequency band / frequency point adjustment buttons; long press for 2 seconds to switch frequency band, short press for 1 second to switch frequency point
Transmitting frequency: 32CH, see frequency point table
Power adjustment: Power adjustment button, short press for 1 second to switch
Antenna interface: MMCX
Modulation type: FM

I. 32 Channel frequency table

II. Press the CH/FR switch button for 1 second to switch the frequency band. The frequency band will cycle between CH1 - CH8. Press the CH/FR switch button for 2 seconds to switch the frequency group.

III. Use one button to adjust the power. Short press the switch button for 1 second to change the power. The power levels cycle between PIT, 25mW, 1000mW, and 5000mW. The LED status is as shown in the table below. Press the power button twice in succession to turn on or exit the Pit Mode; Press the power button for 5 seconds to enter the power lock state, and the power indicator light will go out.

Support and Services:

Our Analog Video Transmitter product comes with comprehensive technical support and services to ensure that our customers get the most out of their equipment. Our team of experts is available to answer any questions you may have about the product and its operation. We offer a range of services, including installation, configuration, and troubleshooting. Whether you have a technical issue or need help with a particular feature, we are here to assist you. Our goal is to provide our customers with the best possible experience and ensure their satisfaction with our product and services.

FAQ:

Q1. What is the brand name of the Analog Video Transmitter?

A1. The brand name of the Analog Video Transmitter is Kimpok Technology or OEM.

Q2. What is the model number of the Analog Video Transmitter?

A2. The model number of the Analog Video Transmitter is KP-T1350.

Q3. What certifications does the Analog Video Transmitter have?

A3. The Analog Video Transmitter has CE/ROHS/FCC/SGS certifications.

Q4. What is the minimum order quantity for the Analog Video Transmitter?

A4. The minimum order quantity for the Analog Video Transmitter is 1 set.

Q5. What are the payment terms for purchasing the Analog Video Transmitter?

A5. The payment terms for purchasing the Analog Video Transmitter are T/T, PayPal or Western Union. Price is negotiable, and we can supply up to 3,000pcs per month. Delivery time is 3-7 days and packaging details are export standard packing.
