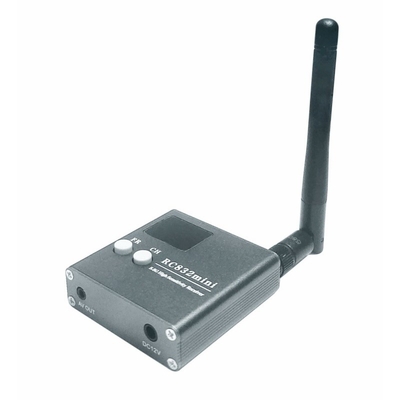

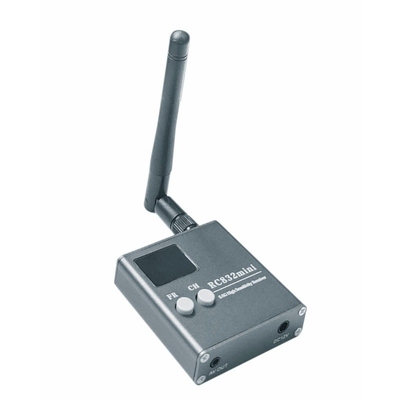

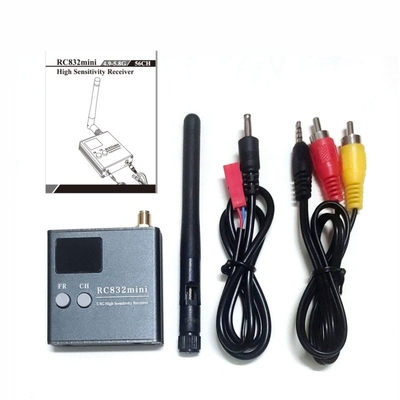

5.8Ghz UAV Video Receiver Ultra Long Range Image Sender RC Drone Accessories 5.8G VRX

Receiver specification:

Operation method:

After powering on and turning on the digital tube, it will display the last saved frequency band and channel,

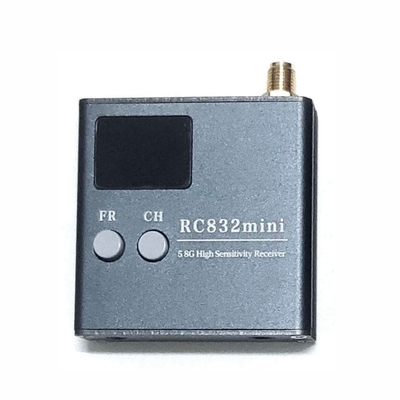

1. Implement module channels through two buttons_ CH, frequency band_ FR adjustment, and a power on button (note: be sure to turn it on after the antenna is installed, otherwise it will burn out the power amplification IC):
A: Frequency band adjustment:
In the initial startup state, press the FR button to adjust the current frequency band. Short press the FR button (about 0.5s) once to switch the frequency band from 1 to 2, and the digital display will switch from 1 to 2; Short press the FR button again (about 0.5S), the frequency band will jump from 2 to 3, the digital tube will display from 2 to 3, and so on. The frequency band will be displayed in sequence at A B. Loop between E.F.R.L.X, digital display shows loop between 1.2.3.4.5.6.7.

B: Channel adjustment:
Press the CH button to adjust the current channel. Short press the CH button (about 0.5s) once to switch the frequency band from 1 to2, and the digital display will switch from 1 to 2; Short press the CH button again (about 0.5S), the frequency band will jump from 2 to 3, and the digital display will go from 2 to 3... and so on, the frequency band will cycle between 1.2.3.4.5.6.7.8, and the digital display will cycle between 1.2.3.4.5.6.7.8.

C: Power on:
After confirming that the matching antenna is installed properly, press the power on button and the transmitter will start working normally. Be careful not to block the cooling fan window of the transmitter.

FAQ:

Q1: What is the brand name of the UAV Video Transmitter?

A1: The brand name is Kimpok.

Q2: What certifications does the UAV Video Transmitter have?

A2: The UAV Video Transmitter has CE/FCC/ROHS certifications.

Q3: What is the minimum order quantity for the UAV Video Transmitter?

A3: The minimum order quantity for the UAV Video Transmitter is 1 set.

Q4: What is the delivery time for the UAV Video Transmitter?

A4: The delivery time for the UAV Video Transmitter is 3-7 days.
