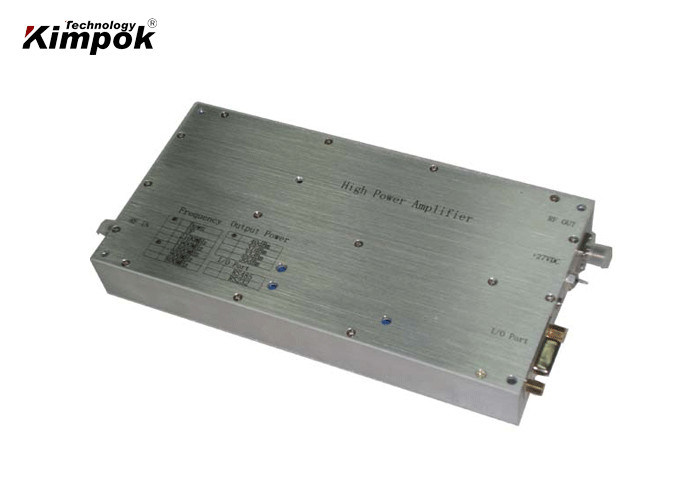

27V DC RF Linear Amplifier

27V DC RF Linear Amplifier
27V DC RF Linear Amplifier

Large Image :  27V DC RF Linear Amplifier

Product Details:
Place of Origin: China
Brand Name: Kimpok Technology / OEM
Certification: CE
Model Number: KP-LAM300-100W
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: International packing
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 1000pcs/month
Contact Now

27V DC RF Linear Amplifier

Description
Name: Linear Power Amplifier Frequency: 330-340MHz / 340-350MHz
Gain: 50dBi RF Output Power: 50dBm
Working Voltage: 27VDC(27V-28V) Working Current: 10A
Highlight:

27VDC RF Linear Amplifier

,

100Watt RF Linear Amplifier

,

300MHz 100 Watt Power Amplifier

100 Watt RF Linear Power Amplifier 300MHz Frequency 27V DC Working Voltage



Specification:



No. Item Requirements
1 Frequency Range

330-340MHz/ 340-350MHz

Or 1805-1880MHz

Or 2110-2170MHz
2 Gain 50dBi
3 Max RF Output Power 50dBm /100W
4 Gain Adjust Range 31dB
5 Input Power 3-8dBm
6 In-Band Ripple 1dB
7 Input/Output VSWR ≤1.3
8 Working Voltage 27VDC(27V-28V)
9 Working Current 10A
10 RF Input/ Output Ports SMA-Female
11 Power Supply Interface Pull-core Capacitance

12





To Monitoring function

(DB15,Female)

 PIN1: 1dB Attenuation
PIN2: 2dB Attenuation
PIN3:4dB Attenuation
PIN4: 8dB Attenuation
PIN5:16dB Attenuation
PIN7: V/L, VSWR(reflected RF Power, Max voltage,4V; 0.05V/1dBm)
PIN10:P/L(Output RF Power; Max voltage,4V; 0.05V/1dBm)
PIN11: LE :Enable, High Level: OFF; Low Level: ON
PIN14: T/LTemperature:0.01V/1 Celsius ,0.3V for 30 Celsius
PIN15: GND

PIN6:NC, PIN8: NC, PIN9: NC, PIN12: NC, PIN13: NC
13

Monitoring function

(DB9,Female,RS485) (Optional)

PIN1,PIN2: RS485A

PIN3,PIN4: RS485B

PIN5: GND

Data Protocol: China Mobile Standard





27V DC RF Linear Amplifier 0





27V DC RF Linear Amplifier 1



Tag:

28VDC RF Amplifier High Power,

800MHz RF Power Amplifier,

2400Mhz High Power RF Amplifier
