Product Details:
|
| Video Port: | RJ45*2 | RF Power: | 1W MIMO |
|---|---|---|---|
| Transmit Rate: | 11Mbps@10MHz | Encryption: | AES 128/256 Bits |
| Bandwidth: | 1.4/3/5/10/20Mhz | Weight: | 460g |
| High Light: | Self Networking IP Mesh Radio,1400MHz IP Mesh Radio,Kimpok Wireless IP Mesh |
||

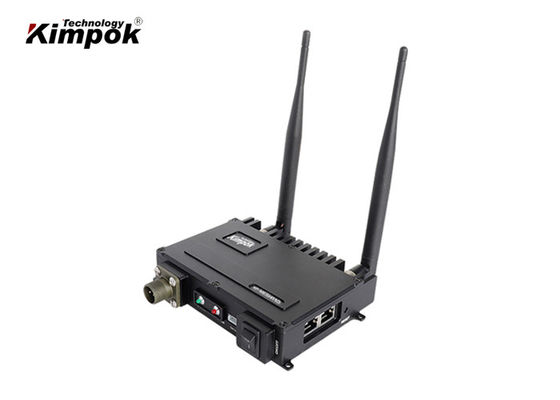

Self-networking IP Mesh Network 1400MHz Military Wireless Radio System
Description:
This KP-MESH110 is a new robust narrowband Ethernet wireless mesh,also MIMO raidos optimized for tactical applications.Its capabilities can have a mix of licensed-and unlicensed-frequencies and co-exist in one seamless working wireless network,which is appropriate for multi channel advance the video and data communication ,like any shape topology star working mode.
The KP-MESH110 mesh will be available in a broad range of multi-frequencies such as 500MHz,770MHz,1.4GHz,2.3-2.5GHz,providing layer 2 and layer 3 routing capabilities.tThe multi-radio modular design with a throughput of 96Mbps per node,is used to blend wireless transport and Access point technologies into a seamless working wireless network solution.As its OFDM modulation with narrow band technology that able to extend the cover range and better diffraction even in moving conditions.As its very small size,lightweight and bridge capacities,which is ideal for high-stakes industries like law enforcement,president VIP protection,military and broadcast.
Main Features:
| Up to 36dBm of output power | Multi link wireless communication |
| Wireless MESH network,bridge and PTZ control combination | Transmit rate can be up to 96Mbps |
| Long range full duplex and NLOS telecommunication support | Good diffraction and anti-interference |
| High security with encryption 256 bits | Small dimension, light weight,heat dissipation of aluminum case |
| Highly integrated modular combination design | Software configured, can see the topography |
Specifications:
| Frequency |
300-2500MHz available Please select a 100MHz span in between them. |
| Bandwidth | 5M/10M/20M/40MHz (Adjustable) |
| RF power | 30dBm (33dBm/36dBm Optional) |
| Sensitivity | -102dBm maximal |
| Modulation | DSSS/CCK BPSK/QPSK OFDM BPSK/QPSK//16-QAM/64-QAM |
| Working voltage | DC12V |
| Power consumption | ~ 5W |
| Working temperature | -40℃~ +65℃ |
| RF interface | SMA * 2 |
| Ethernet port | RJ45 * 2 (for IP camera or other steam with Ethernet port) |
| Operation | Manual via Web Software |
| Dimension | 131*103*29mm |
| Weight | 460g |
| Distance for 2 pcs |
1~1.5km LOS on ground level 500m NLOS on ground level 15~20km LOS from UAV to ground station |
