Product Details:
|
| Video Port: | RJ45*2 | RF Power: | 30dBm (33dBm/36dBm Optional) |
|---|---|---|---|
| Sensitivity: | -102dBm Maximal | Encryption: | AES 128/256 Bits |
| Bandwidth: | 1.4/3/5/10/20Mhz | Weight: | 460g |
| High Light: | NLOS IP Mesh Network,36dBm IP Mesh Network,Kimpok IP Video Network |
||

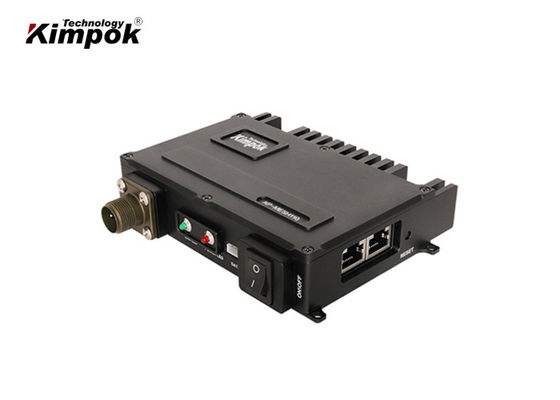

Mini Wireless IP Radio Mesh 36dBm NLOS Network Video Audio Communication
Description:
This KP-MESH110 is a new robust narrowband Ethernet wireless mesh,also MIMO raidos optimized for tactical applications.Its capabilities can have a mix of licensed-and unlicensed-frequencies and co-exist in one seamless working wireless network,which is appropriate for multi channel advance the video and data communication ,like any shape topology star working mode.
Focus on huge data amount and faster data rate, the mesh repeater KP-MESH110 provides data rate of peak 80-150Mbps @20MHz, which meets the requirements of covering many nodes in the same system.
What’s more, it can freely communicate with other handheld IP mesh of Kimpok Technology company, wirelessly. The mesh repeater and handheld mesh from Kimpok Technology company, can form an efficient and flexible wireless MIMO network.
Main Features:
| Up to 36dBm of output power | Multi link wireless communication |
| Wireless MESH network,bridge and PTZ control combination | Transmit rate can be up to 96Mbps |
| Long range full duplex and NLOS telecommunication support | Good diffraction and anti-interference |
| High security with encryption 256 bits | Small dimension, light weight,heat dissipation of aluminum case |
| Highly integrated modular combination design | Software configured, can see the topography |
Specifications:
| Frequency |
300-2500MHz available Please select a 100MHz span in between them. |
| Bandwidth | 5M/10M/20M/40MHz (Adjustable) |
| RF power | 30dBm (33dBm/36dBm Optional) |
| Sensitivity | -102dBm maximal |
| Modulation | DSSS/CCK BPSK/QPSK OFDM BPSK/QPSK//16-QAM/64-QAM |
| Working voltage | DC12V |
| Power consumption | ~ 5W |
| Working temperature | -40℃~ +65℃ |
| RF interface | SMA * 2 |
| Ethernet port | RJ45 * 2 (for IP camera or other steam with Ethernet port) |
| Operation | Manual via Web Software |
| Dimension | 131*103*29mm |
| Weight | 460g |
| Distance for 2 pcs |
1~1.5km LOS on ground level 500m NLOS on ground level 15~20km LOS from UAV to ground station |
