Product Details:
|
| Modulation: | 2K QPSK | Bandwidth: | 4/8Mhz(adjustable) |
|---|---|---|---|
| Video Output: | HDMI/SDI; CVBS | Video Coding: | H.264 |
| Encryption: | AES 128/256 Bits | Weight: | 5.1kg |
| High Light: | Long Range COFDM Video Transmitter,H.264 COFDM Video Transmitter,2K QPSK Long Range Video Transmitter |
||

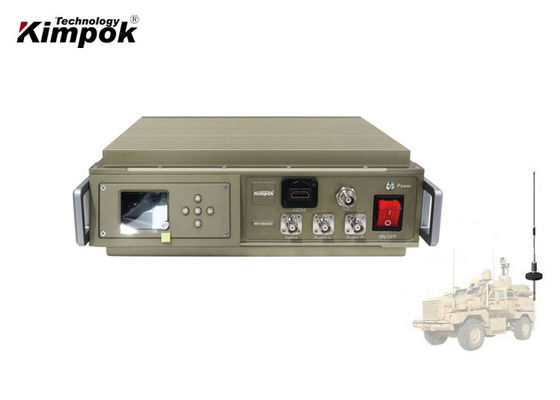

Vehicle Mounted COFDM Video Transmitter Long Range Wireless HD Mobile Sender H.264
COFDM Mobile Video Transmitter Introduction:
It’s a new powerful HD COFDM video audio transmitter, can up to 20-25W power which support transmitting over a long distance.Using the core technology 4th generation mobile communication COFDM modulation and low delay full-HD 1080P technique that can transmit high quality and stable image under the condition of fast moving or many buildings as obstacles(NLOS). Suitable for vehicles - cars, boat - boats, cars - a building, ship – a base station, aircraft –a buiding/vehicle and etc. high-definition moving video signal transmission, the carrier velocity greater than 450km / h.Widely used in public security, armed police, fire, field armies,other military departments and broadcasting, urban management, civil defense, transportation, customs, oil, mining, water, electricity, geology, finance and other relevant state departments.
Features:
Specification:
| Model number | KP-HDT25W |
| Frequency | 300-900MHz,1.2G/2.4G/5.8GHz |
| RF power | 20-25Watt(adjustable) |
| Power supply | DC11-14.5V/1.9A |
| Modulation | COFDM 2K QPSK |
| RF Bandwidth | 4/8MHz(adjustable) |
| FEC | 1/2 2/3 3/4 7/8 |
| Guard Interval | 1/32 1/16 1/8 1/4 |
| Data Encryption | AES 128/256 Bits |
| Max speed | 450km/h |
| Video Input | BNC: D1 standard definition |
| HDMI: HD1080I/1080P, 720P, 576, 480 | |
| SDI:HD1080I/1080P, 720P, 576, 480 | |
| Video compression format | H.264 |
| Video Resolution | 180p/1080i@60fps, 1920*1080 definition |
| RF Interface | N |
| Work environment | -40℃~70℃ |
| Video Format | PAL/NTSC(self-adaption) |
| Transmission Distance |
15km NLOS distance(ground to ground) 20km-35km LOS distance(on sea) |
| Case Material Aluminum | (black) |
| Size | 220*275*78mm |
| Weight | 5.1kg |
Package:
1* Transmitter;
1* Receiver;
1* Magnetic antenna
1* Yagi Antennas;
1* FRP omni antenna & cables
Kimpok Technology is specializing in the provision of advance wireless microwave communication system to the broadcast, UAV, public surverillance and defense industries. By continuously investing in innovation and combining exceptional products and services, Kimpok Technology offers superior solutions that enable our customers to do their jobs even more effectively.
Our Service:
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. 5 engineers provide professional system design and construction;
6. Good prices and Military grade quality with 17 years experience in COFDM field.
