Product Details:
|
| Module: | 3G/4G; WIFI Module | RF Power: | 5/10MHz (optional) |
|---|---|---|---|
| Encryption: | AES 128 Bit Or Custom | Modulation: | COFDM |
| Frequency: | 340MHz/580MHz | Networking Capability: | Up To 16 Nodes |
| High Light: | Portable COFDM IP Mesh,Self Managing COFDM IP Mesh,AES 128 Bit UAV Video Link |
||

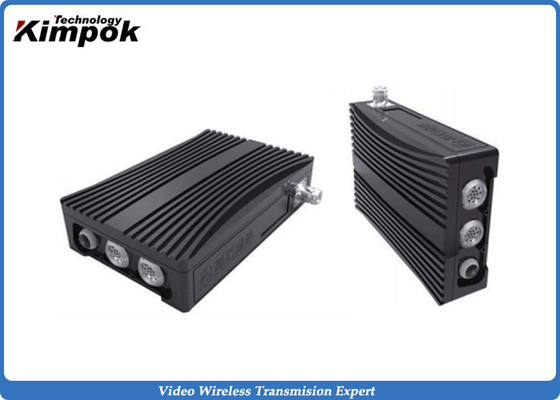

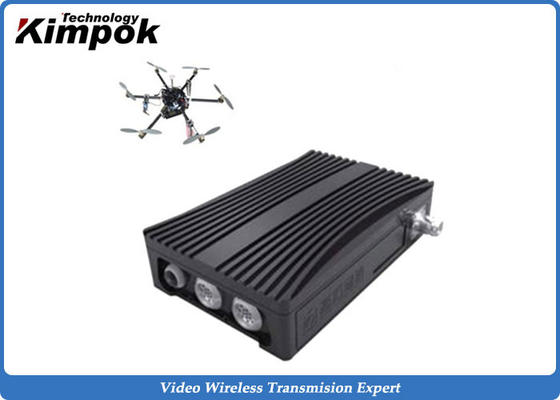

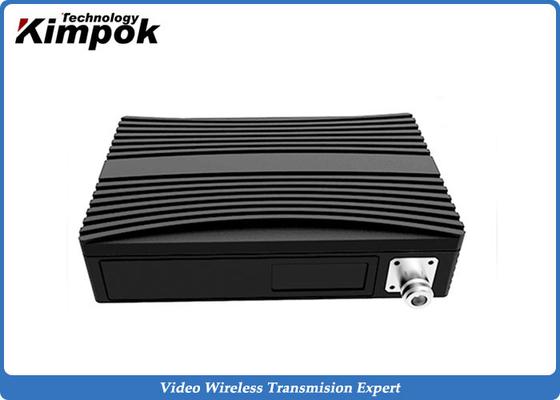

Portable Bi-directional Ethernet Radio Self-managing Network IP Mesh for UAV / Helicopter
Bi-directional IP Mesh:
Model KP-MESH340 wireless mesh is combined with mobile MESH, IP communication unit that delivers direct wireless mobile communication including HD video, data and VoIP without any extra infrastructure. KP-MESH340 wireless mesh is a fully connected "Self- managing" and "Self-healing" network where all units are connected to each other and could act as a relay to other units in the network. This assures connectivity even in extremely harsh conditions. With each unit providing redundancy to other units, a failure in one unit will not affect the operation of other units in the network.
KP-MESH340 wireless mesh is the military-level design, and has advantages of low power consumption, lightweight, battery operated unit delivering the highest form-to-performance ratio. It’s ideal for hand carry missions, robotics and mobile vehicles whether aerial, ground and sea.
Features of mobile wireless mesh communication:
* NLOS communication
* Centerless ad-hoc MESH networks
* Self-encrypted or AES 128bits
* Optional frequency: 100MHz~1000MHz
* High transfer rate: up to 11Mbps@10MHz
* Strong receiving sensitivity: -92dBm@10MHz
* Non-line-of-sight
* Instant ad-hoc networks
* Robust reliable wireless IP networks
* Operates between fast moving vehicles
* Rapidly deployable wireless surveillance system
Equipments accessories:
| Ultrashort wave antenna | Battery | Adapter | cable | |
| Accessories |  |
|
|
|
| specifications | Bandwidth:10MHz | Interface:aviation plug | Input voltage: 220V | Power input/output,Ethernet,AV composite cable |
| gain＞5dbi | Output voltage: DC14.4V | Input current: 10A | Audio,serial port*2,USB cable | |
| SWR≤1.5 | Output current:5A max | Output voltage:12V | ||
| Impedance:50Ω | Capacity:10Ah | Output current:4A max | ||
| Polarization: Vertical | Endurance: 4hrs | |||
| Max power 20W | ||||
| Length:110cm (foldable) | ||||
| Remark: | Above antenna is standard, you can also select other high gain antenna. |
|||
Specifications:
| Transmission characteristics | GPS | Optional external GPS module, support Beidou GPS module | ||
| Frequency | 340MHz/580MHz | 3G/4G module | support | |
| RF bandwidth | 5/10MHz (optional) | WIFI module | support | |
| RF output power | 1~3Watt (optional) | Encryption | AES 128 bit or custom | |
| Shoulder ratio | 30dBm>-45dbc | Electrical characteristics | ||
| Modulation | COFDM | Working voltage | DC12V | |
| Modulation constellation | BPSK/QPSK/16QAM/64QAM | Working current | ≤2A | |
| FEC | 1/2,2/3,3/4,5/6 | Power consumption | ≤20W | |
| sensitivity | -92dbm@10MHz | The built-in filter characteristics | ||
| Transfer rate | Peak 11Mbps@10MHz | Center frequency | 340MHz/580MHz | |
| Cover distance | customized | bandwidth | 10MHz | |
| Networking capability | up to 16 nodes | Out-of-band rejection | F0±10％≥44db | |
| F0±20％≥75db | ||||
| Video input format | Videoinput:CVBS,1Vp-p@75Ω,PAL 720*576 (D1) | Far-end≥80db | ||
| IP video input:1080P IP Camera | ||||
| Audio input format | MIC | Protection grade | IP65 | |
| Audio output format | headphone | Working temperature | -20°C ~+50°C | |
| Video compress format | H.264 | Storage temperature | -40°C ~+80°C | |
| Video bit rate | 3Mbps Max | Dimension | 200×130×50mm | |
| RS232 data serial port | 150bps~38.4kbps | Weight | 1.4Kg | |
