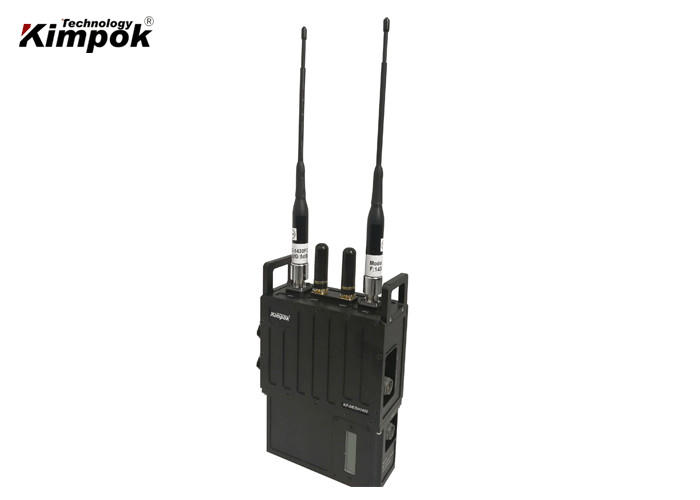

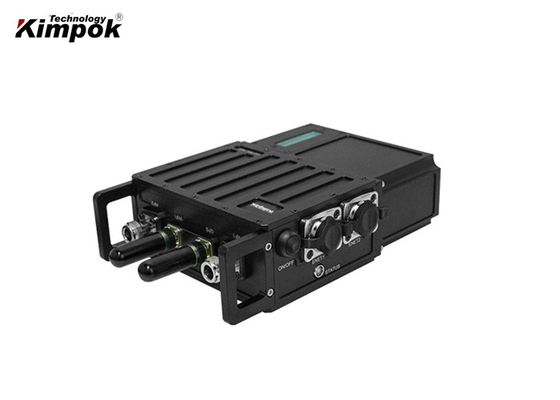

COFDM IP Mesh Radio

COFDM IP Mesh Radio
COFDM IP Mesh Radio COFDM IP Mesh Radio

Large Image :  COFDM IP Mesh Radio

Product Details:
Place of Origin: China
Brand Name: Kimpok Technology / OEM
Model Number: KP-MESH1400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 3-7 days
Payment Terms: T/T
Supply Ability: 1000pcs per month

COFDM IP Mesh Radio

Frequency: 1300MHz-1400MHz Or Other Frequency RF Bandwidth: 5/10MHz (optional)
Encryption: AES 128 Bit Or Custom GPS: Support
3G/4G Module: Support
High Light:

Multicast IP Mesh Radio


32Nodes IP Mesh Radio



Multicast COFDM IP Mesh Video & data Network MESH Communication up to 32 Nodes




KP-MESH1400 is a new robust Ethernet wireless transceiver radio from Kimpok Technology, special designed for N-LOS (Non line of sight) wireless IP MESH communication. It provides complete bi-directional video data IP networks transmission in complex environment, work as PTP communication and PTMP self-organized networking, each mesh group can access up to 32 nodes. Since its OFDM modulation with narrow band technology that able to extend the cover range and better diffraction even in moving conditions.


As its very small size, lightweight and bridge capacities, which is ideal for motion surveillance with high quality image and emergency communication. Widely apply in tactical applications like law enforcement, public security and protection, police, army, fire control, emergency areas etc.


Main Features:


  • Up to 33dBm of output power
  • Self-organizing network
  • Self-encrypting security algorithm
  • Wireless MESH network,bridge and PTZ control combination
  • Transmit rate is peak 11Mbps@10MHz
  • Support Wifi and GPS;
  • Long range full duplex and NLOS telecommunication support
  • Good diffraction and anti-interference;
  • Small dimension, light weight,heat dissipation of aluminum case;
  • Highly integrated modular combination design;
  • Software configured, can see the topography




Transmission characteristics GPS Optional external GPS module
Frequency 1300MHz-1400MHz 3G/4G module support
RF bandwidth 5/10MHz (optional) WIFI module support
RF output power 1~3Watt (adjustable) Encryption AES user-defined password
Shoulder ratio 30dBm>-45dbc Electrical characteristics
Modulation COFDM Working voltage DC12V
Modulation constellation BPSK/QPSK/16QAM/64QAM Working current ≤2A
FEC 1/2,2/3,3/4,5/6 Power consumption ≤20W
sensitivity -92dbm@10MHz The built-in filter characteristics
Transfer rate Peak 11Mbps@10MHz Center frequency 1300MHz-1400MHz
Cover distance customized bandwidth 10MHz
Networking capability up to 32 nodes Out-of-band rejection F0±10%≥44db
Data characteristics F0±20%≥75db
Video input format Videoinput:CVBS,1Vp-p@75Ω,PAL 720*576(D1) Far-end≥80db
IP video input:1080P IP Camera Physical characteristics
Audio input format MIC Protection grade IP65
Audio output format headphone Working temperature -20℃~+50℃
Video compress format H.264 Storage temperature -40℃~+80℃
Video bit rate 3Mbps Max Dimension 200×130×50mm
RS232 data serial port 150bps~38.4kbps Weight 1.4Kg


COFDM IP Mesh Radio 0

COFDM IP Mesh Radio 1



COFDM IP Mesh Radio 2


Typical application


As its rugged compact design, and mesh network ability, it’s widely used in army, security and protection, fire control, emergency areas etc.

COFDM IP Mesh Radio 3


COFDM IP Mesh Radio 4
