Product Details:
|
| Modulation: | COFDM, 2K | Receive Frequency: | 300MHz~--470MHz |
|---|---|---|---|
| Power Supply: | DC11V~DC16V | Video Compression: | H.264/MPEG-2（autoadaptation） |
| Encryption: | AES 128/265 Bit / ALLTECH Basic Scrambling | Dimension: | 440*340*65mm（1U Chassis） |
| High Light: | AES Wireless Hd Receiver,DC16V Wireless Hd Receiver,DC11V Digital Video Receiver |
||

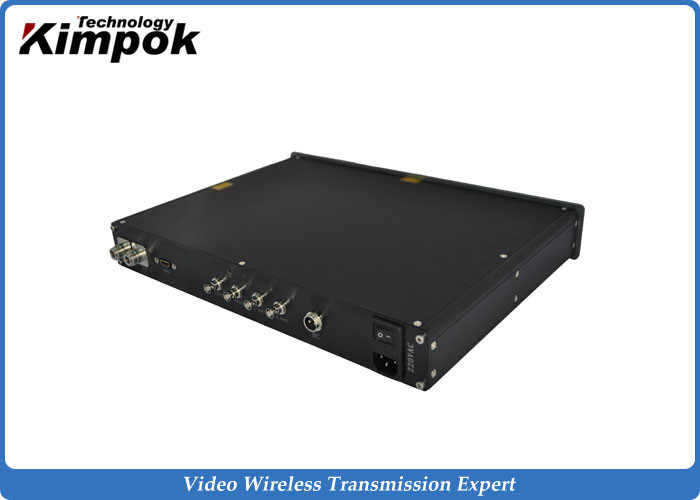

Multi Function 1080P Wireless Hd Receiver , HD - SDI Broadcasting Digital Video Receiver
Product Features:
Specifications:
| DC Input | DC11V~DC16V |
| Working Current | ≤1.1A@DC12.5V |
| Receiving sensitivity | ≤-102dBm @ /4MHz, ≤-95dBm @ /8MHz |
| BER | BER≤1×10-4 |
| Frequency input range | 300MHz~--470MHz |
| Input interface | N(type),Dual antenna diversity reception technology |
| Modulation | COFDM |
| RF bandwidth | 4/8MHz (adjustable) |
| Constellation | QPSK,16QAM,64QAM (optional) |
| Encryption | AES 128/265 bit / ALLTECH Basic scrambling |
| FEC | 1/2,2/3,3/4,5/6, 7/8 (optional) |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Carrier | 2K |
| Video formats and amplitude | PAL/NTSC, 1Vp-p/75Ω |
| Video compression | H.264/MPEG-2(autoadaptation) |
| Decode code stream rate | 0.5-12Mbps |
| Video decompression latency | Decompression delay is 300mS,The end- to-end compression decompression is 800mS |

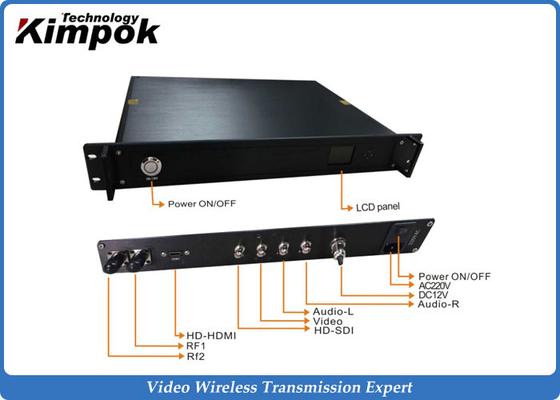

| Video output interface | Composite video RCA,HD,ASI,HD-SDI(alternative) |
| Interrupt recovery | Better than 2S |
| Video channel characteristic | Differential gain DG≤1.5%, Differential phase DP≤1° |
| Audio output | Left and right channel and stereo |
| Dimension | 440*340*65mm(1U chassis) |
| Weight: | 3.8kg |
COFDM Receiver Application:
Our Service
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
