Product Details:
|
| Frequency: | 0.9Ghz/1.2Ghz/1.3Ghz | Number Of Channels: | 4 CHs |
|---|---|---|---|
| Transmit Power: | 7000mW | Voltage: | DC 12V |
| Weight: | 100g | Transmit Distance: | 5-10km On Ground; Up To 100km From Air To Ground |
| High Light: | 7000mW Drone Video Transmitter,4 CHs Drone Video Transmitter,DC 12V Analog Wireless Transmitter |
||

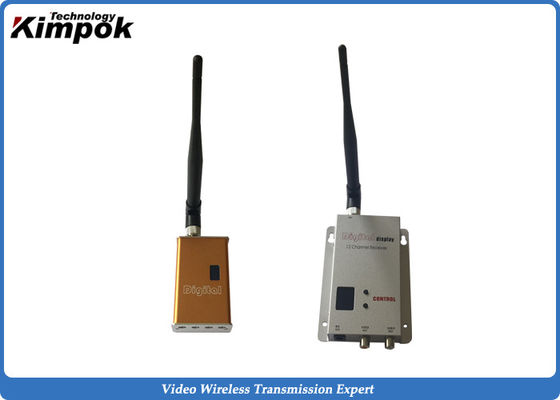

Mini 7000mW Wireless Video Transmitter and Receiver 100km LOS for UAV / FPV / Drones
Description:
KP-MINIA7 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 0dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 5-10km or so, if the raising of the high gain directional antenna, increased to 12KM away, it can be reach up to 100KM on UAV/helicopters. And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.
It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.
Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.
Specification:
Transmitter parameter:
| Output | 7000mW |
| Current Consumption | 1.5A |
| Frequency | 1.2Ghz |
| Channel | 4CH |
| Band | 1080 MHz, 1120 MHz, 1160 MHz, 1200 Mhz |
| Output impedance | 50 Ohm |
| Audio input impedance | 1k Ohm |
| Audio input amplitude | 1.2Vp-p |
| Video input impedance | 75 Ohm |
| Video input amplitude | 1.2Vp-p |
| Voltage | DC 12V(at 36dbm) |
| Working current | 700mA |
| The lowest Voltage | DC 5V(at 31dbm) |
| Weight | 100g |
| Size | 74*56*36mm |
| Transmission range | 5-10km (LOS on ground); up to 100km LOS from air to ground |
| Accessories | transmitter, antenna, Tx cable, DC 12V, 3A adapter |
Receiver parameter:
| Frequency | 1.2Ghz |
| Channel | 12CH |
| Working voltage | DC 12V |
| Current consumption | 260mA |
| Weight | 115g |
| Size | 115*80*21mm |
| Accressories | receiver, antenna, AV cable |
Pictures:
Our Service:
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
