Product Details:
|
| Frequency: | 0.9G/1.2G/1.3G | Number Of Channels: | 8 Channels |
|---|---|---|---|
| Transmit Power: | 5000mW | Voltage: | DC 12V |
| System: | PAL/NTSC | Transmit Distance: | Up To 90km LOS From Air To Ground |
| High Light: | 900Mhz FPV Drone Video Transmitter,1200Mhz FPV Drone Video Transmitter,5W Drone Video Transmitter |
||

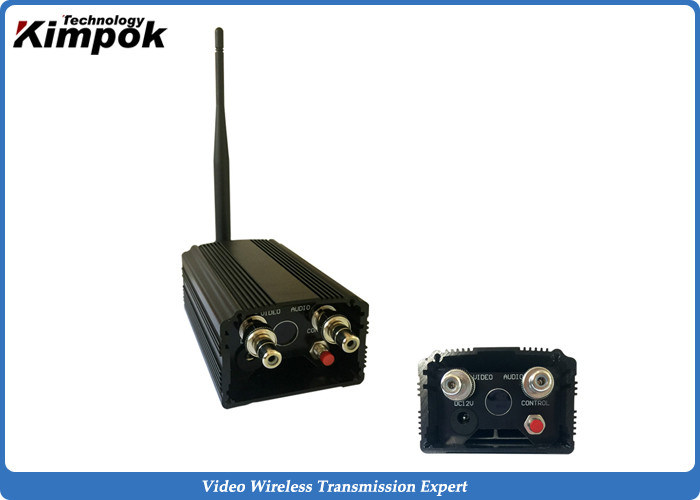

900Mhz - 1200Mhz FPV Drone Video Transmitter 5W Wireless AV Sender 8 Channels
Analog Video Transmitter Description:
KP-A5 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 2dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 5~10KM or so, if the raising of the high gain directional antenna, increased to 30KM away. And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.
It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.
Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.
Specification:
Voltage | DC 12V |
Current | 600mA |
Frequency | 0.9G/1.2G/1.3G |
Number of channels | 4CHs/8CHs Optional |
| Frequency Bands | 1.040Ghz; 1.080Ghz; 1.120Ghz; 1.160Ghz; 1.200Ghz; 1.240Ghz; 1.280Ghz; 1.320hz |
Transmit Power | 5000mW |
Video Output | 1 Vp-p(FM) |
Audio Output | 1 Vp-p(FM) |
Audio Carrier Ware | 5.5M 6.0M |
Distance | 5~10KM LOS, 1-3km NLOS on ground; up to 90km from air to ground |
Overall Configuration | Transmitter, receiver, AV cable, antenna |
Temperature | -10℃ ~ +50℃ |
Transmitter Weight | 388g |
Receiver Weight | 120g |
Dimensions (L * W * H) | Transmitter:111*67*60mm. Receiver:116*80*21mm |
Box size (L * W * H) | 245*160*65mm |
