800mW FPV Analog Video Transmitter Wireless For CCTV Surveillance System

Certification
China Kimpok Technology Co., Ltd certification
China Kimpok Technology Co., Ltd certification
I'm Online Chat Now

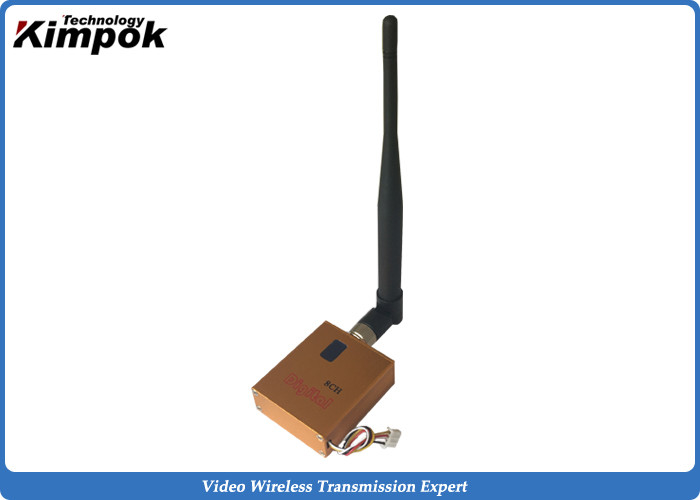

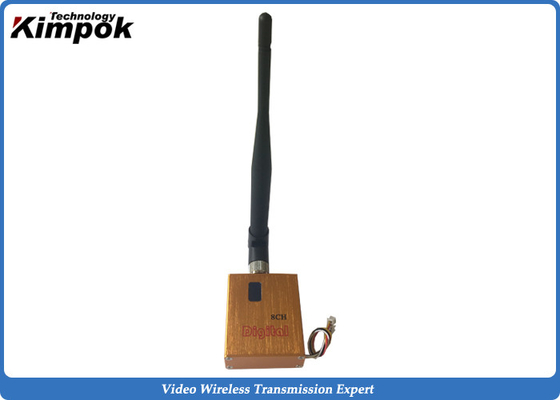

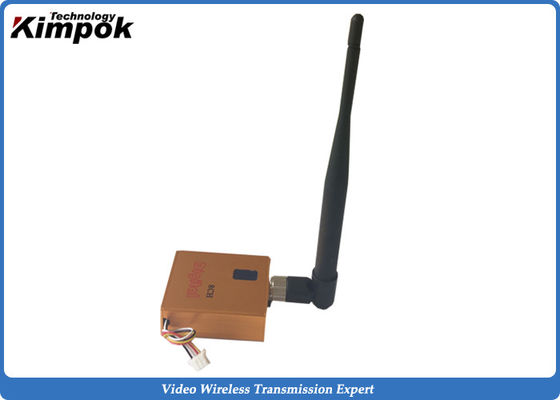

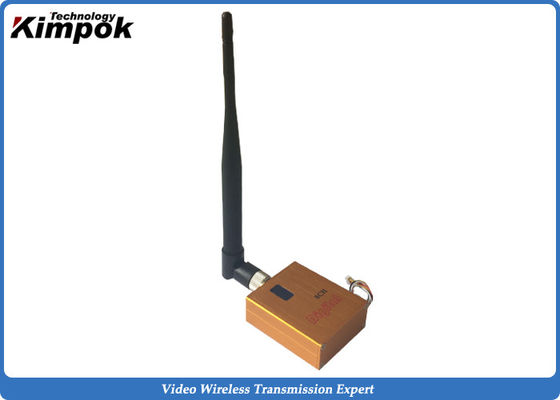

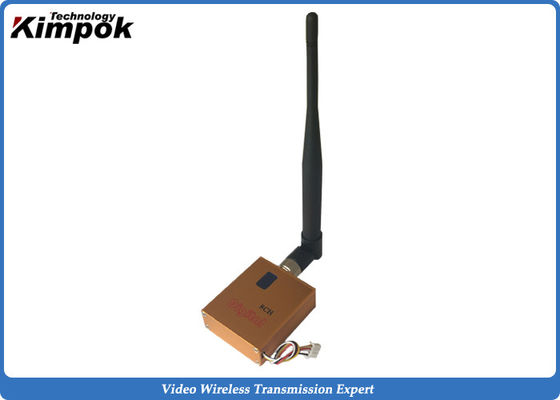

800mW FPV Analog Video Transmitter Wireless For CCTV Surveillance System

800mW FPV Analog Video Transmitter Wireless For CCTV Surveillance System
800mW FPV Analog Video Transmitter Wireless For CCTV Surveillance System 800mW FPV Analog Video Transmitter Wireless For CCTV Surveillance System 800mW FPV Analog Video Transmitter Wireless For CCTV Surveillance System 800mW FPV Analog Video Transmitter Wireless For CCTV Surveillance System 800mW FPV Analog Video Transmitter Wireless For CCTV Surveillance System

Large Image :  800mW FPV Analog Video Transmitter Wireless For CCTV Surveillance System

Product Details:
Place of Origin: China
Brand Name: Kimpok
Certification: CE/FCC/ROHS
Model Number: KP-A800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiaiton
Packaging Details: export standard packing
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 3,000pcs per month

800mW FPV Analog Video Transmitter Wireless For CCTV Surveillance System

Description
RF Power: 800mW Channels: 8 Channels
Frequency: 1200mHz Distance (Open Environment): 1000m-1400m
Temperature: -10℃ ~ +50℃ Dimensions: 48*45*19mm
Highlight:

CCTV Analog Video Transmitter

,

FPV Analog Video Transmitter

,

800mW CCTV Video Transmitter

800mW Wireless Analog Transmitter Zero Latency CCTV Surveillance System 1km Distance



Description:



KP-A800 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 0dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 1000-1500m or so. And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.



Features:



1. Wireless transmission: no need to set up communications cable

2. Image, audio sync, color black and white compatible

3. Small size, light weight, easy to carry, good installation

4. Responsive, timely, send and receive real-time transmission

5. Using FM mode, anti-interference ability, good image quality

6. Highly integrated, stable and reliable transmission distance

7. DC power supply, easy to use.

8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.



Specification:



Voltage DC 12V
Current 600mA
Frequency 0.9G/1.2G/1.3G
Number of channels 8CHs
Transmit Power 800mW
Video Output 1 Vp-p(FM)
Audio Output 1 Vp-p(FM)
Audio Carrier Ware 5.5M 6.0M
Distance (Open environment) 1000m-1500m

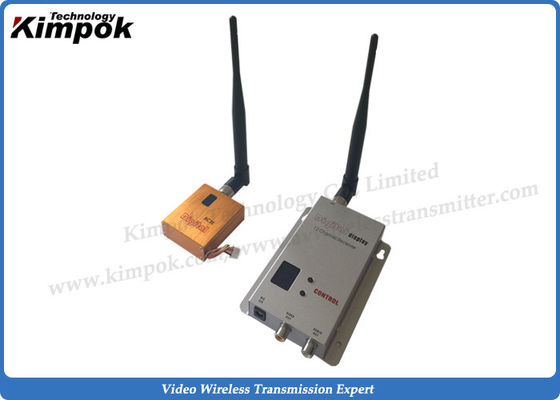

Overall Configuration Transmitter, receiver, AV cable, power supply, antenna
Temperature -10℃ ~ +50℃
Transmitter Weight 72g
Receiver Weight 120g
Dimensions (L * W * H) Transmitter:48*45*19mm. Receiver:116*80*21mm
Box size (L * W * H) 245*160*65mm

800mW FPV Analog Video Transmitter Wireless For CCTV Surveillance System 0
800mW FPV Analog Video Transmitter Wireless For CCTV Surveillance System 1

800mW FPV Analog Video Transmitter Wireless For CCTV Surveillance System 2



Installing:


A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack



B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation

C. Set the same channel with transmitter and receiver
