1.5Ghz 12 Channels Wireless Video Link 5-10km LOS for Drones / FPV

Certification
China Kimpok Technology Co., Ltd certification
China Kimpok Technology Co., Ltd certification
I'm Online Chat Now

1.5Ghz 12 Channels Wireless Video Link 5-10km LOS for Drones / FPV

1.5Ghz 12 Channels Wireless Video Link 5-10km LOS for Drones / FPV
1.5Ghz 12 Channels Wireless Video Link 5-10km LOS for Drones / FPV 1.5Ghz 12 Channels Wireless Video Link 5-10km LOS for Drones / FPV 1.5Ghz 12 Channels Wireless Video Link 5-10km LOS for Drones / FPV

Large Image :  1.5Ghz 12 Channels Wireless Video Link 5-10km LOS for Drones / FPV

Product Details:
Place of Origin: China
Brand Name: Kimpok Technology
Certification: CE
Model Number: KP-C15
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: export standard packing
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union,PayPal

1.5Ghz 12 Channels Wireless Video Link 5-10km LOS for Drones / FPV

Description
Frequency: 1.4G/1.5G/1.6G Transmit Power: 1500mW
Voltage: DC 12V Weight: 82g
Transmit Distance: 1000m ~ 3000m Number Of Channels: 12 Channels

1.5Ghz 12 Channels Wireless Video Link 5-10km LOS for Drones / FPV


Drones video transmitter Features:


  • Wireless transmission: no need to set up communications cable
  • Image, audio sync, color black and white compatible
  • Small size, light weight, easy to carry, good installation
  • Responsive, timely, send and receive real-time transmission
  • Using FM mode, anti-interference ability, good image quality
  • Highly integrated, stable and reliable transmission distance
  • DC power supply, easy to use.
  • Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.


Specification:



Voltage

DC 12V

Current

600mA

Frequency

1.4G/1.5G/1.6G

Number of channels

12 channels

Transmit Power

1.5W

Video Output

1 Vp-p(FM)

Audio Output

1 Vp-p(FM)

Audio Carrier Ware

5.5M  6.0M

Distance (Open environment)

1000m-3000m

Overall Configuration

Transmitter, receiver, AV cables, antennas

Temperature

-10℃ ~ +50℃

Transmitter Weight

82g

Receiver Weight

120g

Dimensions (L * W * H)

Transmitter: 73*41*14mm. Receiver:116*80*21mm

Box size (L * W * H)

245*160*65


Installing:

A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack

B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation

C. Set the same channel with transmitter and receiver

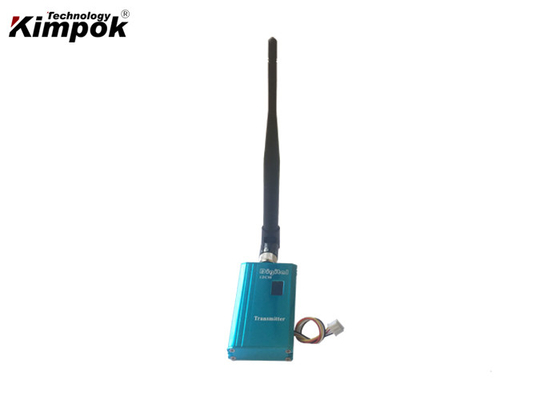

1.5Ghz 12 Channels Wireless Video Link 5-10km LOS for Drones / FPV 0

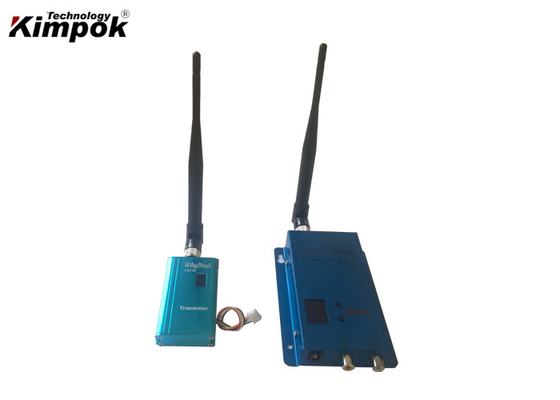

1.5Ghz 12 Channels Wireless Video Link 5-10km LOS for Drones / FPV 1

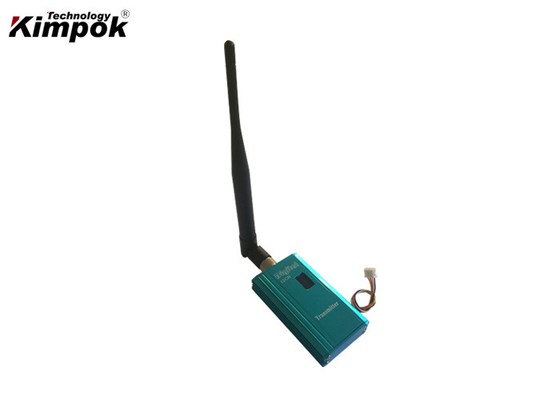

1.5Ghz 12 Channels Wireless Video Link 5-10km LOS for Drones / FPV 2



FAQ:

Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.

Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.

Our Service:



  • One-stop ODM/OEM solution;
  • 24-hour technical support;
  • Lifelong maintenance (Replacement parts will be charged after a year);
  • Provide professional system design and construction;
  • You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
