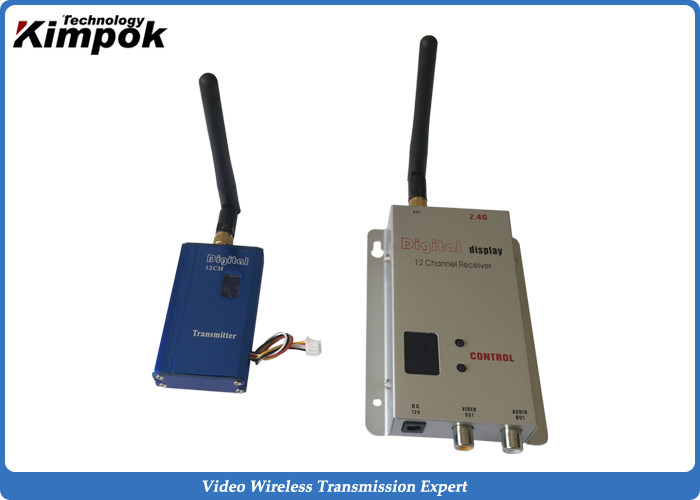

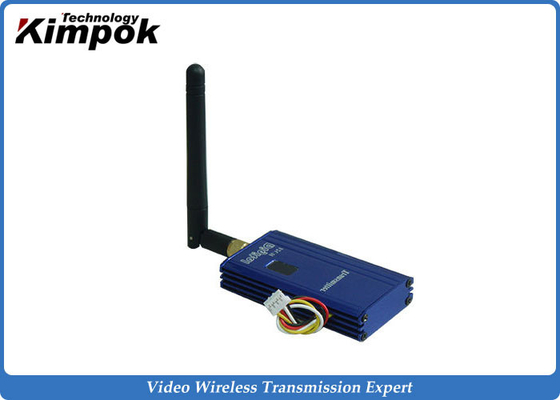

2.4GHz FPV Analog Video Transmitter And Receiver 1000mW 12 Channels

2.4GHz FPV Analog Video Transmitter And Receiver 1000mW 12 Channels
2.4GHz FPV Analog Video Transmitter And Receiver 1000mW 12 Channels 2.4GHz FPV Analog Video Transmitter And Receiver 1000mW 12 Channels

Large Image :  2.4GHz FPV Analog Video Transmitter And Receiver 1000mW 12 Channels

Product Details:
Place of Origin: China
Brand Name: Kimpok Technology / OEM
Certification: CE/ROHS/FCC/SGS
Model Number: KP-B1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Export standard packing
Delivery Time: 3-7 days
Payment Terms: T/T, PayPal or western Union
Supply Ability: 3,000pcs per month

2.4GHz FPV Analog Video Transmitter And Receiver 1000mW 12 Channels

Description
Transmit Power: 1000mW Channels: 12 Channels
Frequency: 2.2G/2.3G/2.4G Voltage: DC-12V
Transmit Distance: 1000~3000m Dimension: 72*43.5*13.5mm
Highlight:

2.4GHz Analog Video Transmitter And Receiver

,

FPV Analog Video Transmitter And Receiver

,

1000mW Video Transmitter And Receiver

2.4GHz FPV Radio 8 Channels Analog Video Transmitter and Receiver 1000mW



Description:


Kimpok is the wireless security provider of choice for police departments, private investigators, UAV hobbyist, and federal agencies nationwide, in large part due to our range of wireless video transmission devices. Our selection of state-of-the-art wireless video transmitters and receivers, wireless video links, antennas, and wireless sensors, are designed so you can place your cameras where you need them, without the concern of running video cable.

Our wireless video receiver and transmitter options are used for a variety of demanding applications, including long range wireless video transmission and remote video surveillance. Our 1.2 GHz / 2.4 GHz / 5.8 GHz wireless links offer a cost-effective and scalable wireless solution; these wireless access points let you send multiple camera signals to a single receiver, reducing overall system cost.

Whatever your wireless surveillance application or budget, we can find the right solution for you. Contact us! We can customize any solution to fit your requirements.


Features:

1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

Specification:



Voltage

DC 12V

Frequency

2.2G/2.3G/2.4G

Number of channels

12 Channels

Transmit Power

1000mW

Video Output

1 Vp-p(FM)

Audio Output

1 Vp-p(FM)

Audio Carrier Ware

5.5M  6.0M

Distance (Open environment)

1000m-3000m

Overall Configuration

Transmitter, receiver, video cable, power supply, antenna

Temperature

-10℃ ~ +50℃

Transmitter Weight

85g

Receiver Weight

120g

Dimensions (L * W * H)

Transmitter: 72*43.5*13.5mm. Receiver:116*80*21mm

Box size (L * W * H)

245*160*65mm


Installing:


A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack


B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation


C. Set the same channel with transmitter and receiver



Ease of Installation

Wireless transmissions perform the same job as wired transmissions; both convey information from point A to point B. The difference with wireless is that there is nothing to see, nor cable to pull — it’s invisible! This, of course, makes the installation of a video security system fast while maintaining a professional appearance.

Temporary Needs

Wireless video security systems are an excellent choice when individuals or businesses need to temporarily monitor a room or specific valuables. It allows people to secure their valuables without making any permanent modifications to their home or business. This makes a wireless system the best choice for CCTV surveillance of rental properties or apartments.

Covert Applications

Whether the application is indoor or outdoors, wireless video is almost always preferred over using cabling for covert use. Wireless video minimizes the chance of detection during installation and monitoring, and reduces the chances that the suspect(s) will discover the gear. In many cases, wireless video is the only option for covert needs.
