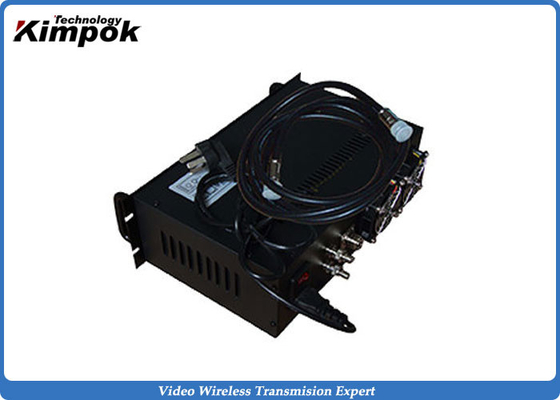

10W Long Range Video Transmitter 1.2Ghz Wireless Image Sender 4 Channels

10W Long Range Video Transmitter 1.2Ghz Wireless Image Sender 4 Channels
10W Long Range Video Transmitter 1.2Ghz Wireless Image Sender 4 Channels 10W Long Range Video Transmitter 1.2Ghz Wireless Image Sender 4 Channels

Large Image :  10W Long Range Video Transmitter 1.2Ghz Wireless Image Sender 4 Channels

Product Details:
Place of Origin: China
Brand Name: Kimpok
Certification: CE
Model Number: KP-A10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: export standard packing
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 1000 pcs Per Month

10W Long Range Video Transmitter 1.2Ghz Wireless Image Sender 4 Channels

Description
Frequency: 0.9G/1.2G/1.3G Number Of Channels: 4 Channels
Transmit Power: 10W Voltage: AC 220V
System: PAL/NTSC Transmit Distance: 10 ~ 30KM
Highlight:

wireless analog transmitter and receiver

,

cctv wireless transmitter


10~30KM Long Range Video Transmitter 1.2Ghz Wireless Image Sender 4 Channels

Description:

KP-A10 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 0dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 10~30KM or so, if the raising of the high gain directional antenna, increased to 60KM away. And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.

It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.

Features:

1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

Specification:



Voltage

AC 220V

Current

600mA

Frequency

0.9Ghz/1.2Ghz/1.3Ghz

Number of channels

4CHs

Transmit Power

10W

Video Output

1 Vp-p(FM)

Audio Output

1 Vp-p(FM)

Audio Carrier Ware

5.5M  6.0M

Distance (Open environment)

10~30KM

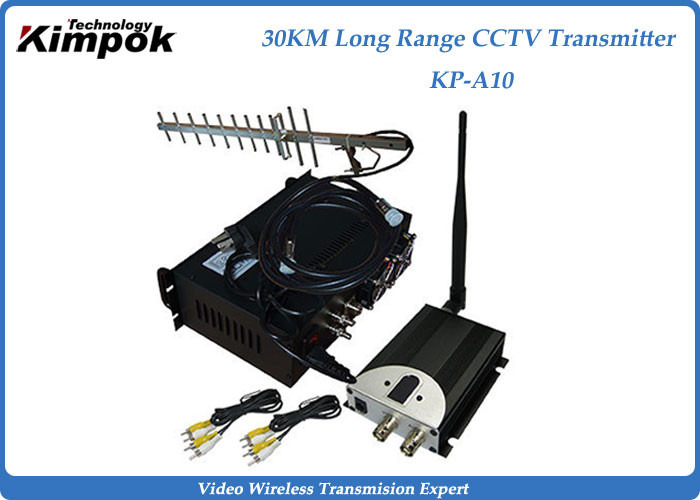

Overall Configuration

Transmitter, receiver, AV cable, power supply, antenna

Temperature

-10℃ ~ +50℃

Transmitter Weight

3168g

Receiver Weight

120g

Dimensions (L * W * H)

Transmitter:305*104*97mm. Receiver:116*80*21mm

Box size (L * W * H)

245*160*65mm


Installing:

A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack

B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation

C. Set the same channel with transmitter and receiver

 10W Long Range Video Transmitter 1.2Ghz Wireless Image Sender 4 Channels 0

Kimpok is specialized in COFDM, TDD and Analog wireless video transmission products for over 10 years, including Wireless Video Transmitter, HD Video Wireless Transmitter and Receiver, quality UAV/UGV Wireless Video Transmitter, and CCTV Wireless Sender, products are applied widely among Public Security Bureaus, Forest Fire Prevention Departments, Maritime Bureaus, Oil Field, Construction Sites, Tunnels, UAV, UGV, Automobiles and so on.


Our Service



1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
