Product Details:
|
| Voltage: | DC 12V | Transmit Power: | 10 Watt |
|---|---|---|---|
| Frequency: | 5.8Ghz | Distance: | 5-10KM LOS On Ground |
| Dimensions: | 200*80*30mm | Weith: | 300g |
| High Light: | wireless analog transmitter and receiver,analog wireless transmitter |
||
Hight Power 5.8GHz Security Wireless Video Transmitter and Receiver with 10 Watt
Security Monitoring Video Transmitter Description:

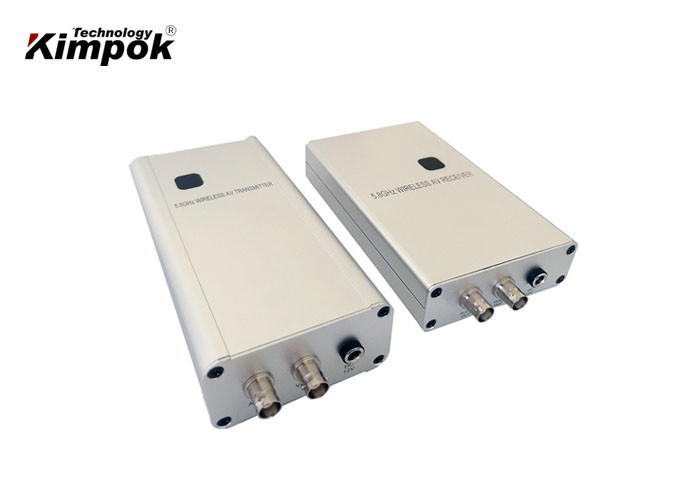

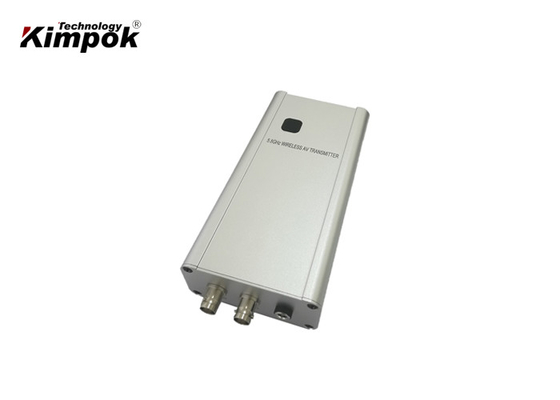

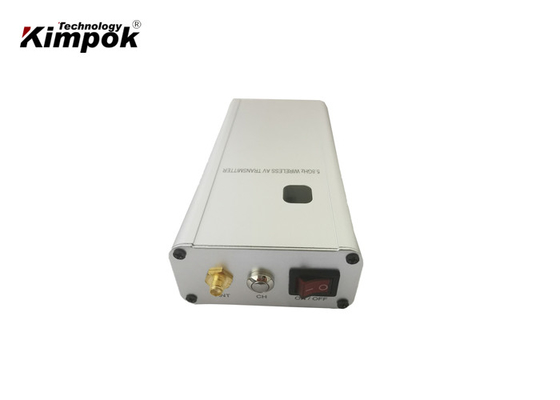

KP-58TX10W wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. Transmitter is comes with hight gain directional antenna to ensure the transmission distance of 10-20km LOS on ground, and 5-10km NLOS.
The high quality transmitter and receiver is with strong power of 10W full power and stable signal, It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Voice signals at the same time.
Specification:
| Voltage | DC 12V |
| Frequency | 5.8Ghz |
| Frequency Band | 5.72 GHz, 5.74 GHz, 5.76 GHz, 5.78 GHz, 5.80 GHz, 5.82 GHz, 5.84 GHz, 5.86 GHz |
| Number of channels | 8CHs |
| Transmit Power | 10W |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Overall Configuration | Transmitter, receiver, BNC AV cables, antennas |
| Temperature | -10℃ ~ +50℃ |
| Transmitter Weight | 300g |
| Receiver Weight | 200g |
| Dimensions (L * W * H) | Transmitter:200*80*30mm. Receiver:170*90*30mm |
Features:
