Product Details:
|
| Frequency: | 5.8Ghz | Channels: | 9 Channels |
|---|---|---|---|
| Transmit Power: | 1200mW | Voltage: | DC-12V |
| Transmit Distance: | 1000 ~ 2500m | Dimension: | 70*38*18.5mm |
| High Light: | 1200mW Analog Video Transmitter,CCTV Analog Video Transmitter,5.8Ghz Wireless CCTV Video Transmitter |
||

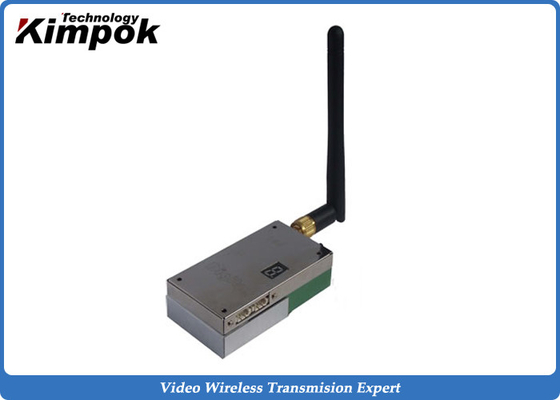

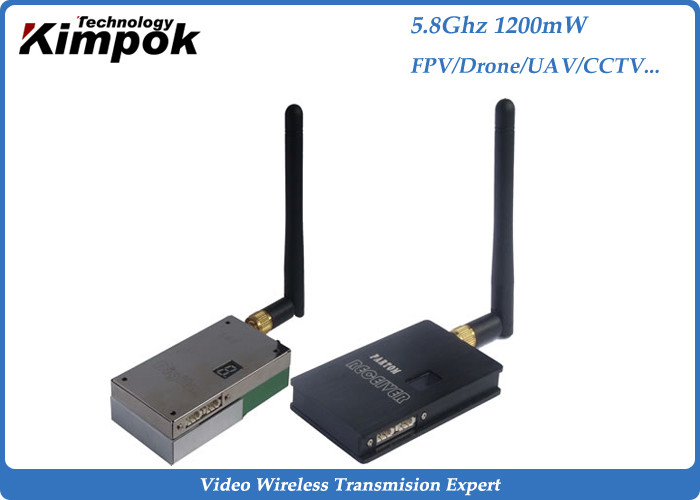

1200mW Analog Video Transmitter , 5.8Ghz Wireless CCTV Video Transmitter & Receiver
5.8Ghz Wireless Transmitter Description:
KP-FPV5812 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment.
It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.
Features:
Specification:
|
Voltage |
DC 12V |
|
Current |
700mA |
|
Frequency |
5.8Ghz |
| Frequency Band | 5.72 GHz, 5.74 GHz, 5.76 GHz, 5.78 GHz, 5.80 GHz, 5.82 GHz, 5.84 GHz, 5.86 GHz, 5.88 GHz |
|
Number of channels |
9CHs |
|
Transmit Power |
1200mW |
|
Video Output |
1 Vp-p(FM) |
|
Audio Output |
1 Vp-p(FM) |
|
Audio Carrier Ware |
5.5M 6.0M |
|
Distance (Open environment) |
1000m-2500m |
|
Overall Configuration |
Transmitter, receiver, AV cable, power supply, antenna |
|
Temperature |
-10℃ ~ +50℃ |
|
Transmitter Weight |
65g |
|
Receiver Weight |
67g |
| Whole Set Weight | 395g |
|
Dimensions (L * W * H) |
Transmitter: 70*38*18.5mm. Receiver:72*43*11mm |
|
Box size (L * W * H) |
245*160*65mm |
Our Service
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
