Product Details:
|
| Product Name: | 5.8Ghz Fpv Wireless Video Transmitter | Channels: | 9 Channels |
|---|---|---|---|
| Transmit Power: | 1200mW | Voltage: | DC-12V |
| Weight: | 65g | Dimension: | 70*38*18.5mm |
| High Light: | analog wireless transmitter,cctv wireless transmitter |
||

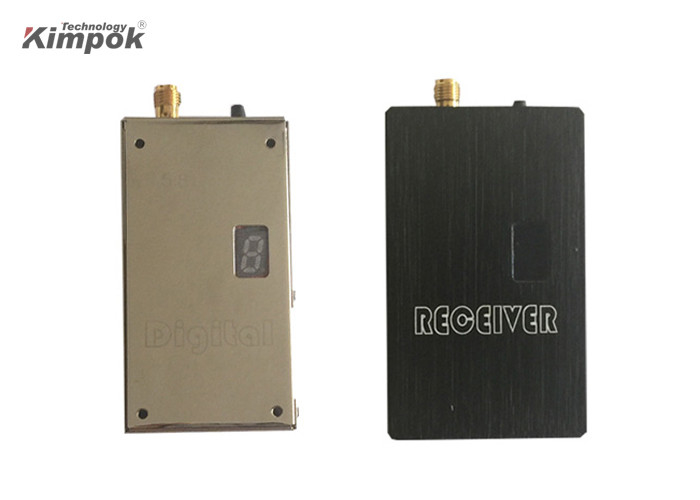

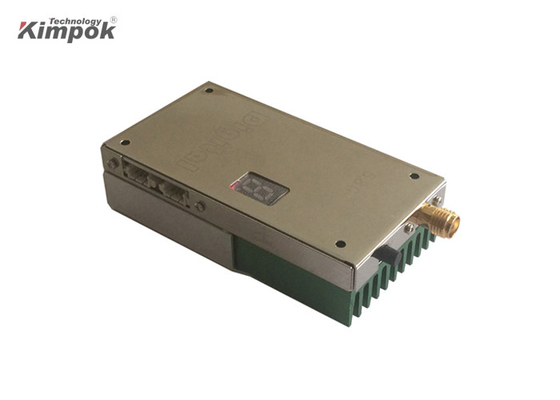

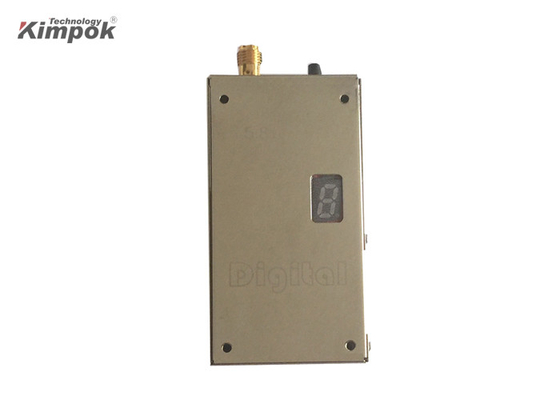

5.8Ghz 1W Analog Wireless Video Transmitter 10km FPV Robot AV Transmission System
Lightweight FPV video link Features:
Specification:
| Voltage | DC 12V |
| Current | 700mA |
| Frequency | 5.8Ghz |
| Frequency Band | 5.72 GHz, 5.74 GHz, 5.76 GHz, 5.78 GHz, 5.80 GHz, 5.82 GHz, 5.84 GHz, 5.86 GHz, 5.88 GHz |
| Number of channels | 9CHs |
| Transmit Power | 1200mW |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Distance (Open environment) | 1000m-2500m |
| Overall Configuration | Transmitter, receiver, AV cable, power supply, antenna |
| Temperature | -10℃ ~ +50℃ |
| Transmitter Weight | 65g |
| Receiver Weight | 67g |
| Whole Set Weight | 395g |
| Dimensions (L * W * H) | Transmitter: 70*38*18.5mm. Receiver:72*43*11mm |
| Box size (L * W * H) | 245*160*65mm |
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
