Product Details:
|
| Frequency: | 1.2Ghz | Number Of Channels: | 4 CHs |
|---|---|---|---|
| Transmit Power: | 7000mW | Voltage: | DC 12V |
| Weight: | 100g | Transmit Distance: | 3-6km On Ground; Up To 20km From Air To Ground |

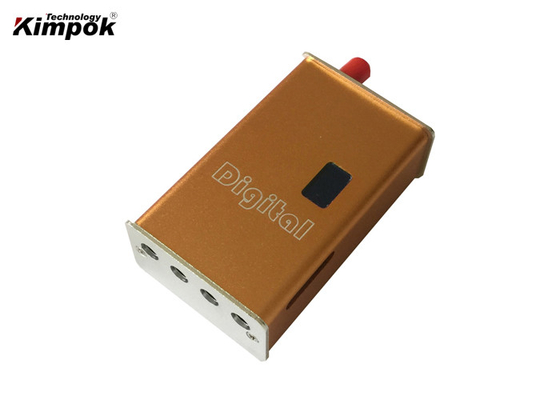

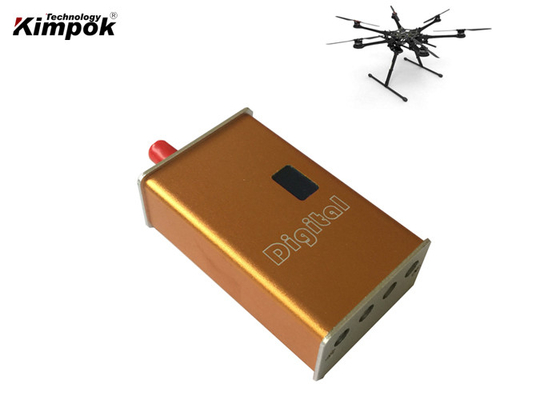

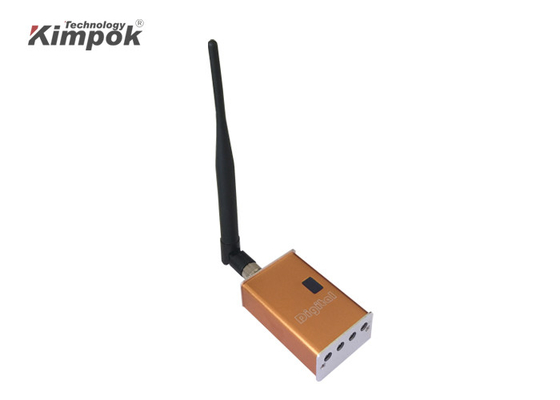

1.2Ghz 7W Wireless Analog Video Transmitter with 12V DC for FPV and Drones
FPV Drones Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.
Transmitter parameter:
| Output | 7000mW |
| Current Consumption | 1.5A |
| Frequency | 1.2Ghz |
| Channel | 4CH |
| Band | 1080 MHz, 1120 MHz, 1160 MHz, 1200 Mhz |
| Output impedance | 50 Ohm |
| Audio input impedance | 1k Ohm |
| Audio input amplitude | 1.2Vp-p |
| Video input impedance | 75 Ohm |
| Video input amplitude | 1.2Vp-p |
| Voltage | DC 12V(at 36dbm) |
| Working current | 700mA |
| The lowest Voltage | DC 5V(at 31dbm) |
| Weight | 100g |
| Size | 74*56*36mm |
| Accessories | transmitter, antenna, Tx cable |
Receiver parameter:
| Frequency | 1.2Ghz |
| Channel | 12CH |
| Working voltage | DC 12V |
| Current consumption | 260mA |
| Weight | 115g |
| Size | 115*80*21mm |
| Accressories | receiver, antenna, AV cable |
Pictures:
Our Service:
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
