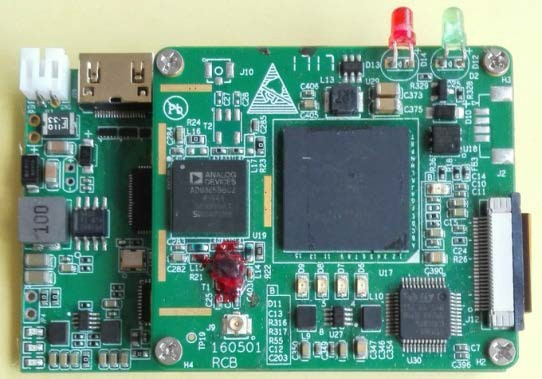

FHD Wireless COFDM Module For Video Transmitter CVBS Output H.265

Modulation: COFDM 2K Frequency: 170MHz~850MHz Or Other Frequency Customized
Video Output: HDM-I Video Compression: H.265
Data Input: RS232/RS485/TTL DC Input: DC5V~DC14V
High Light:

Transmitter COFDM Module


H.265 COFDM Module


CVBS wireless video transmitter module

FHD Wireless COFDM Video Transmitter Module with CVBS Output H.265


Wireless Video transmitter module Introduction:


Feature and port:


  • H.264 video decompression playback function, maximum support 1080P@60fps decoding playback, backward compatible with other various resolutions, frame rate decoding playback. It can realize the low-latency high-definition digital wireless image transmission function. The minimum video delay can be about 60ms at 720P@60, and the minimum video delay can be about 130ms at 1080P@60. This delay refers to the delay from the HDMI video input at the transmitter to the HDMI output display at the receiver, excluding the delay of the front-end camera at the transmitter (we measured the delay of a certain brand of SLR camera to be around 70ms, and a well-known brand of sports camera to have a delay of around 130ms).
  • Audio and video output:
  • HDMI-A type port audio and video output (HDMI out)
  • AV audio and video output (6PIN port)
  • USB Host interface output to mobile phone or tablet
  • Ethernet port output
  • Support AES decryption function (match the encryption of the transmitter, set the password through the configuration panel)
  • Parameter configuration serial port (Config UART): It can be connected to a PC or a parameter control panel for parameter configuration, and it can also be connected to other upper computers for parameter configuration (such as drone remote control). Config UART is TTL 3.3v level.
  • Transparent data transmission serial port (Data UART), TTL 3.3v level
  • USB Host port
  • External U disk/mobile hard disk storage
  • Stream the video to the mobile phone/tablet, and realize the simultaneous display of HDMI, AV and mobile phone video at the same time
  • TF card interface (used for software upgrade and maintenance, data storage, etc.)
  • Keys+LEDs: can lead to power indicator light, RF signal receiving indicator light, record indicator light, OSD on/off button, Record


Transmitter parameter:


Frequency 170MHz~850MHz or other frequency customized
Video coding H265/H.264/MPEG
Modulation COFDM
Consumption <40W
Encryption AES 128 bits
Constellation QPSK(4QAM),16QAM,64QAM
FEC 1/2 2/3 3/4 5/6 7/8
Guard Interval 1/32 1/16 1/8 1/4
Carrier 2K,8K
Bandwidth 2/3/4/6/7/8MHz (option)
Data RS232, up to 115200bps baud rate
Video rate 200kps~20000kps (adjustable)
Video input HDMI,CVBS,AHD,SDI,Ethernet
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
Working voltage DC12V
Working Temperature -20℃ -- +55℃
Dimension 70*45*4mm
Weight 50g

Receiver module specification:


Frequency 170MHz~850MHz or other frequency customized
Bandwidth 2/3/4/5/6/7/8MHz (option)
RF input level -94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance 50Ω
RF input type N type
Modulation COFDM
Constellation QPSK,16QAM,64QAM(adjustable)
FEC 1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier 2k
Guard Interval 1/32,1/16,1/8,1/4(adjustable)
Video coding H.264/H.265
Video resolution 1920*1080P/I@60fps
Audio output Stereo unbalance 300/ 200mv
AV output HDMI,AV,Ethernet
Working voltage AC220V/DC12V <1A
working temperature -20℃~+50℃
Dimension 129*90*17mm
Weight 25g
