Wifi Outdoor RF Antenna

Wifi Outdoor RF Antenna
Wifi Outdoor RF Antenna

Large Image :  Wifi Outdoor RF Antenna

Product Details:
Place of Origin: China
Brand Name: Kimpok Technology / OEM
Certification: CE
Model Number: KP-2400BH60-18
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: International packing
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 1000pcs/month

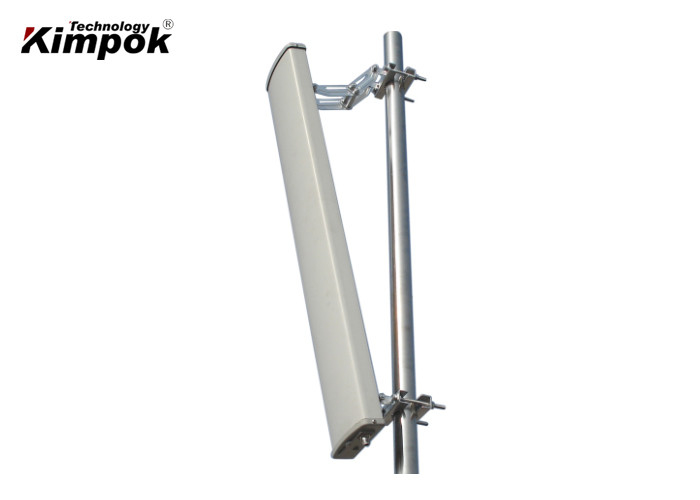

Wifi Outdoor RF Antenna

Name: Panel Antenna Frequency: 2300~2700MHz
Gain: 18dBi Bandwidth: 400MHz
Vertical Beamwidth: Horizontal Beamwidth: 60°
High Light:

18dbi Outdoor RF Antenna


LTE Outdoor RF Antenna


2400MHz Wifi Antenna Outdoor

18dbi LTE Wifi Outdoor RF Antenna Vertical Polarization Sector Antenna 2400MHz




KP-2400BH60-18 High Gain Indoor Directional Panel Antenna is designed for use with wireless devices operating in the 2.4GHz frequency band such as 802.11 standard wireless access points and routers. It provides a Gain of 12dBi to give your wireless network an extended operating range. For best performance, users can use an antenna of the same Gain (12dBi) or higher, at the other end of the connection to take advantage of this antenna’s powerful signal transmission1. The antenna can be used at homes, businesses or public hotspots.




Category Panel Antennas
Frequency Range-MHz 2300~2700
Bandwidth-MHz 400
Gain-dBi 18
Horizontal Beamwidth-° 60
Vertical Beamwidth-° 7
F/B Ratio-dB ≥25
VSWR ≤1.5
Nominal Impedance-Ω 50
Polarization Vertical
Maximum Power-W 100
Weight-kg 6
Rated Wind Velocity-m/s 60
Connector N female
Mounting Mast Diameter-mm Ø50~70
