Product Details:
|
| Product Name: | 5W Analog Video Transmitter | Frequency: | 1.2Ghz |
|---|---|---|---|
| Transmit Power: | 5 Watt | Voltage: | 12V DC |
| Number Of Channels: | 8 Channels | Video Input: | CVBS |
| High Light: | Analog Video Transmitter 10km,Analog Video Transmitter 1.2GHz,CVBS Analog Wireless Video Transmitter |
||

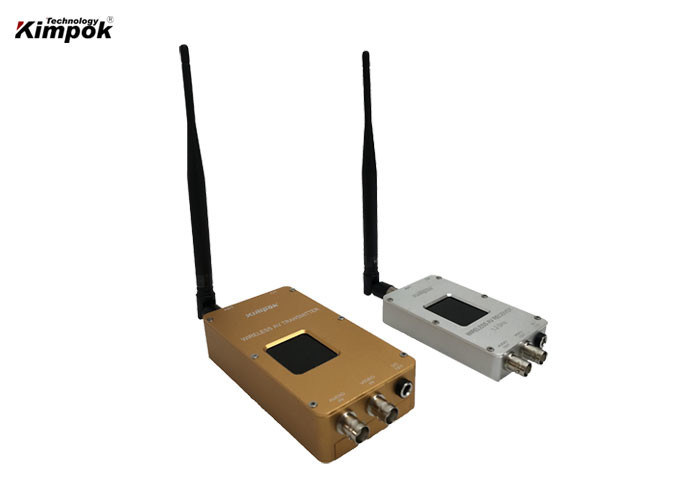

1.2GHz 5W Analog Video Transmitter for Wireless CCTV Surveillance 8 Channels
Analog Wireless AV transmitter Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.
Tx Specification:
|
Voltage |
12V DC |
|
Current |
2A |
|
Frequency |
1.2GHz |
|
Number of channels |
8 Channels |
| Frequency band |
1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz, 1.240Ghz, 1.280Ghz, 1.320Ghz, 1.360Ghz |
|
Transmit Power |
5W |
|
Video Output |
1 Vp-p(FM) |
|
Audio Output |
1 Vp-p(FM) |
|
Audio Carrier Ware |
5.5M 6.0M |
|
Distance (Open environment) |
5~10km |
|
Overall Configuration |
Transmitter, AV cable, high gain antenna |
|
Temperature |
-10℃ ~ +50℃ |
|
Transmitter Weight |
200g |
|
Receiver Weight |
90g |
|
Dimensions (L * W * H) |
Transmitter:150*65*30mm. Receiver: 100*60*20mm |
Rx specification:
| Frequency | 1.2Ghz |
| Channel | 8 channels |
| Frequency band | 1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz, 1.240Ghz, 1.280Ghz, 1.320Ghz, 1.360Ghz |
| Working voltage | DC 12V |
| Current consumption | 0.3A |
| Weight | 90g |
| Size | 120*60*20mm |
| Accressories |
receiver, antenna, AV cable |
Our Service:
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
