Product Details:
|
| Product Name: | Fpv/uav/robot Wireless Video Transmitter | Modulation: | FDD-COFDM |
|---|---|---|---|
| Frequency: | 300-1400MHz Option | RF Power: | 5 Watt (37dBm) |
| Encryption: | AES 128bits | Power: | 12V DC |
| High Light: | 100km LOS COFDM IP Transmitter,AES Encryption COFDM IP Transmitter,FPV COFDM IP Transmitter |
||

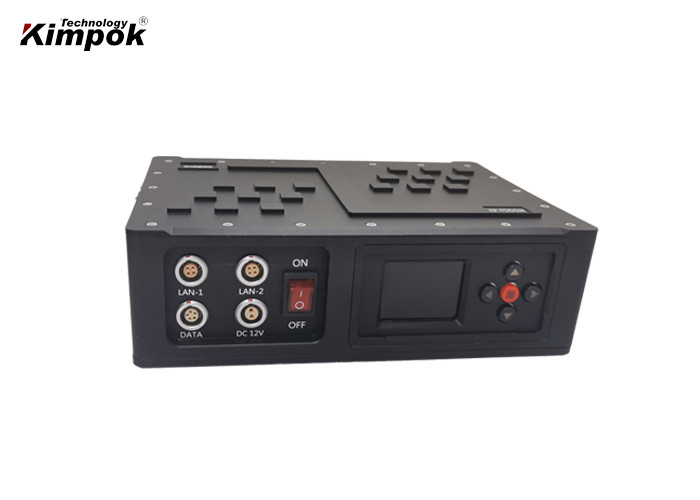

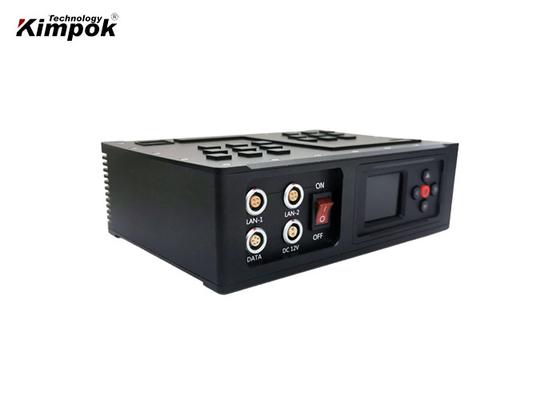

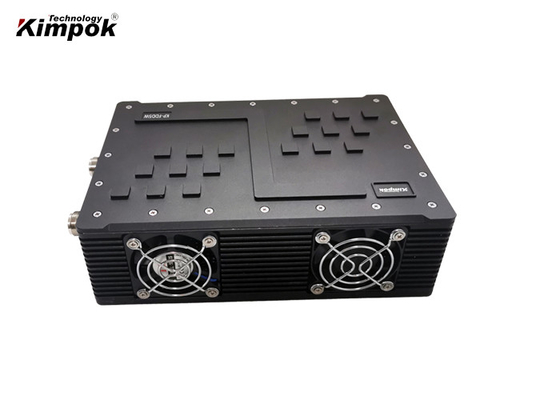

70~100km LOS COFDM IP Transmitter with AES Encryption for FPV / UAV / Robots
Ethernet IP Transceiver Description:
KP-FDD5W FDD COFDM IP Transceiver is a new COFDM modulation bidirectional video & data link with 5 watt output power for portable purpose. Implement of super narrowband (1MHz), low-latency and high-sensitivity capacity that is ideal for long-distance transmission and non-line-of-sight (NLOS) applications. With highly integrated embedded design, super-linear digital predistortion RF design and network, modulation and demodulation, full-band RF output All-in-One which help you complete the design of long-distance wireless links more conveniently and quickly.
It is mainly used for multi-channel video transmission required with RS232/TTL signals, unmanned control systems, and intelligent control system.
Ethernet video data link Specification:
| Product model | KP-FDDD5W | ||
|
Modulation
|
COFDM 2K
|
||
|
Working voltage
|
DC 11-14V
|
||
|
Working current
|
2.7A 12V
|
||
|
TX output frequency
|
550MHz (300-2500MHz selection)
|
||
|
RX input frequency
|
350MHz (300-2500MHz selection)
|
||
|
RF bandwidth
|
1/2/4/8MHz
|
||
|
Output power
|
5 watt
|
||
|
Encryption/decryption mode
|
AES128 bits
|
||
|
Transfer rate
|
2x30 Mbit/s uplink and downlink
|
||
|
RF connector
|
N-type *2
|
||
|
Ethernet
|
Standard RJ45 port *2
|
||
|
Serial port
|
RS232/RS485 serial port,115200bps maximum
|
||
|
LCD panel with keypad
|
Easy to set the related parameters
|
||
|
Dimension
|
200*130*60mm
|
||
|
Weight
|
1.75kg
|
||
◆ Bi-directional video/data wireless communication
◆ Low latency and great data send from end to end
◆ Provides great transfer rate for uplink and downlink
◆ 5W RF power output
◆ Transparent IP ethernet and serial data telecommunication in sync
◆ Dual frequency is ideal for IP solution long-distance required
◆ Dynamic AES encryption 128bits
◆ Narrowband 1M/2M/4M/8MHz available
◆ Work well in NLOS fast moving condition
◆ Small in size, lightweight and low consumption
◆ Easy operation and deployment
