Product Details:
|
| Product Name: | 1200Mhz Video Link | Frequency: | 1.2Ghz |
|---|---|---|---|
| Transmit Power: | 5 Watt | Current: | 2A |
| Number Of Channels: | 8 Channels | Video Input: | BNC |
| High Light: | 30km FPV Wireless Video Transmitter,1200Mhz FPV Wireless Video Transmitter,FPV Analog Video Transmitter |
||

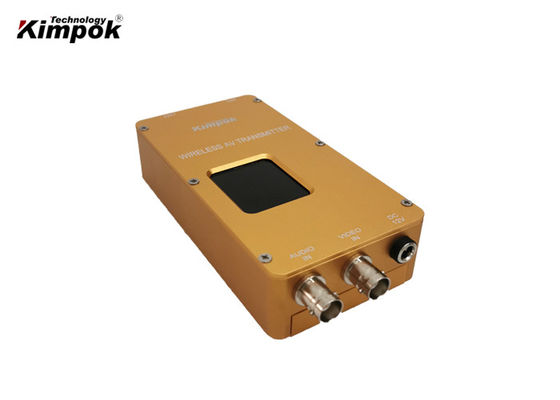

30km LOS FPV Wireless Video Transmitter 1200Mhz AV Link 8 Channels
FPV video transmitter Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.
Tx Specification:
|
Voltage |
12V DC |
|
Current |
2A |
|
Frequency |
1.2GHz |
|
Number of channels |
8 Channels |
| Frequency band |
1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz, 1.240Ghz, 1.280Ghz, 1.320Ghz, 1.360Ghz |
|
Transmit Power |
5W |
|
Video Output |
1 Vp-p(FM) |
|
Audio Output |
1 Vp-p(FM) |
|
Audio Carrier Ware |
5.5M 6.0M |
|
Distance (Open environment) |
5~10km LOS on ground; 30km from air to ground |
|
Overall Configuration |
Transmitter, AV cable, high gain antenna |
|
Temperature |
-10℃ ~ +50℃ |
|
Transmitter Weight |
200g |
|
Receiver Weight |
90g |
|
Dimensions (L * W * H) |
Transmitter:150*65*30mm. Receiver: 100*60*20mm |
Rx specification:
| Frequency | 1.2Ghz |
| Channel | 8 channels |
| Frequency band | 1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz, 1.240Ghz, 1.280Ghz, 1.320Ghz, 1.360Ghz |
| Working voltage | DC 12V |
| Current consumption | 0.3A |
| Weight | 90g |
| Size | 120*60*20mm |
| Accressories |
receiver, antenna, AV cable |
Installing diagram:
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
