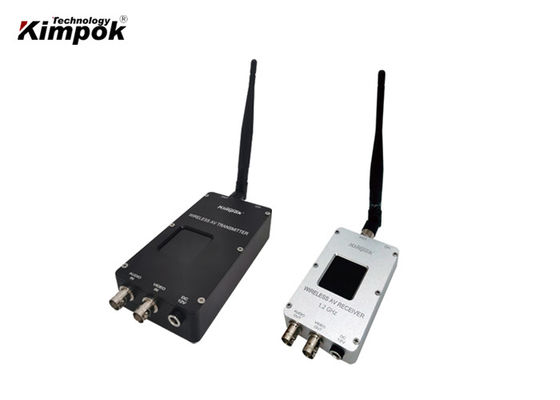

1200Mhz High Power Wireless AV Transmitter And Receiver With 4 Channels

1200Mhz High Power Wireless AV Transmitter And Receiver With 4 Channels
1200Mhz High Power Wireless AV Transmitter And Receiver With 4 Channels 1200Mhz High Power Wireless AV Transmitter And Receiver With 4 Channels 1200Mhz High Power Wireless AV Transmitter And Receiver With 4 Channels

Large Image :  1200Mhz High Power Wireless AV Transmitter And Receiver With 4 Channels

Product Details:
Place of Origin: China
Brand Name: Kimpok Technology / OEM
Certification: CE
Model Number: KP-12TX10W
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: export standard packing
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 1000 pcs Per Month

1200Mhz High Power Wireless AV Transmitter And Receiver With 4 Channels

Description
Product Name: Long Range Wireless AV Transmitter Video Input: BNC
Transmit Power: 10 Watt Frequency: 1200Mhz
Weight: 200g Channel: 4 Chennels
Highlight:

BNC AV Transmitter And Receiver

,

1200Mhz AV Transmitter And Receiver

,

FM Mode Analog Video Transmitter

1200Mhz High Power Wireless AV Transmitter and Receiver with 4 Channels



Analog wireless video transmitter Description:



If you are seeking an equipment that can transmit the audio and video to a long distance without cable, for example the villa, small lake, bridge or some other open areas, this transmitter system is the right one you need.
This equipment will cover a long distance in the open area around 10-20km LOS, 5km NLOS on ground, and 30km LOS from air to ground. But when there are obstacle between the transmitter and receiver, it will be decided case by case.
This unit is the professional one and the signal is very strong in 1.2 GHz series that can be used to cover the long distance where need strong signal and the industrial project.


Tx Specification:



Model KP-12TX10W

Voltage

12V DC

Current

2A

Frequency

1.2 GHz

Number of channels

4 Channels

Frequency band

1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz

Transmit Power

10 watt

Video Output

1 Vp-p(FM)

Audio Output

1 Vp-p(FM)

Audio Carrier Ware

5.5M  6.0M

Distance

10~20km LOS on ground, 30km from air to ground

Dimensions (L * W * H)

150*65*30mm

Temperature

-10℃ ~ +50℃

Transmitter Weight

200g

Accessories

Transmitter, AV cable, high gain antenna


Rx specification:



Frequency 1.2 Ghz
Channel 8 channels
Frequency band 1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz, 1.240Ghz, 1.280Ghz, 1.320Ghz, 1.360Ghz
Working voltage DC 12V
Current consumption 260mA
Weight 90g
Size 120*60*20mm
Accessories receiver, antenna, AV cable


Features:

1. Using FM mode, anti-interference ability, good image quality;
2. Image, audio sync, color black and white compatible;
3. Small size, light weight, easy to carry, good installation;
4. Responsive, timely, send and receive real-time transmission;
5. Wireless transmission: no need to set up communications cable;
6. Highly integrated, stable and reliable transmission distance;
7. DC power supply, easy to use;
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.


High gain antenna for Tx:

1200Mhz High Power Wireless AV Transmitter And Receiver With 4 Channels 0
Installing:

1200Mhz High Power Wireless AV Transmitter And Receiver With 4 Channels 1


Application:



It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.



FAQ:



Q1: What can I buy from you?

COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.

Q2: Why should I choose you?

Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.

Q3: Do you have a minimum order quantity?

No MOQ limit, 1pc is acceptable.

Q4: What kind of product service can I have?

OEM & ODM service.

Q5: What is the product warranty?

We offer two-year-warranty and lifelong maintenance.

Q6: What is the average lead time?

5-7 working days for regular model, and 20-30 working days for customized model.

Q7: What kinds of payment methods do you accept?

We accept bank transfer, Western Union, PayPal, or cash payment.

Q8: Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.



Our Service:



  • One-stop ODM/OEM solution;
  • 24-hour technical support;
  • Lifelong maintenance (Replacement parts will be charged after a year);
  • Provide professional system design and construction;
  • You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
  •
  •
