Product Details:
|
Type: | IP MESH Radio Network | RF Power: | 5 Watt |
---|---|---|---|
Sensitivity: | -96dbm@1.4Mhz | Encryption: | AES 128/256 Bits |
Bandwidth: | 1.4/3/5/10/20 Mhz | Networking Capability: | 32 Nodes |
Highlight: | FPGA IP Mesh Network,128 Nodes IP Mesh Network,IP Mesh Radio 5W |
FPGA IP Mesh Networking 128 Nodes Long Range 5W High Power Full Duplex
Mesh network features:
· High-speed hopping technology;
· Self-organizing network
· Self-encrypting security algorithm
· Wireless MESH network,bridge and PTZ control combination
· Transmit rate is peak 11Mbps@10MHz
· Support Wifi and GPS;
· Long range full duplex and NLOS telecommunication support
· Good diffraction and anti-interference;
· Small dimension, light weight,heat dissipation of aluminum case;
· Highly integrated modular combination design;
· Software configured, can see the topography
Specifications:
Transmission characteristics | ||||
Frequency | 1400MHz (other frequency can be customized) | 3G/4G module | support | |
RF bandwidth | 5/10/20 MHz (optional) | Hopping | 1000/1200hops/s (option) | |
RF output power | 1-5W (adjustable) | Encryption | AES 128 bits user-defined password | |
Shoulder ratio | 30dBm>-45dbc | Electrical characteristics | ||
Modulation | COFDM | Working voltage | DC12V | |
Modulation constellation | BPSK/QPSK/16QAM/64QAM | Working current | ≤2A | |
FEC | 1/2,2/3,3/4,5/6 | Power consumption | ≤20W | |
Sensitivity | -96dbm@1.4Mhz | The built-in filter characteristics | ||
Transfer rate | Peak 11Mbps@10MHz | |||
Cover distance | customized | Bandwidth | 1.4/3/5/10/20Mhz | |
Networking capability | up to 128 nodes | Out-of-band rejection | F0±10%≥44db | |
Data characteristics | ||||
Video input format | Videoinput:CVBS,1Vp-p@75Ω,PAL 720*576(D1) | Far-end≥80db | ||
IP video input:1080P IP Camera | Physical characteristics | |||
Audio input | MIC/PTT | Protection grade | IP65 | |
Audio output format | headphone | Working temperature | -20℃~+50℃ | |
Video compress format | H.264 | Storage temperature | -40℃~+80℃ | |
Video bit rate | 3Mbps Max | Dimension | 200×130×50mm | |
RS232 data serial port | 150bps~38.4kbps | Weight |
1.4kg 2.2kg with battery |
Description:

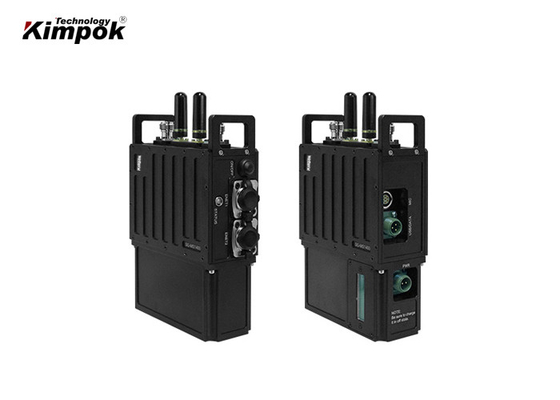

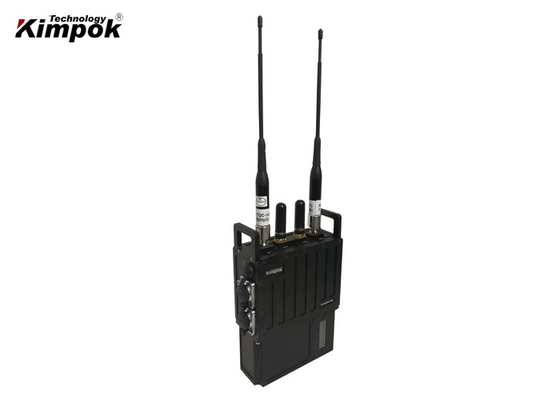

KP-MESH1405 is a new robust Ethernet wireless transceiver radio from Kimpok Technology, special designed for N-LOS (Non line of sight) wireless IP MESH communication. It provides complete bi-directional video data IP networks transmission in complex environment, work as PTP communication and PTMP self-organized networking, each mesh group can access up to 32 nodes. Since its OFDM modulation with narrow band technology that able to extend the cover range and better diffraction even in moving conditions.
As its very small size, lightweight and bridge capacities, which is ideal for motion surveillance with high quality image and emergency communication. Widely apply in tactical applications like law enforcement, public security and protection, police, army, fire control, emergency areas etc.
Application:
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
