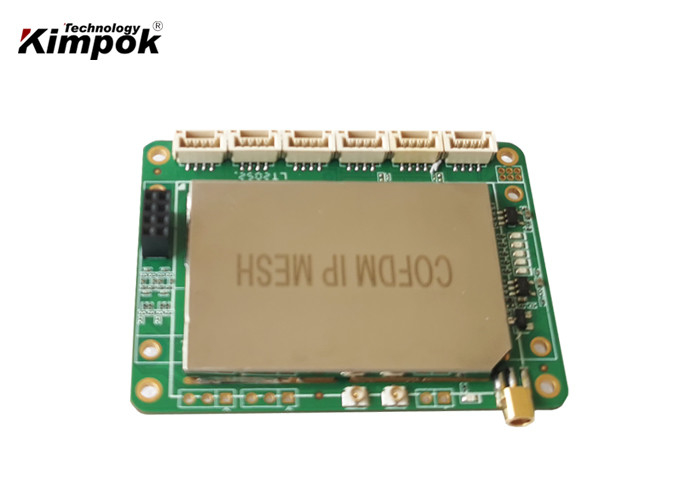

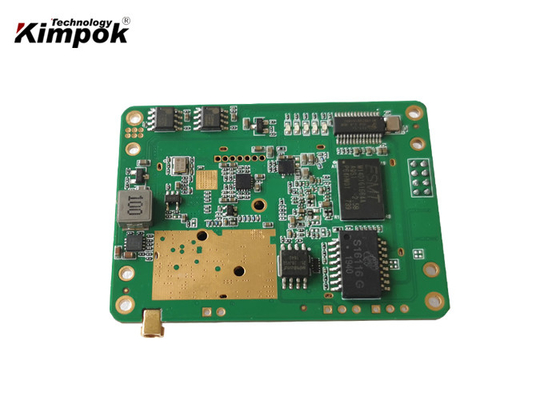

FPGA / LTE IP Mesh Baseband Board Multi-Hop Network 90Mbps

FPGA / LTE IP Mesh Baseband Board Multi-Hop Network 90Mbps
FPGA / LTE IP Mesh Baseband Board Multi-Hop Network 90Mbps FPGA / LTE IP Mesh Baseband Board Multi-Hop Network 90Mbps

Large Image :  FPGA / LTE IP Mesh Baseband Board Multi-Hop Network 90Mbps

Product Details:
Place of Origin: China
Brand Name: Kimpok Technology / OEM
Certification: CE
Model Number: KP-MESHBD04W
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: International packing
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 1000pcs/month

FPGA / LTE IP Mesh Baseband Board Multi-Hop Network 90Mbps

Product Name: IP Mesh Radio Modulation: COFDM LTE/FPGA (optional)
Bandwidth: 90Mbps Video Compression: AES 128/256 Bits
Nodes: 128 Nodes DC Input: DC9V~DC24V
High Light:

FPGA Baseband Board


IP Mesh Baseband Board



FPGA / LTE IP Mesh Baseband Board Multi-hop Network 90Mbps


Mesh Network Specifications:


RF Features
Frequency Range 800MHz/1.4GHz/2.4GHz, other frequencies are customized
RF Power 4W
Modulation COFDM LTE/FPGA (optional)
Constellation modulation BPSK/QPSK/16QAM/64QAM(Adaptive)
FEC 1/2,2/3,3/4,5/6(Optional)
Sensitivity -96dBm@20Mhz 6Mbps
Channel width 2.5M/5M/10M/20M/40MHz (adjustable)
Bandwidth 90Mbps
Networking Capacity 128 Nodes
Electric Features
Working Voltage DC 9-24V
Working Current 1A(Typical Value)
Data Features
Video Input Format Support IP Video Input
Audio Input Format MIC/PTT
Encryption AES128 or User Defined
Built-in Module Wi-Fi/Blue-tooth/GPS/Beidou
Physical Features
Protection Grade IP65
Working Temperature -20℃ ~ +55℃
Storage Temperature -50℃ ~ +70℃
Dimension 100*63*14mm
Weight 20g


Main feature:


  • Long range
  • Strong anti-interference
  • Good diffraction
  • Stable and safely
  • Ad-hoc network


Introduction of IP mesh network:


Mesh networks, also known as wireless grid networks, are a kind of "multi-hop" networks, developed from ad-hoc networks.Each node in an ad-hoc network is mobile and can dynamically maintain connections with other nodes in any way.In the process of network evolution, wireless network is an indispensable technology. Wireless Mesh can cooperate with other networks to form a dynamic network architecture that can be continuously expanded, and the random network allows mesh nodes to organize themselves in any shape.


Unlike other wireless solutions, the IP MESH has self-managing ability, up to 128 mesh nodes working simultaneously. The COFDM IP MESH keeps adjusting itself when node working in moving condition, to select the best route for range extension and signal communication between each mesh node. What’s more, the IP MESH also has self-healing feature. When one of the node stops working, the rest of the nodes can communicate with each other directly or through one or more intermediate nodes. With high flexibility in mesh topology, the data and video can be exchanged in poin-to-point, poin-to-multipoint or multipoint-to-multipoint.


FPGA / LTE IP Mesh Baseband Board Multi-Hop Network 90Mbps 0


FPGA / LTE IP Mesh Baseband Board Multi-Hop Network 90Mbps 1




Q1: What can I buy from you?

COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.

Q2: Why should I choose you?

Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.

Q3: Do you have a minimum order quantity?

No MOQ limit, 1pc is acceptable.

Q4: Can I order 1 sample for test?

Yes, we welcome sample order, mixed samples are acceptable.

Q5: What is the product warranty?

We offer two-year-warranty and lifelong maintenance.

Q6: What is the average lead time?

5-7 working days for regular model, and 20-30 working days for customized model.

Q7: What kinds of payment methods do you accept?

We accept bank transfer, Western Union, PayPal, or cash payment.

Q8: Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.



Our Service:


  • One-stop ODM/OEM solution;
  • 24-hour technical support;
  • Lifelong maintenance (Replacement parts will be charged after a year);
  • Provide professional system design and construction;
  • You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area for over 20 years, we are the source.
