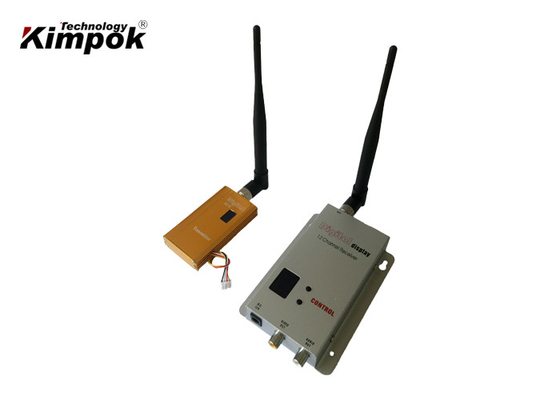

1.2Ghz Long Range Wireless Video Transmitter And Receiver For UAV FPV Drones

1.2Ghz Long Range Wireless Video Transmitter and Receiver for UAV FPV Drones

1.2Ghz 1500mW drone av transmitter and receiver Specification:

Description:

KP-A15 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 0dB  (Original small antenna) in full to the antenna, the open area to ensure the transmission 1000-3000m or so, if the raising of the high gain directional antenna, increased to 2 km away, and 10-20km LOS from air to ground. Transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.

Features:

1. Wireless transmission: no need to set up communications cable

2. Image, audio sync, color black and white compatible

3. Small size, light weight, easy to carry, good installation

4. Responsive, timely, send and receive real-time transmission

5. Using FM mode, anti-interference ability, good image quality

6. Highly integrated, stable and reliable transmission distance

7. DC power supply, easy to use.

8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

Installing:

A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack

B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation

C. Set the same channel with transmitter and receiver

FAQ:

Q1: What can I buy from you?

COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.

Q2: Why should I choose you?

Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.

Q3: Do you have a minimum order quantity?

No MOQ limit, 1pc is acceptable.

Q4: What kind of product service can I have?

OEM & ODM service.

Q5: What is the product warranty?

We offer two-year-warranty and lifelong maintenance.

Q6: What is the average lead time?

5-7 working days for regular model, and 20-30 working days for customized model.

Q7: What kinds of payment methods do you accept?

We accept bank transfer, Western Union, PayPal, or cash payment.

Q8: Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.

Our Service:

• One-stop ODM/OEM solution;
• 24-hour technical support;
• Lifelong maintenance (Replacement parts will be charged after a year);
• Provide professional system design and construction;
• You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
