Product Details:
|
| Product Name: | Long Distance Wireless Av Transmitter | Number Of Channels: | 8 Channels |
|---|---|---|---|
| Transmit Power: | 8 Watt | Frequency: | 1.2GHz; 1.3Ghz |
| System: | PAL/NTSC | Transmit Distance: | 100km LOS From Air To Ground |
| High Light: | 1.2 Ghz Analog TV Transmitter,Wireless Transmission Analog TV Transmitter |
||

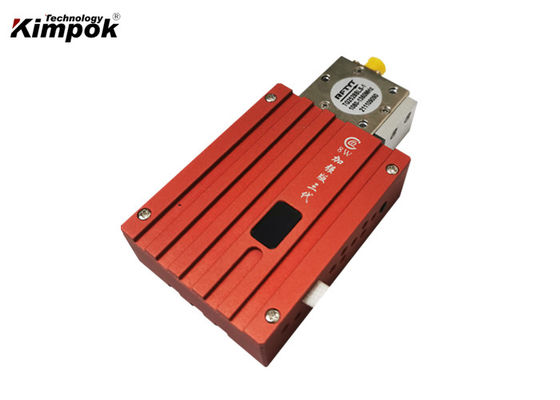

1.2 Ghz Analog TV Transmitter 8000mW Wireless Transmission DC 12V
Wireless AV Transmitter Specification:
| Product name | Analog wireless AV transmitter |
| Model | KP-A8H |
| Input | DC 12V |
| Current | 700mA |
| Frequency | 1.2GHz, 1.3GHz |
| Number of channels | 8 channels |
| Frequency Bands | 1.080Ghz; 1.120Ghz; 1.160Ghz; 1.200Ghz; 1.240Ghz; 1.280Ghz; 1.340Mhz; 1.380Mhz |
| Transmit Power | 8000mW |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Distance | 10~20km LOS, 3km NLOS on ground |
| Temperature | -10℃ ~ +50℃ |
| Transmitter Weight | 200g |
| Dimensions (L * W * H) |
95*50*20mm. |
| Accessories | transmitter, antenna, AV cable |
Wireless AV Video Specification:
| Product name | Analog wireless AV receiver |
| Input | DC 12V |
| Current | 260mA |
| Frequency | 1.2GHz, 1.3GHz |
| Number of channels | 12 channels |
| Frequency Bands | 0.910Ghz; 0.980Ghz; 1.010Ghz; 1.040Ghz; 1.080Ghz; 1.120Ghz; 1.160Ghz; 1.200Ghz; 1.240Ghz; 1.280Ghz; 1.340Mhz; 1.380Mhz |
| Weight | 115g |
| Dimension | 115*80*21mm |
| Accessories | receiverr, antenna, AV cable |
Analog Video Transmitter Receiver Description:
KP-A8H transmitter and receiver is designed for industrial long-range wireless transmission applications that utilize 1.2Ghz frequency.
The transmittr offer an open field range of up to 20km with the included antennas. Even greater range can be achieved using receive-side directional antennas such as Yagi’s and flat panel antennas. (if the working environment is Non-line-of-sight, transmission distance is case by case). And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.
It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.
Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC Supply Input, easy to use.
8. External Whip Antenna Included
9. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.
