Product Details:
|
| Product Name: | Fpv Wireless Video Transmitter | Power: | 12V DC |
|---|---|---|---|
| Transmit Power: | 1000mW | Frequency: | 1.2GHz; 1.3Ghz |
| System: | PAL/NTSC | Transmit Distance: | 10km LOS From Air To Ground |

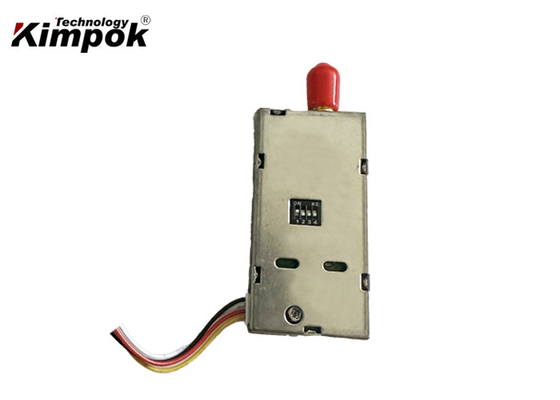

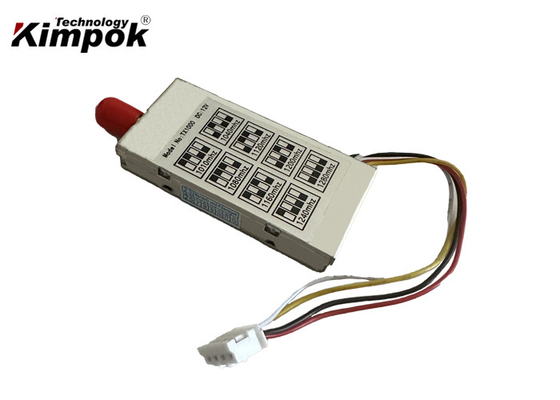

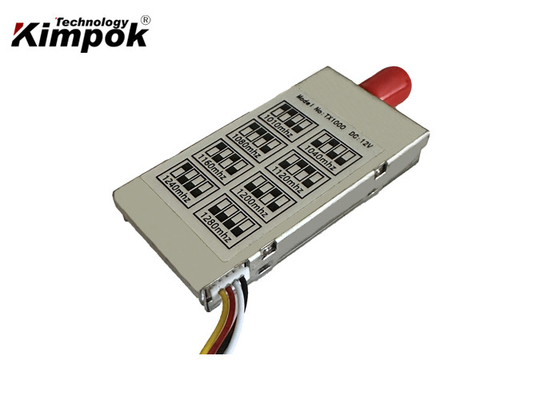

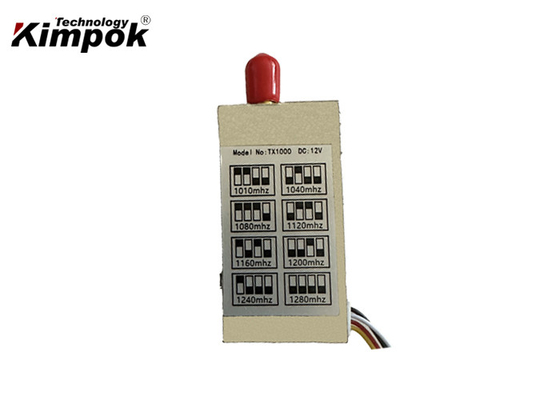

1.2G FPV Drones Video Transmitter 10km AV Wireless Sender Real-time Monitoring
1.2Ghz Drones Video Link Specification:
| Product name | Analog fpv wireless AV transmitter and receiver |
| Model | TX1000 |
| Input | DC 12V |
| Current | 200mA |
| Frequency | 1.2GHz, 1.3GHz |
| Number of channels | 8 channels |
| Frequency Bands | 1.080Ghz; 1.120Ghz; 1.160Ghz; 1.200Ghz; 1.240Ghz; 1.280Ghz; 1.340Mhz; 1.380Mhz |
| Transmit Power | 1000mW |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Distance | 5~10km LOS |
| Overall Configuration | Transmitter, receiver, AV cable, antenna |
| Temperature | -10℃ ~ +50℃ |
| Transmitter Weight | 100g |
| Receiver Weight | 120g |
| Dimensions (L * W * H) |
Transmitter:46*30*10mm. Receiver:116*80*21mm |
Analog Video Transmitter Receiver Description:
TX1000 analog signal transmitter and receiver is designed for industrial long-range wireless av transmission applications that utilize 1.2Ghz frequency.
The transmittr offer an open field range of up to 10km with the included antennas. Even greater range can be achieved using receive-side directional antennas such as Yagi’s and flat panel antennas. (if the working environment is Non-line-of-sight, transmission distance is case by case). And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. It has 8 channels optional. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.
It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.
Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC Supply Input, easy to use.
8. External Whip Antenna Included
9. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
