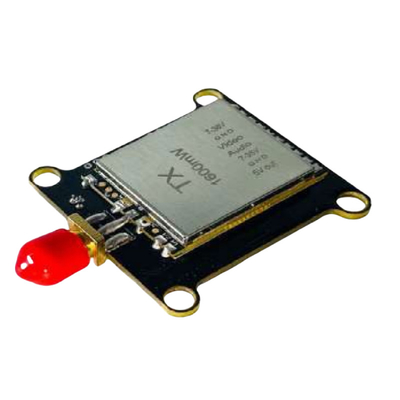

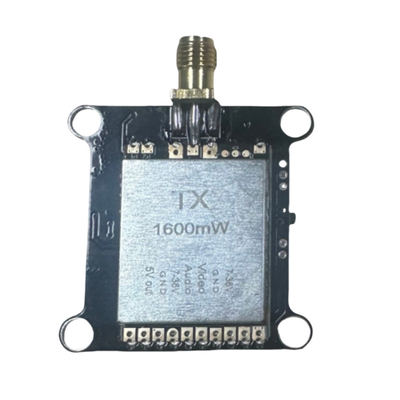

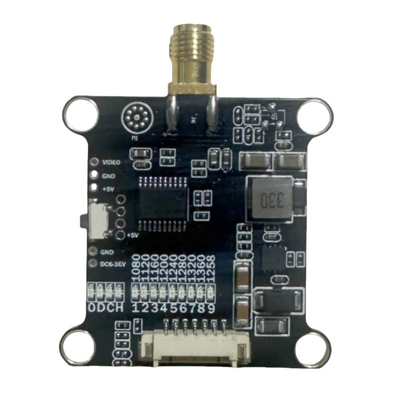

1.2Ghz FPV Drone Wireless Video Link Transmitter 1.2G 1.6W RF Power VTX 8 Channels
Description:
I :Button control and LED light
1. 4 green lights represent RF power:0. 1mW(0)/25mW(D)/200mW(C)/1600mW(H), Boot default is 0. 1mW. Long press of the button could switch into next frequency. Cycle the operation,every long press means the frequency switch and the light on.
Note:the frequency needs to be adjusted every time the power cut off
2. 8red lights represent band ,short press could switch into nextband, this operation can be cycled. Every short press means the band switch and the light on.
Note:the operation has the setting memory, the system could save the current band when the power cut off
Specifications:
| Item |
SPEC. |
| Frequency band |
1120-1360Mhz |
| Channel |
8 channels |
| Channel Frequency |
1120/1160/1200/1240/1280/1320/1360/1258(MHz) |
| RF power |
0. 1mW / 25mW / 200mW / 1600mW |
| Audio Sub-carrier |
6.5MHz/6.0MHz |
| Modulation type |
FM |
| Frequency control |
PLL |
| Audio sub-carrier control |
PLL |
| Frequency Stability |
±100KHz (Typ.) |
| Frequency precision |
±200KHz (Typ.) |
| A/V (Ratio) |
-26±2dB |
| S/N(Fo±3MHz) |
>70d Bc |
| Channel Carrier error |
1dB |
| Antenna Port |
50 Ohms |
| Input format |
NTSC or PAL |
| Video input level |
1V±0.2Vp-p type |
| Audio input level |
1V±0.2Vp-p type |
| Operating Temperature |
-10℃~+60℃ |
| Input power supply |
DC 7-36V |
| Output voltage |
DC 7-36V ; DC5V |
| Profile dimension |
45.5mm(L)*35.8mm(W)*8.4mm(H) |
| Installation hole position |
30.5mm x 30.5mm |
| Net weight |
10g
|
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
Our Service:
- One-stop ODM/OEM solution;
- 24-hour technical support;
- Lifelong maintenance (Replacement parts will be charged after a year);
- Provide professional system design and construction;
- You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
