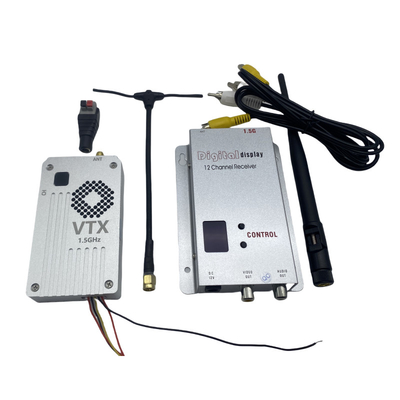

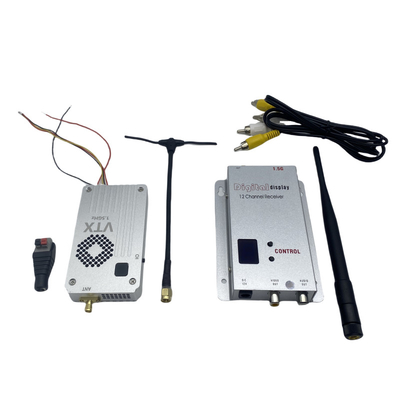

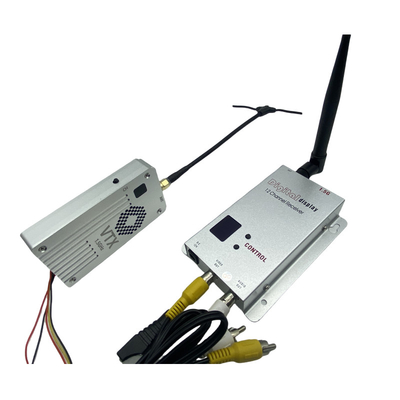

1.5G 5W FPV Wireless Video Transmitter and Receiver 20km Long Range VTX VRX RC Racing
Features:
- Wireless transmission: no need to set up communications cable
- Image, audio sync, color black and white compatible
- Small size, light weight, easy to carry, good installation
- Responsive, timely, send and receive real-time transmission
- Using FM mode, anti-interference ability, good image quality
- Highly integrated, stable and reliable transmission distance
- DC power supply, easy to use.
- Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and sepcial project.

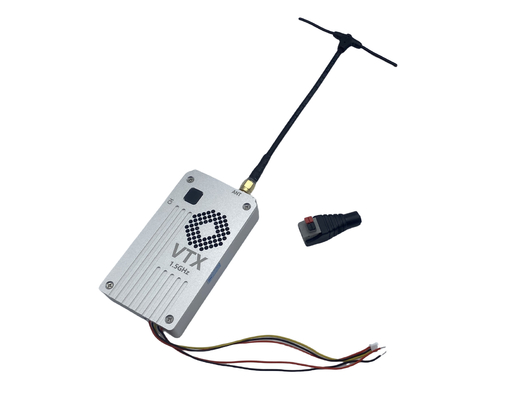

Vtx specification:
| Product name |
Analog video transmitter |
| Voltage |
Dc 24v |
| Current |
1.3a |
| Modulation |
Fm |
| Frequency |
1500mhz |
| Channels |
8 channels |
| Frequency band |
1505Mhz, 1530Mhz, 1555Mhz, 1580Mhz,
1605Mhz, 1630Mhz, 1655Mhz, 1680Mhz
|
| Transmit power |
5watt |
| Video output |
1 vp-p (fm) |
| Temperature |
-10℃ ~ +50℃ |
| Antenna port |
Smafemale |
| Transmitter weight |
104g |
| Dimensions |
98*55*18mm (without antenna) |
VRX Specification:
| Voltage |
DC 12V |
| Receiving sensitivity |
-85DB |
| Modulation |
FM |
| Frequency |
1.5Ghz |
| Channels |
12 channels |
| Frequency band |
1.5Ghz(1405M-1680M) |
| Video Output |
1 Vp-p(FM) |
| Audio Output |
1 Vp-p(FM) |
| Temperature |
-10℃ ~ +50℃ |
| Antenna port |
SMA |
| Transmitter Weight |
116g |
| Dimensions (L * W * H) |
130*80*20mm |
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
Our Service:
- One-stop ODM/OEM solution;
- 24-hour technical support;
- Lifelong maintenance (Replacement parts will be charged after a year);
- Provide professional system design and construction;
- You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
