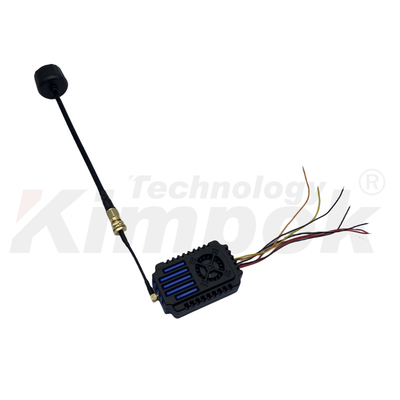

3.3Ghz 3.5W FPV Analog Video Transmitter and Receiver 24CH Long Range Wireless Video TX VRX

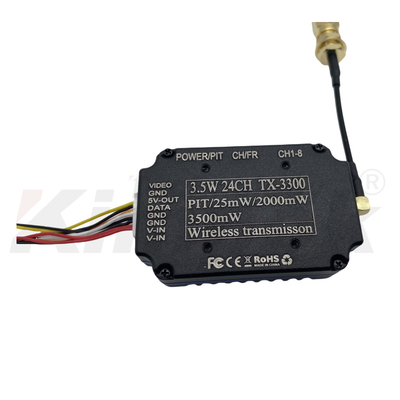

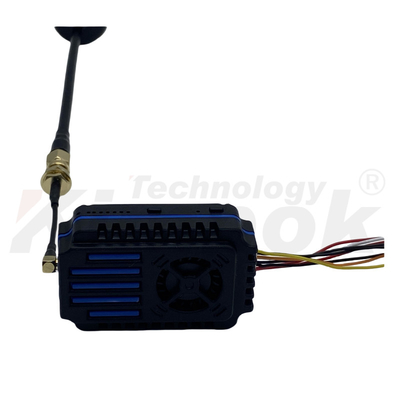

VTX Specification:
| Item |
VTX |
| Power Supply |
DC7V-36V |
| Power |
25mW,2000mW,3500mW |
| Control Protocol |
IRC |
| Dimension |
53.5mm*32.5mm*15.5mm |
| Weight |
24.5g |

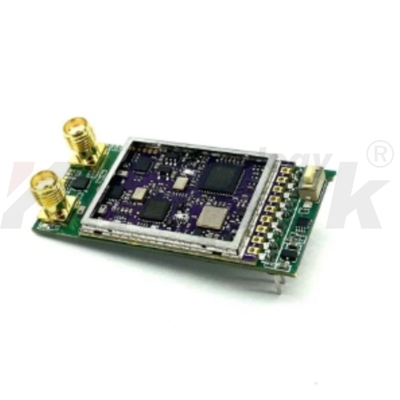

VRX Specification:
| Modulate |
Wideband FM Modulate |
| Characteristics |
Value |
Units |
| Min. |
TYP. |
Max. |
|
| Input Voltage |
3.5 |
5 |
6 |
V |
| Operating Temperature |
-10 |
50 |
65 |
°C |
| Receive Sensitivity |
-92 |
-95 |
-98 |
dBm |
| Frequency Stability |
-100 |
-- |
+100 |
ppm |
| Input Impedance |
-- |
50 |
-- |
Ω |
| Input Standing Wave Ratio |
-- |
2: 1 |
3: 1 |
|
| Video Output Impedance |
-- |
75 |
-- |
Ω |
| Signal-to-Noise Ratio |
-- |
38 |
-- |
dB |
| Frequency Response |
50Hz ~ 6MHz(±5dB) |
| Antenna Connector |
SMA(inner hole) |
| Weight |
12.5 g |
| Dimensions(LxWxH) |
70*26*13 mm |
Frequency:
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
Our Service:
- One-stop ODM/OEM solution;
- 24-hour technical support;
- Lifelong maintenance (Replacement parts will be charged after a year);
- Provide professional system design and construction;
- You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
