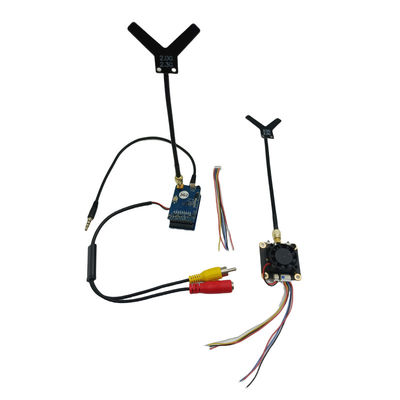

2.2Ghz 1.6W FPV Drone Video Transmitter Receiver 25mW 200mW 1600mW VTX Long-distance Support IRC

2.2Ghz 1.6W FPV Drone Video Transmitter Receiver 25mW 200mW 1600mW VTX Long-distance Support IRC

Description:

Report Item / Suspicious Activity
Main Features of VTX
Channel 8CH;
Control protocol IRC Tramp, supporting OSD parameter tuning;
Power: PIT 25mW, 200mW, 1600mW;
Efficient DC/DC power supply supports 7-36V;
Supports 5V voltage output;
Support installation of flying towers (30.5 * 30.5MM/M3 hole position)

Product parameters

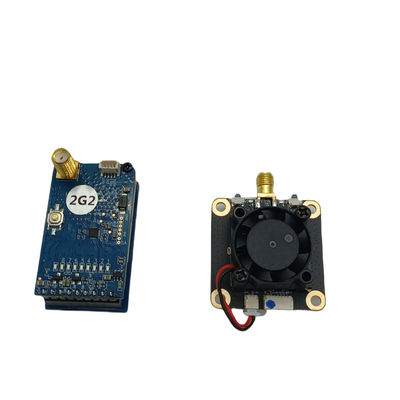

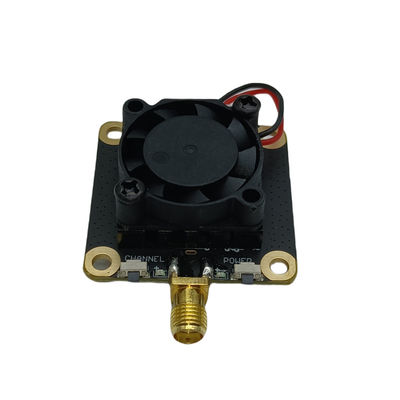

Transmitter (sky end):
Input voltage: 7-36V DC (2-6S)
Output voltage: 5V/0.5A
Weight: 22g (excluding antenna)
Dimensions (length, width, and height): 37mm * 46 * mm * 17.5mm (including SMA head and fan)
Video format: PAL/NTSC
Number of channels: 8 channels
Channel selection: Frequency adjustment button: Short press to switch frequency
Transmission frequency: CH1 2000MHz CH2 2040MHz. CH3 2080MHz. CH4 2120MHz
CH5 2160MHz CH6 2200MHz CH7 2240MHz CH8 2280MHz
Transmission power: 33dBm ± 1dBm (MAX)
Power adjustment: Power adjustment button, short press to switch
Power output: Three levels, 25mW, 200mW, 1600mW;
Antenna interface: SMA head external tooth internal hole
Modulation type: FM

Main Features of VRX
Channel 8CH;
Supports direct insertion of VR headset displays such as FatShark and Skyzone, as well as connection to analog displays;
High sensitivity reception -97dBm;
Efficient DC/DC power supply supports 7-36V;;
Supports 5V voltage output;
Touch the switch to quickly switch channels;

Product parameters

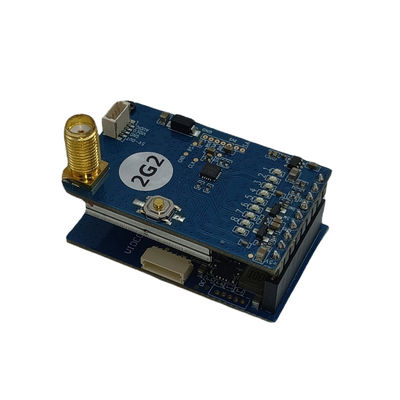

Receiver (ground end):
Input voltage: 7-36V DC (2-6S)
Output voltage: 5V/0.5A
Video format: PAL/NTSC
Number of channels: 8 channels
Channel selection: Short press to switch frequency points
Receiving frequency: CH1 2000MHz CH2 2040MHz CH3 2080MHz CH4 2120MHz
CH5 2160MHz CH6 2200MHz CH7 2240MHz CH8 2280zMH
Sensitivity: -97dBm (MAX)
Antenna interface: SMA (external tooth cavity)
Modulation type: FM

Support and Services:

Our Analog Video Transmitter product technical support team is dedicated to providing efficient and effective assistance to our customers. We offer a range of support services, including troubleshooting assistance, product installation guidance, and product documentation. Our team is available to answer any technical questions you may have about our product, and we strive to provide timely and accurate solutions to any issues you may encounter. In addition, we offer a variety of services to help you get the most out of your Analog Video Transmitter, including product training and consulting services. Our goal is to ensure that you have a positive experience with our product and that it meets your needs and expectations.

Packing and Shipping:

Product Packaging:

The Analog Video Transmitter is carefully packaged to ensure its safety during shipping. The product comes in a sturdy box with foam inserts to protect it from any damage that may occur during transit. The box is clearly labeled with the product name and any handling instructions to ensure safe and proper handling.

Shipping:

We offer a variety of shipping options to meet your needs. All orders are processed within 24 hours and shipped via your selected shipping method. Standard shipping typically takes 3-5 business days, while expedited shipping can arrive in as little as 1-2 business days. We also offer international shipping to select countries. Please note that additional customs and duties fees may apply for international orders.

FAQ:

Q1: What is the brand name of this analog video transmitter?

A1: The brand name of this analog video transmitter is Kimpok Technology / OEM.

Q2: What is the model number of this analog video transmitter?

A2: The model number of this analog video transmitter is KP-T2216

Q3: What certifications does this analog video transmitter have?

A3: This analog video transmitter has CE/ROHS/FCC/SGS certifications.

Q4: What is the minimum order quantity for this analog video transmitter?

A4: The minimum order quantity for this analog video transmitter is 1 set.

Q5: What are the payment terms for this analog video transmitter?

A5: The payment terms for this analog video transmitter are T/T, PayPal or Western Union. Price is negotiable and supply ability is 3,000pcs per month. Delivery time is 3-7 days and packaging details are in export standard packing.
