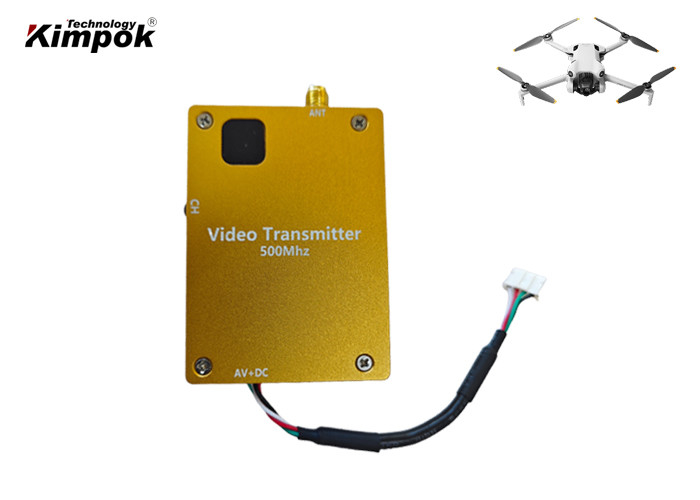

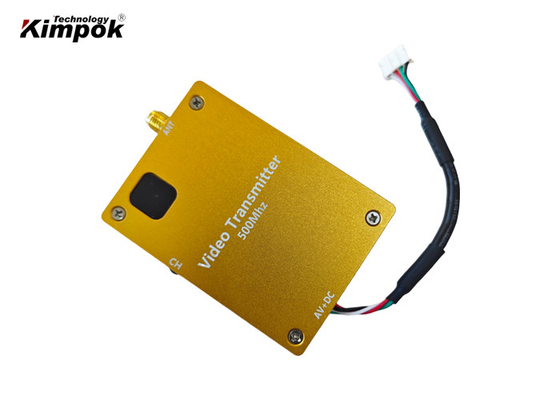

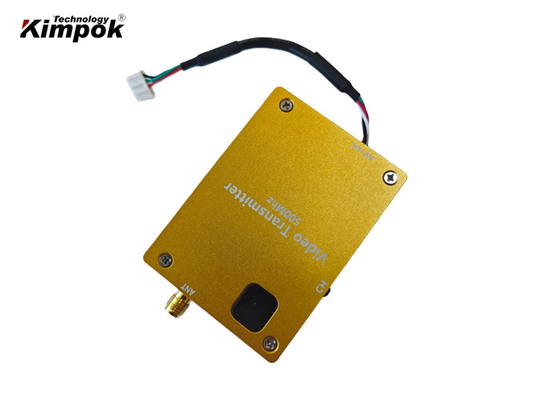

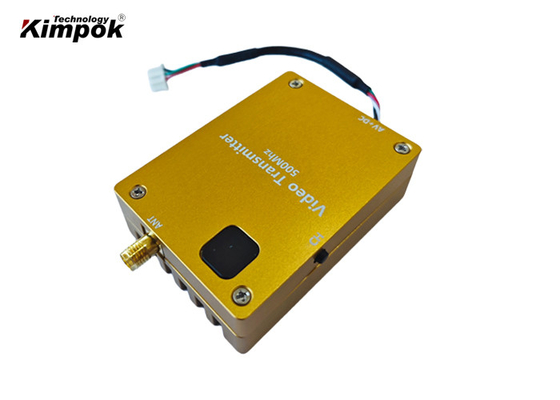

Compact Analog Video Transmitter 20~40km Drone Video Transmitter 4W
Product Description:
The Analog Video Transmitter comes with 8 channels, which ensures that you have a wide range of frequencies to choose from, enabling you to avoid interference with other pilots. This feature is essential in FPV racing, where pilots fly their drones in close proximity to each other. The product's FM modulation ensures that the signal is strong and stable, providing an uninterrupted FPV experience.
The Analog Video Transmitter is designed to transmit both audio and video signals over long distances with high accuracy. The product's 4W power output ensures that the video transmission is clear, bright, and stable. The high sensitivity receiver ensures that the video signal is clear and precise and long transmission distance.
The Analog Video Transmitter is designed specifically for FPV enthusiasts who demand high-quality and reliable equipment. The product is easy to install and operate, and it comes with a user manual that provides step-by-step instructions on how to set it up and use it. The compact design of the product makes it easy to carry around, allowing you to take it with you wherever you go.
The Long-Distance 4W VTX High Sensitivity Receiver for Audio and Video Sources RC Racing is a must-have product for any FPV enthusiast who wants to enjoy a clear and uninterrupted FPV experience. The product's innovative design, combined with its high-quality features, makes it a reliable and efficient tool for FPV racing.
Features:
Technical Parameters:
VTX Specification:
| Model number: |
KP-500TX4W |
| Voltage |
DC 12V |
| Current |
900mA |
| Modulation |
FM |
| Frequency |
300Mhz~900Mhz optional |
| Channels |
8 channels |
| Frequency band (choose one series) |
300Mhz: (300Mhz, 320Mhz, 340Mhz, 360Mhz, 380Mhz, 400Mhz, 420Mhz, 440Mhz) (customization)
400Mhz: (340Mhz,360Mhz, 380Mhz, 400Mhz, 420Mhz ,440Mhz, 460Mhz, 480Mhz) (customization)
500Mhz: (460Mhz, 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz)
600Mhz: (600Mhz, 620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz)
700Mhz: (700Mhz, 720Mhz, 740Mhz, 760Mhz, 780Mhz, 800Mhz, 820Mhz, 840Mhz)
800Mhz: (800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz) (customization)
900Mhz: (900Mhz, 920Mhz, 940Mhz, 960Mhz, 980Mhz, 1000Mhz, 1020Mhz, 1040Mhz) (customization)
|
| Transmit Power |
4 watt |
| Video Output |
1 Vp-p(FM) |
| Temperature |
-10℃ ~ +50℃ |
| Antenna port |
SMA |
| Transmitter Weight |
60g |
| Dimensions |
60*42*19mm |

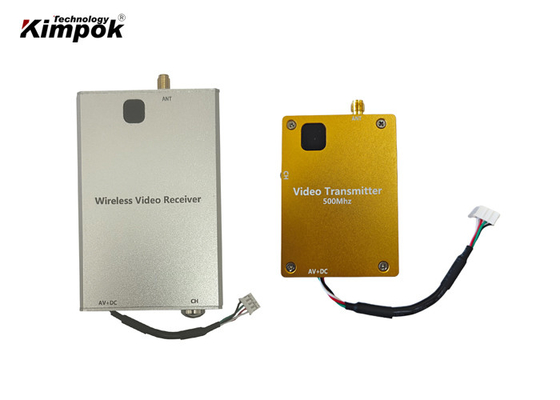

VRX Specification:
| Model number: |
KP-RX500 |
| Voltage |
DC 12V |
| Receiving sensitivity |
-85dBm |
| Modulation |
FM |
| Frequency |
300Mhz~900Mhz optional |
| Channels |
8 channels |
| Frequency band (choose one series) |
300Mhz: (300Mhz, 320Mhz, 340Mhz, 360Mhz, 380Mhz, 400Mhz, 420Mhz, 440Mhz) (customization)
400Mhz: (340Mhz,360Mhz, 380Mhz, 400Mhz, 420Mhz ,440Mhz, 460Mhz, 480Mhz) (customization)
500Mhz: (460Mhz, 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz)
600Mhz: (600Mhz, 620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz)
700Mhz: (700Mhz, 720Mhz, 740Mhz, 760Mhz, 780Mhz, 800Mhz, 820Mhz, 840Mhz)
800Mhz: (800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz) (customization)
900Mhz: (900Mhz, 920Mhz, 940Mhz, 960Mhz, 980Mhz, 1000Mhz, 1020Mhz, 1040Mhz) (customization)
|
| Video Output |
1 Vp-p(FM) |
| Temperature |
-10℃ ~ +50℃ |
| Antenna port |
SMA |
| Transmitter Weight |
40g |
| Dimensions (L * W * H) |
75*45*20mm |
This Analog Video Transmitter is suitable for FPV and UAV applications.
Applications:
Support and Services:
Our Analog Video Transmitter product comes with comprehensive technical support and services to ensure seamless operation and maximum performance. Our team of experienced technicians is available to provide assistance and guidance with installation, configuration, and troubleshooting. We also offer regular software updates and maintenance services to keep your Analog Video Transmitter up to date and functioning optimally. Additionally, we provide training sessions to help you get the most out of your product and to ensure that you have the necessary knowledge and skills to operate it effectively. Our commitment to customer satisfaction means that we are always available to answer any questions or concerns that you may have regarding our Analog Video Transmitter product.
FAQ:
Here are some frequently asked questions and answers about the Analog Video Transmitter:
Q: What is the brand name of this Analog Video Transmitter?
A: The brand name of this Analog Video Transmitter is Kimpok Technology/OEM.
Q: What is the model number of this Analog Video Transmitter?
A: The model number of this Analog Video Transmitter is KP-A4.
Q: What certifications does this Analog Video Transmitter have?
A: This Analog Video Transmitter has CE/ROHS/FCC/SGS certifications.
Q: Where is this Analog Video Transmitter manufactured?
A: This Analog Video Transmitter is manufactured in China.
Q: What is the minimum order quantity for this Analog Video Transmitter?
A: The minimum order quantity for this Analog Video Transmitter is 1 set.
Q: What is the price of this Analog Video Transmitter?
A: The price of this Analog Video Transmitter is negotiable.
Q: What are the payment terms for this Analog Video Transmitter?
A: The payment terms for this Analog Video Transmitter are T/T, PayPal or western Union.
Q: What is the supply ability of this Analog Video Transmitter?
A: The supply ability of this Analog Video Transmitter is 3,000pcs per month.
Q: What is the delivery time for this Analog Video Transmitter?
A: The delivery time for this Analog Video Transmitter is 3-7 days.
Q: What are the packaging details for this Analog Video Transmitter?
A: The packaging details for this Analog Video Transmitter are export standard packing.
