500Mhz 4W FPV Hd Digital Vtx Video Link 40km Ultra Long Range

500Mhz 4W FPV Video Link 40km VTX Ultra Long Range Wireless Video Transmitter and Receiver

Description:

This is a new wireless video transmission equipment, using frequency modulation mode and a new frequency, to avoid the use of more in the same range of 1.2Ghz/1.5Ghz/2.4Ghz wireless transmission standard frequency, more suitable for use in complex environments. The receiver sensitivity is -85dBm, and the transmitted image is clear and stable. With a ground high-gain antenna, it can transmit 2~4km in the open area of the city, and about 40km in the air-to-ground LOS with high gain antenna (the transmission distance is different in different environments, and the specific transmission distance depends on the actual working environment).

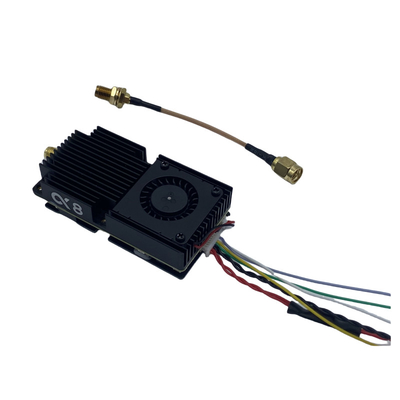

The transmitter is exquisitely crafted, made of special metal, and also has a high-speed fan, which is more conducive to heat dissipation and more suitable for long-term work.

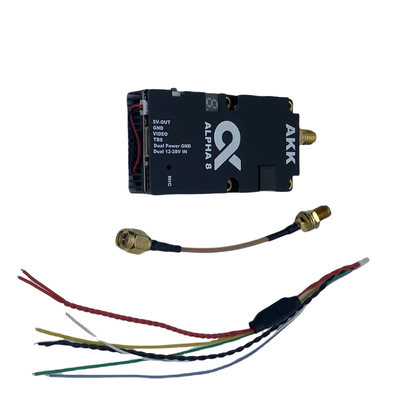

Equipped with composite connection cables for easier connection of power and camera.

VTX Specification:

Product	Analog video receiver
Voltage	DC 10V~18V
Receiving sensitivity	-85dBm
Modulation	FM
Frequency	500Mhz (optional)
Channels	8 channels
Frequency band (choose one series)	500Mhz: (490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz, 620Mhz)
Video Output	1 Vp-p(FM)
Temperature	-10℃ ~ +50℃
Antenna port	SMA female
Weight	83g
Dimensions	83*68*15mm (antenna port not included)

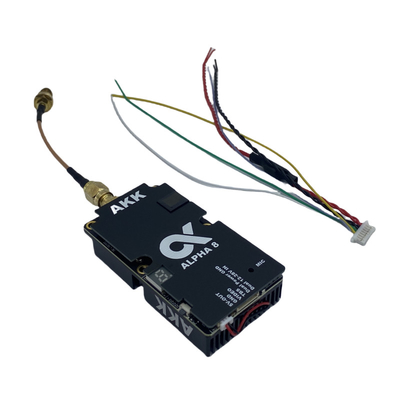

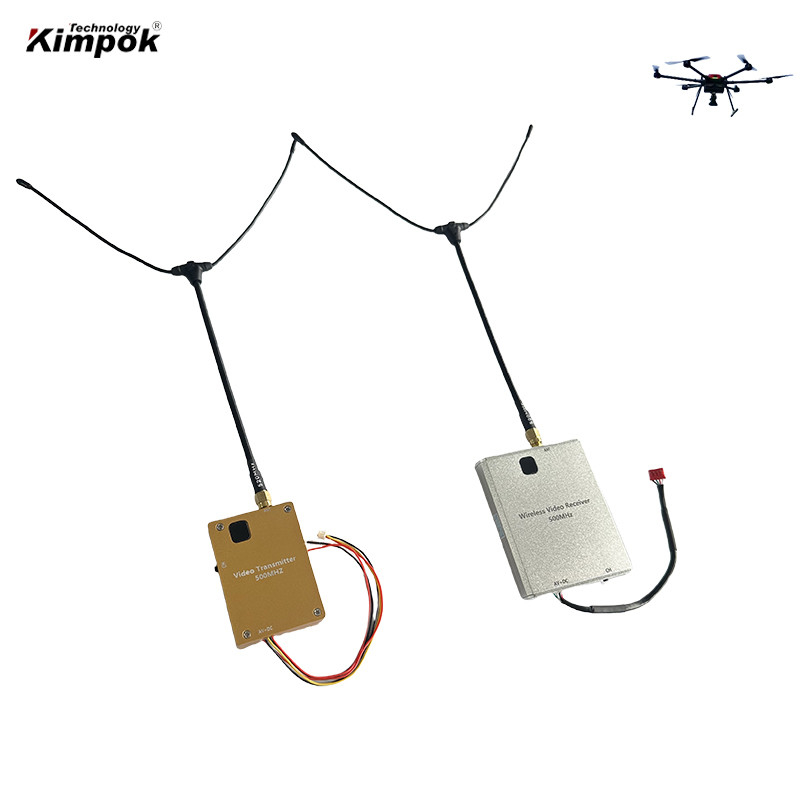

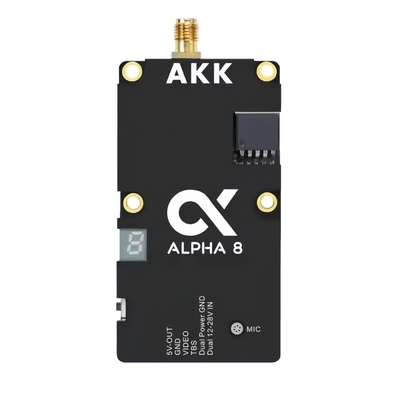

Picture:
