3.3GHz 4W Long Range Fpv Vtx Wireless Video Transmitter And Receiver Video Sender Graphic Transmission

FPV 3.3GHz 4W Video Sender Graphic transmission Wireless Video Transmitter and Receiver

Product Description:

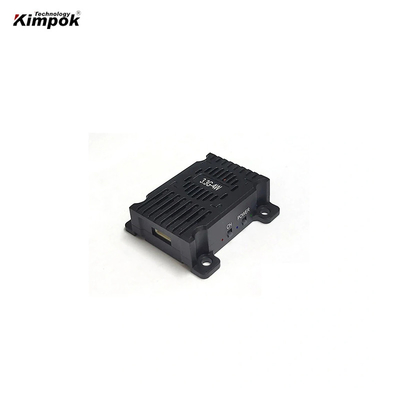

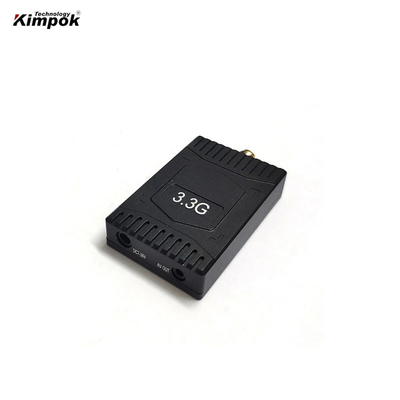

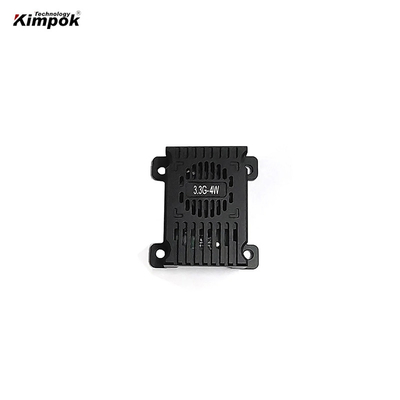

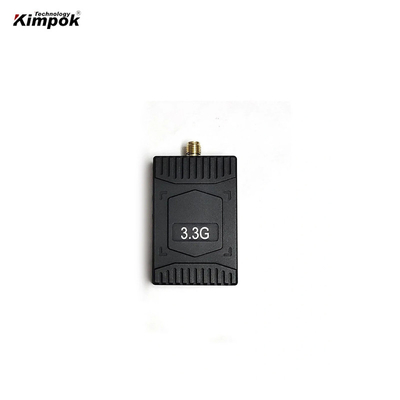

This Analog Video Receiver can efficiently receive video reaches up to 3.3Ghz, making it ideal for use in unmanned aerial vehicles (UAVs) and other remote applications. The device is designed to use in extreme temperature conditions, ranging from -10 ° C to +50 ° C, ensuring reliable and consistent performance in any environment.

Analog video transmitters are equipped with 12V DC power and are easy to install and use, providing a wide range of options for transmitting video signals.

Whether you're looking to transmit video signals for surveillance, security, or entertainment purposes, the Analog Video Transmitter is the perfect equipment for the job. Its compact and lightweight design makes it easy to carry and install, while its powerful performance ensures that you get clear and high-quality video signals every time.

VTX Specification:

Model number:	KP-33RX
Voltage	DC 12V
Current	600mA
Modulation	FM
Frequency	3.3Ghz
Channels	16 channels
Video Output	1 Vp-p(FM)
Temperature	-10℃ ~ +50℃
Antenna port	SMA
Dimensions	50*32*11mm (antenna port not included )



VRX Specification:



Model number:	KP-33RX
Voltage	DC 12V
Current	600mA
Modulation	FM
Frequency	3.3Ghz
Channels	16 channels
Video Output	1 Vp-p(FM)
Temperature	-10℃ ~ +50℃
Antenna port	SMA
Dimensions	50*32*11mm (antenna port not included )
