Product Details:
|
| Power: | DC12V/1.5A | RF Bandwidth: | 1/2/4/8MHz |
|---|---|---|---|
| Transfer Rate: | 2x30 Mbit/s Uplink And Downlink | Encryption: | AES 128/256 Bits |
| Ethernet: | Standard RJ45 Port *2 | Weight: | 527g |
| High Light: | UAV COFDM IP Transmitter,Mini COFDM IP Transmitter,RJ45 Mini COFDM Transmitter |
||
Mini RJ45 COFDM IP Transceiver for UAV / Robot Duplex IP Video Data Transmitter RS232
Description:
FDD (frequency division duplexing) is a new type of full duplx communication technology used in mobile communication systems, uses two separate channels for uplink and downlink transmission. KP-FDD2W is a COFDM modulation Network IP radios with 2W RF power output. As its lightweight and small size that meets various drones and robotic required for robust long range video and data control over IP camcorder or Computer connection. It's also with serial ports, RS232 with TTL protocol for remote radio link, like drone telemetry downlink, and command signal uplink controlling, or other wireless data radio communication.
Feature:
Specifications:
| Power supply | DC12V/1.5A |
| TX output frequency | 555MHz (can be customized 300-3300MHz),step in 1MHz |
| RX output frequency | 595MHz (can be customized 300-3300MHz),step in 1MHz |
| RF bandwidth | 1/2/4/8MHz |
| RF power output | 33dBm / 2W |
| Encryption/decryption mode | AES128 bits(user-defined password) |
| Modulation | COFDM 2K |
| Transfer rate | 2x30 Mbit/s uplink and downlink |

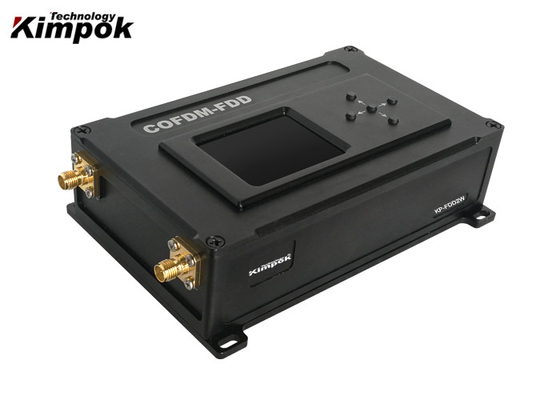

| RF connector | SMA type *2 |

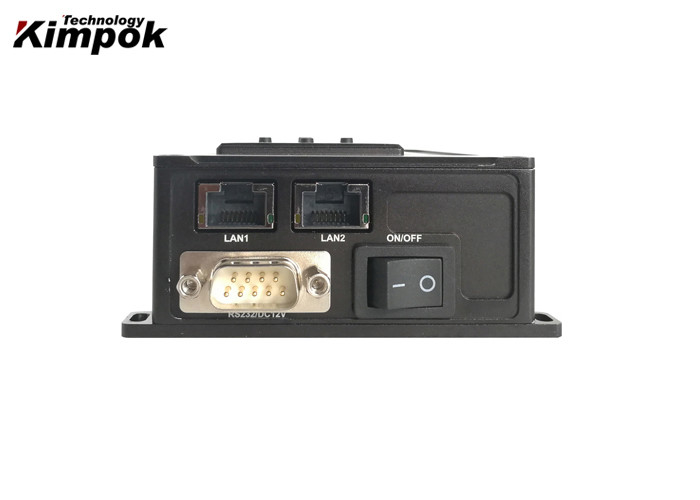

| Ethernet | Standard RJ45 port *2 |
| Serial port | RS232 serial port |
| Baud rate | 115200bps maximum |
| Two way audio | Aviation plug |

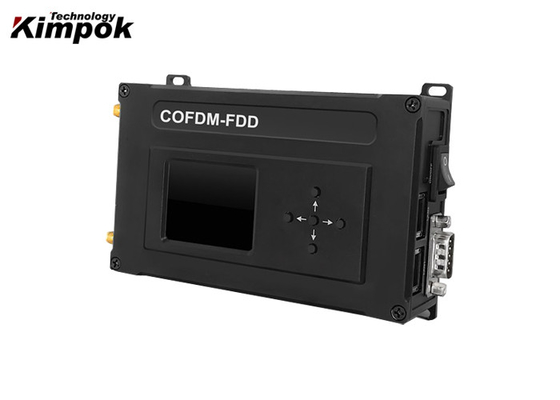

| LCD panel with keypad | Easy to set the related parameters |
| Dimension | 131x92x39mm |
| Weight | 527g |
| Transmit distance | up to 50km from Drones to ground station 2km NLOS for ground level communication |
