Product Details:
|
| Modulation: | COFDM | RF Power: | 2 Watt |
|---|---|---|---|
| Video Compression: | H.265/H.264 | Encryption: | AES 128/256 Bits |
| Data Input: | RS232 | Video Input: | AHD/HDM-I/SDI |
| High Light: | Robot COFDM Video Transmitter,UGV COFDM Video Transmitter,RS232 UAV Video Transmitter |
||

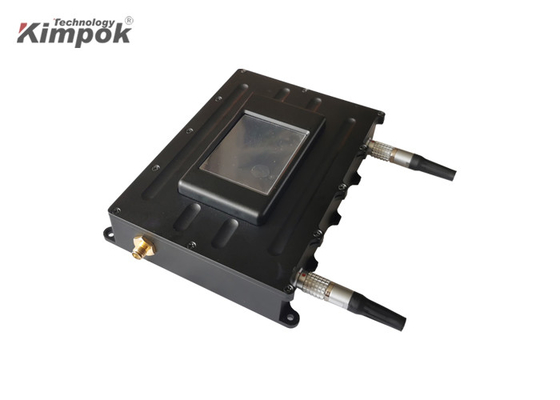

Low Delay COFDM Video Transmitter with AHD Video and RS232 Serial for Robot / UGV / UAV
COFDM Transmitter Introduction:
KP-HDT2W 1080P HD transmitter is a powerful HD transmission system, using the core of mobile communication technology COFDM (multi-carrier modulation technique), which can transmit good quality and stable full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. Support full HD 1080P H.264 encoding format and HD input as well support stereo balance audio input and narrowband transmission system.
Robot Transmitter Features:
Specification:
| Voltage | DC11V~DC16V |
| Current | ≤1.1A/DC12.5V |
|
Video Input
|
AV: 3.5mm port, connect to standard resolution analog video signal |
| HDM-I/CVBS: support HD1080P,720P,576,480; | |
| Frequency | 300mHz-4400mHz (optional) |
| Bandwidth | 2/2.5/4/8MHz(adjustable) |
| Output power | 2 watt (adjustable) |
| Data encryption | AES 128bit (user-defined password) |
| Modulation | COFDM |
| FEC | 1/2, 2/3, 3/4, 7/8 |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| Video Compression | H.265/H.264/MPEG-4 |
| Standard Video Format | PAL/NTSC (auto adaptation) |
| Parameter control method | Set the related parameters through the control panel |
| RF Interface | SMA |
| Working temperature | -20℃~75℃ |
| Transmission distance | 1-40km max LOS (on air); 1-2km on ground station |
| Dimension | 132*90*26mm |
| Weight | 420g |
